Product Details:
|
| Highlight: | 230kg Diesel Scissor Lift,7.8m Diesel Scissor Lift,CE Scissor Lift Diesel |
||
|---|---|---|---|

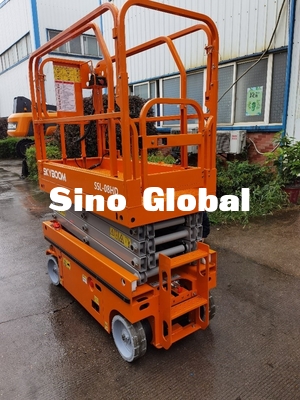

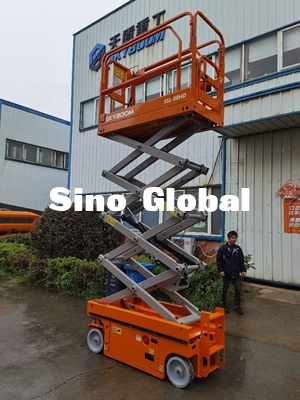

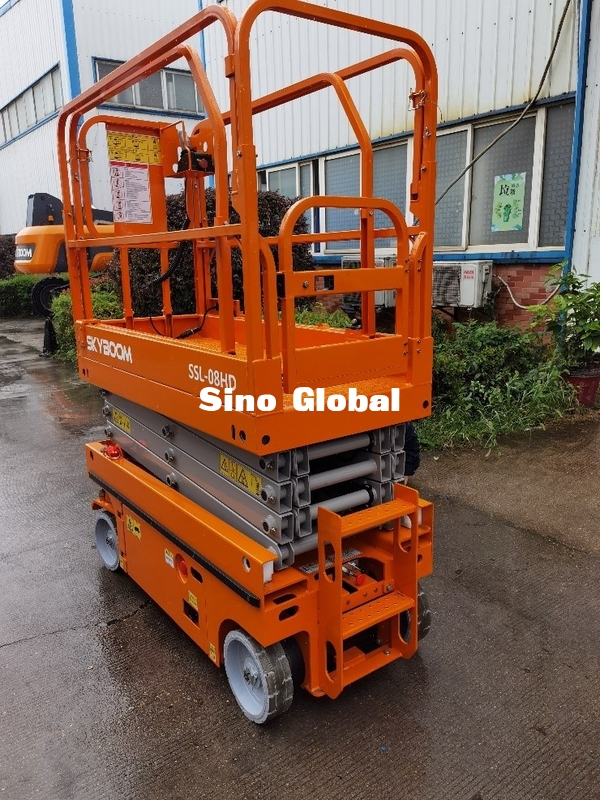

Skyboom Scissor Lift
| Model | SSL-08HD |
| Working height maximum(A) | 7.8m |
| Platform height maximum(B) | 5.8m |
| Overall length | 1.85m |
| Overall width | 0.8m |
| Height (rails up) | 2.22m |
| Height (rails down) | 1.85m |
| Platform size (L*W) | 1.67m×0.74m |
| Platform extension size | 0.9m |
| Wheel base | 1.36m |
| Ground clearance (stowed) | 0.09m |
| Ground clearance (raised) | 0.02m |
| Load capacity | 230kg |
| Extension platform load capacity | 113kg |
| Travel speed (stowed) | 3.5km/h |
| Travel speed (raised) | 0.8km/h |
| Gradeability ( stowed) | 25% |
| Turning radius (inside) | 0 |
| Turning radius (outside) | 2.22m |
| Working slope maximum | 3° |
| Tyres | ￠305×100mm |
| Drive & lifting motor | 24V/3.5KW |
| Battery | 4*6v/225Ah |
| Integrated charger | 24V/25A |
| Weight | 1490kg |
