Product Details:
|
| Brand: | Sany | Chassis Brand: | Mercedes Benz Actros 4141 |
|---|---|---|---|
| Engine Model: | OM501LA.Ⅳ/3 | Emission Standard: | Euro4/11.946L |
| Max Torque(N·m/rpm): | 2059/1800 | GVW (Kg): | 40000 |
| Overall Dimension(mm): | 12600*2500*3990 | Vertical Reach: | 46m/4 Section |
| Pressure (Low/High-pressure): | 8.5/12Mpa | ||
| Highlight: | 12Mpa Used Concrete Pump Trucks,Euro4 Used Concrete Pump Trucks |
||

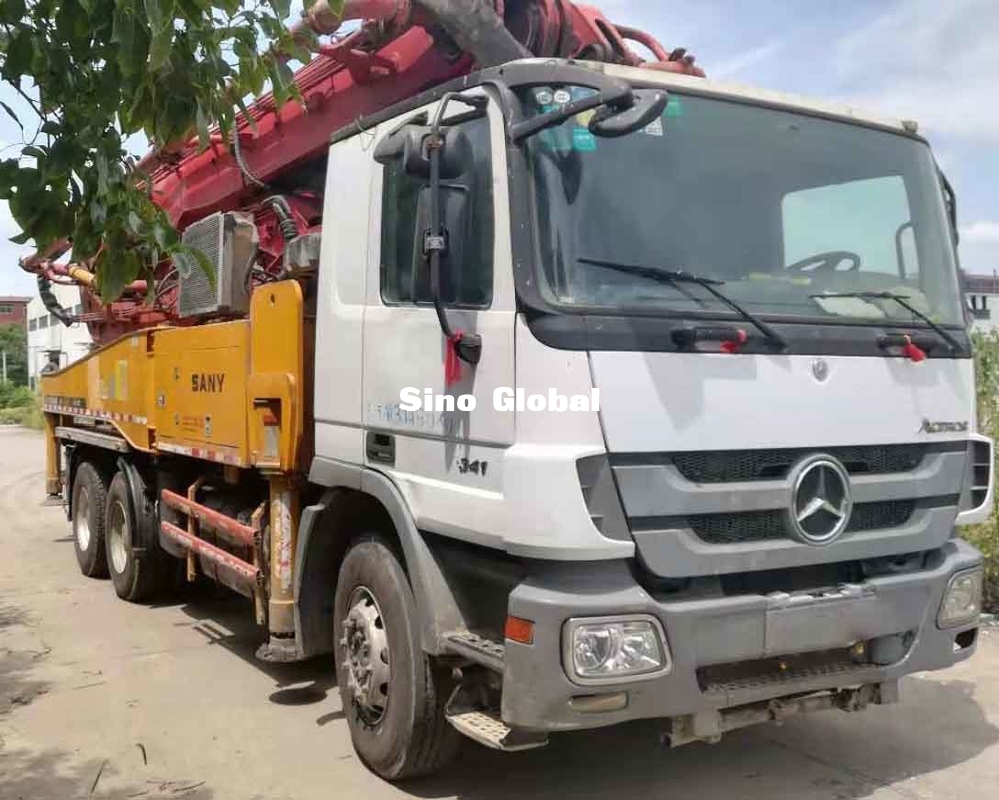

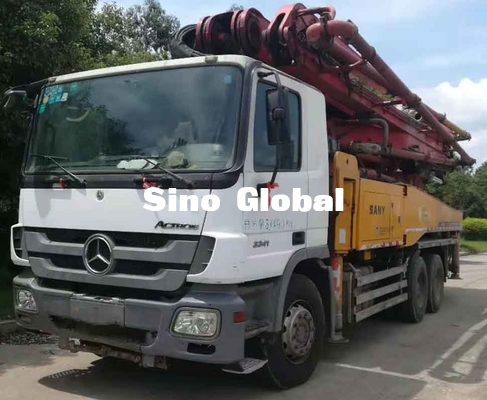

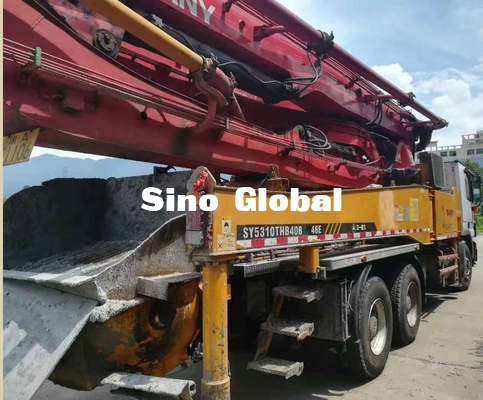

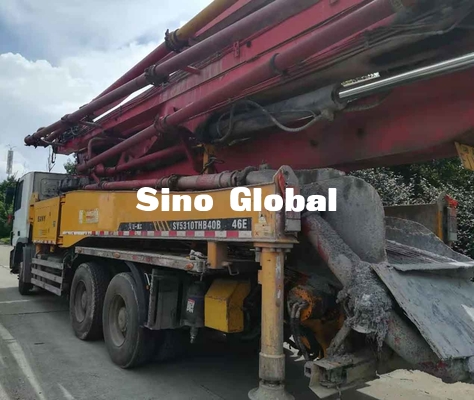

Used Sany 46M Concrete Pump Truck with Mercedes Benz Model 2013
| Brand | Sany | |
| Chassis Brand | Mercedes Benz Actros 4141 | |
| Model | SY5310THB40B 46E | |
| Released date | 2013 | |
| Chassis | Cabin | Actros 4141 |
| Drive mode | 8*4 | |
| Engine model | OM501LA.Ⅳ/3 | |
| Emissionstandard | Euro4/11.946L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2059/1800 | |
| Transmission model | RTLO16918B 18 forward 4 reverse |
|
| Rear axle: ratio/loading capacity | V Rod Left Rear/23.4 tons | |
| Braking system | Full air, dual circuit | |
| Wheelbase(mm) | 1700+4600+1310 | |
| Tire | 315/80R22.5 | |
| GVW (Kg) | 40000 | |
| Overall dimension(mm) | 12600*2500*3990 | |
| Boom&Pump system | Vertical reach | 46m/4 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 140/100m³/h | |
| Pressure (Low/High-pressure) | 8.5/12Mpa | |
