Product Details:
|
| Model: | SY53313THB 46 | Released Date: | 2012 |
|---|---|---|---|
| Cabin: | Isuzu CYH51Y | GVW (Kg): | 37820 |
| Rear Axle: Ratio/loading Capacity: | 24.8 Tons | End Hose(L*D): | 3000*125mm |
| Pipe Size: | 125mm | Wheelbase(mm): | 1850+4605+1310 |
| High Light: | Used Sany Concrete Pump Truck,24.8 Tons Used Sany Concrete Pump Truck,46 Meter Used sany pump truck |
||

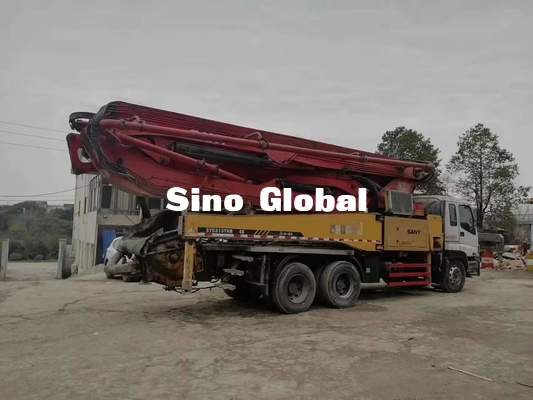

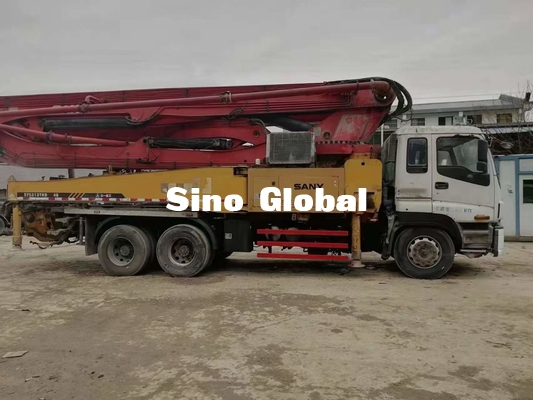

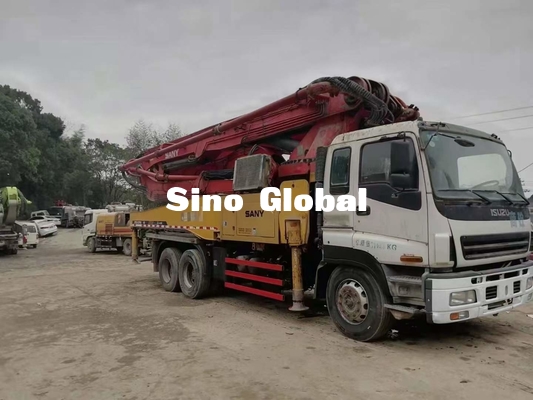

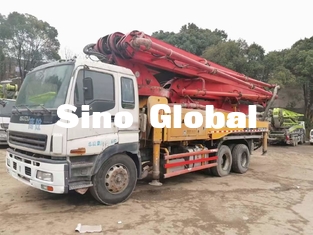

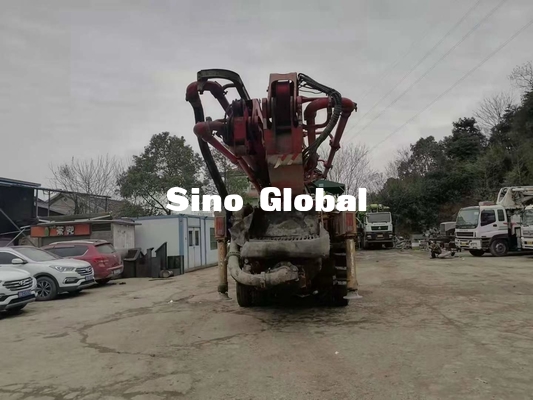

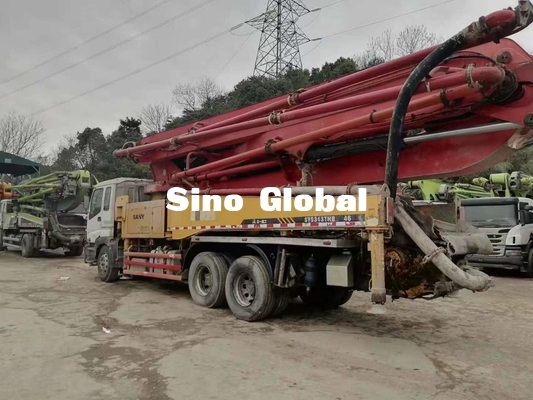

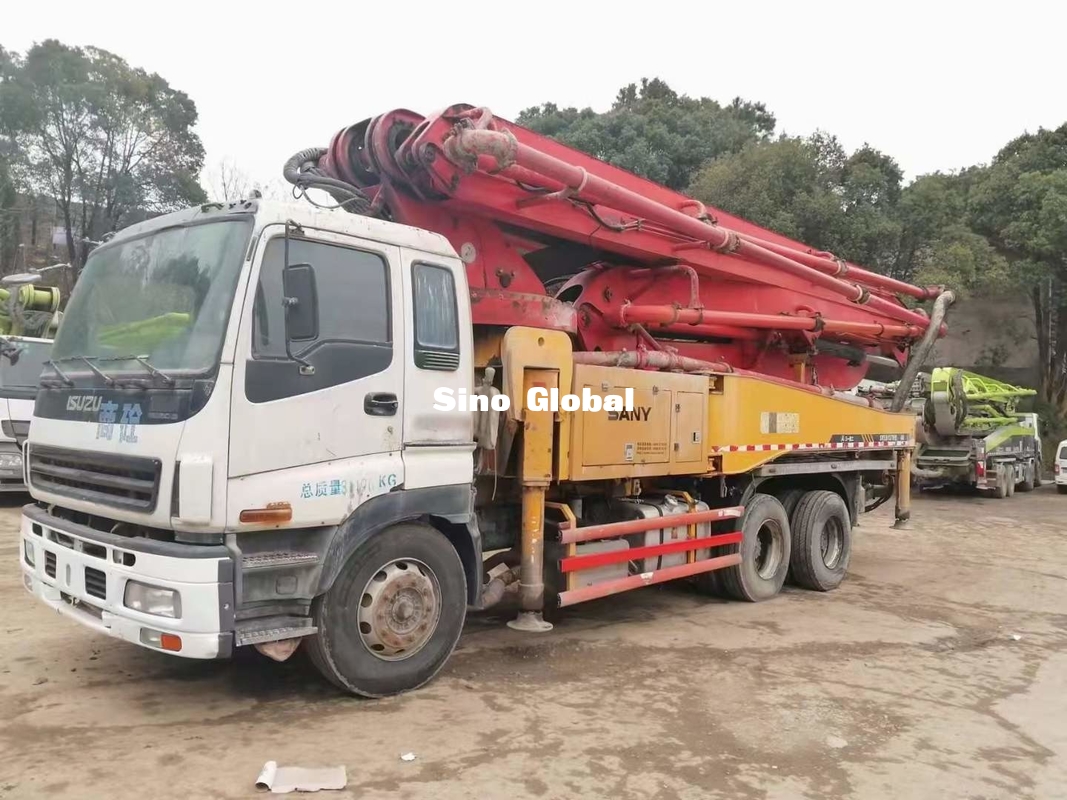

Used Sany 46M Concrete Pump Truck with Isuzu Model 2012
| Brand | Sany | |
| Chassis Brand | Isuzu | |
| Model | SY53313THB 46 | |
| Released date | 2012 | |
| Chassis | Cabin | Isuzu CYH51Y |
| Drive mode | 8*4 | |
| Engine model | Isuzu6WF1D | |
| Emissionstandard | Euro3/14.256L | |
| Max output power(Kw/rpm) | 287/1800 | |
| Max torque(N·m) | 1863 | |
| Rear axle: ratio/loading capacity | 24.8 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 1850+4605+1310 | |
| Tire | 295/80R22.5 | |
| GVW (Kg) | 37820 | |
| Overall dimension(mm) | 12600*2500*3990 | |
| Boom & Pump system | Vertical reach | 46m/4 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 170/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
