Product Details:
|
| Brand: | Sany | Chassis Brand: | Mercedes Benz Actros 4141 |
|---|---|---|---|
| Model: | SY5419THB 56 | Max Output Power(Kw/rpm): | 300/1800 |
| GVW (Kg): | 41000 | Vertical Reach: | 56m/6 Section |
| Overall Dimension(mm): | 13850*2500*4000 | Pressure (Low/High-pressure): | 8.3/12Mpa |
| High Light: | Used Concrete Pump Truck 56M,SY5419THB 56 Used Concrete Pump Truck,Used 56M Pump Truck |
||

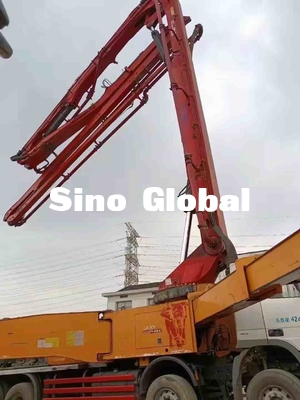

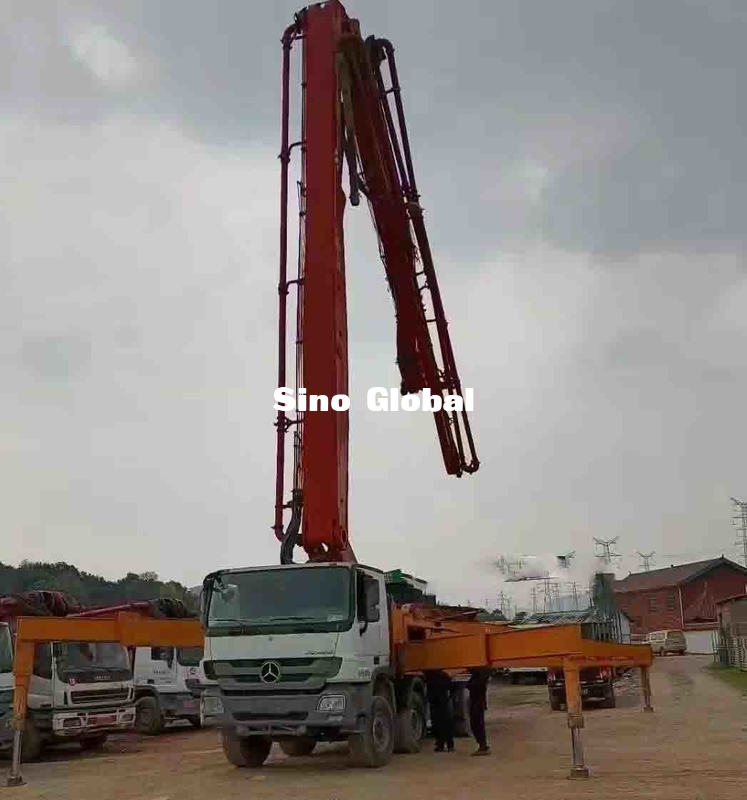

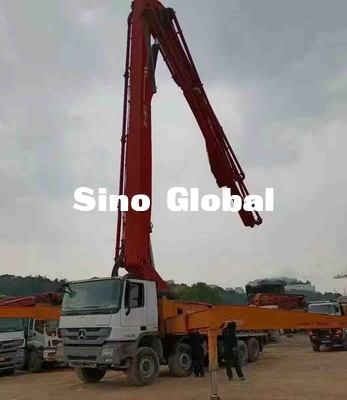

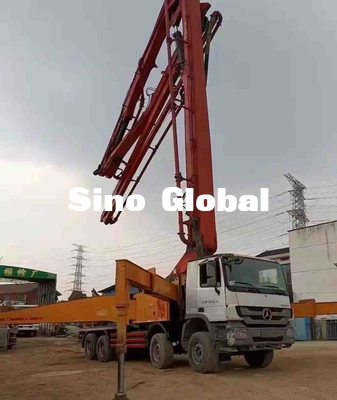

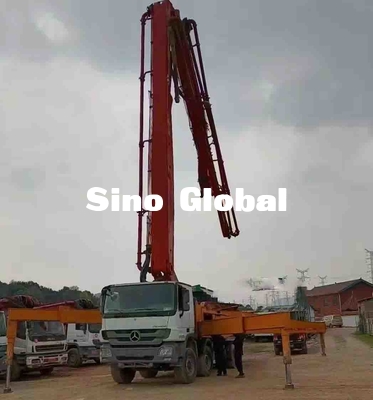

Used Sany concrete pump truck 56M with Mercedes Benz Model 2012
| Brand | Sany | |
| Chassis Brand | Mercedes Benz Actros 4141 | |
| Model | SY5419THB 56 | |
| Released date | 2012 | |
| Chassis | Cabin | Actros 4141 |
| Drive mode | 8*4 | |
| Engine model | OM501LA.Ⅳ/3 | |
| Emissionstandard | Euro3/11.946L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2059/1800 | |
| Transmission model | RTLO16918B 18 forward 4 reverse |
|
| Rear axle: ratio/loading capacity | V Rod Left Rear/23.4 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 1700+4600+1310 | |
| Tire | 315/80R22.5 | |
| GVW (Kg) | 41000 | |
| Overall dimension(mm) | 13850*2500*4000 | |
| Boom&Pump system | Vertical reach | 56m/6 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 180/125m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
