Product Details:
|
| Model: | Sany SYG5371THBCB 490C-10 | Dimensions: | 12760*2550*4000mm |
|---|---|---|---|
| Dead Weight: | 36700 Kg | Vertiucal Reacg: | 48.6 M |
| Oil Tank: | 680 L | Water Tabj: | 620 K |
| High Light: | 23m Concrete Pump Trucks,Concrete Pump Trucks Putzmeister,sany pump truck 88m |
||

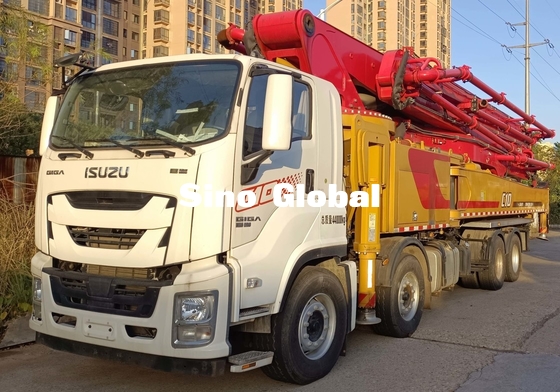

New Sany,Zoomlion, XCMG Truck-mounted Concrete Pump from 23m-88m available
We offer Sany, Zoonlion, XCMG, Putzmeister Brands;
Vertical Reach: 23m to 88m
Pump Chassis: Mercedes Benz, Volov, Isuzu or Sany (optional )
We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.
| Sany Model | SYG5371THBCB 490C-10 | ||
|
Overall Specification |
Length(mm) | 12760 | |
| Width(mm) | 2550 | ||
| Height(mm) | 4000 | ||
| Dead Weight(kg) | 36700 | ||
| Boom & Outrigger Specification | Vertical Reach(m) | 48.6 | |
| Horizontal Reach(m) | 43.6 | ||
| Reach Depth(m) | 30.8 | ||
| Min. Unfolded Reach(m) | 13.9 | ||
|
1st Section |
Length(mm) | 9760 | |
| Articulation(°) | 89 | ||
|
2nd Section |
Length(mm) | 7670 | |
| Articulation(°) | 180 | ||
|
3rd Section |
Length(mm) | 7410 | |
| Articulation(°) | 180 | ||
|
4th Section |
Length(mm) | 9670 | |
| Articulation(°) | 235 | ||
|
5th Section |
Length(mm) | 10060 | |
| Articulation(°) | 215 | ||
| Rotation(°) | ±360 | ||
| Front Outrigger Spread L-R(mm) | 8600 | ||
| Rear Outrigger Spread L-R(mm) | 9000 | ||
| Pumping Systerm Specification | Output (m3/h) | Low-Pressure | 200 |
| High-Pressure | 137 | ||
| Pressure (MPa) | Low-Pressure | 8.3 | |
| High-Pressure | 12 | ||
| Max. strokes per minute (times/min) | Low-Pressure | 33 | |
| High-Pressure | 22 | ||
| Delivery Cylinder Diameter(mm) | 260 | ||
| Stroke Length(mm) | 1900 | ||
| Hydraulic System | Open | ||
| Hydraulic System Oil Pressure(MPa) | 32 | ||
| Oil Tank Capacity(L) | 680 | ||
| Water Tank Capacity(L) | 620 | ||
| Pipe Diameter(mm) | 125 | ||
| End Hose Length(m) | 3 | ||
| End Hose Diameter(mm) | 125 | ||
