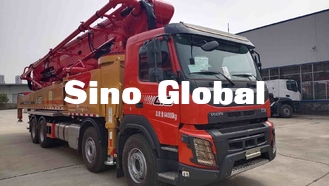

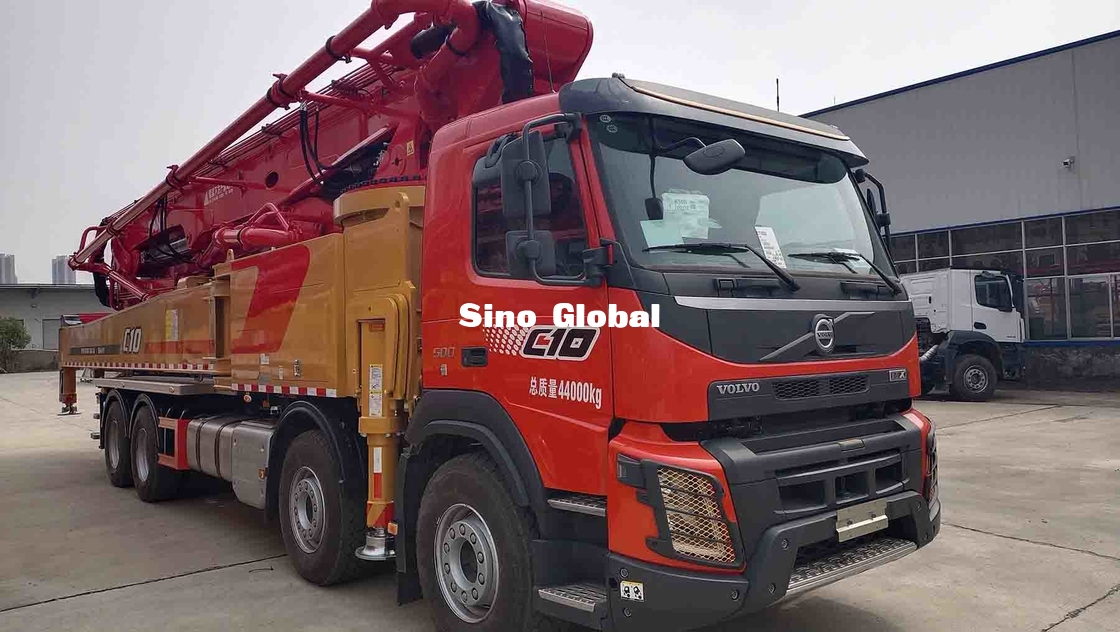

Product Details:
|
| Model: | SYG5450THB 560C-10 | Chassis: | Volvo |
|---|---|---|---|
| Chassis Model: | FM500 84R B | Engine Type: | D13K500EU6 |
| Engine Power: | 375/1800kW/rpm | Dimensions: | 12050mm*2550*3750mm |
| Highlight: | Concrete Pump Trucks Zoomlion,Concrete Pump Trucks Sany,Isuzu Chassis Sany Pump Trucks |
||
New Sany,Zoomlion, XCMG Truck-mounted Concrete Pump from 23m-88m available
We offer Sany, Zoonlion, XCMG, Putzmeister Brands;
Vertical Reach: 23m to 88m
Pump Chassis: Mercedes Benz, Volov, Isuzu or Sany (optional )
We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.
| Model | SYG5450THB 560C-10(SZ-EU) | ||
|
X-unit Specification |
Length(mm) | 12050 | |
| Width(mm) | 2550 | ||
| Height(mm) | 3750 | ||
| Dead Weight(kg) | 32400 | ||
| Boom & Outrigger Specification | Vertical Reach(m) | 56 | |
| Horizontal Reach(m) | 51 | ||
| Reach Depth(m) | 36.6 | ||
| Min. Unfolded Reach(m) | 15.2 | ||
|
1st Section |
Length(mm) | 11390 | |
| Articulation(°) | 89° | ||
|
2nd Section |
Length(mm) | 9230 | |
| Articulation(°) | 180 | ||
|
3rd Section |
Length(mm) | 8750 | |
| Articulation(°) | 180 | ||
|
4th Section |
Length(mm) | 11070 | |
| Articulation(°) | 240 | ||
|
5th Section |
Length(mm) | 8080 | |
| Articulation(°) | 210 | ||
|
6th Section |
Length(mm) | 3350 | |
| Articulation(°) | 110 | ||
| Rotation(°) | ±360 | ||
| Front Outrigger Spread L-R(mm) | 9470 | ||
| Rear Outrigger Spread L-R(mm) | 12530 | ||
| Pumping Systerm Specification | Output(m3/h) | 172 | |
| Pressure(MPa) | 8.3 | ||
| Max. strokes per minute(times/min) | 28 | ||
| Delivery Cylinder Diameter(mm) | 260 | ||
| Stroke Length(mm) | 1900 | ||
| Hydraulic System | Open | ||
| Hydraulic System Oil Pressure(MPa) | 32 | ||
| Oil Tank Capacity(L) | 610 | ||
| Water Tank Capacity(L) | 600 | ||
| Pipe Diameter(mm) | 125 | ||
| End Hose Length(m) | 3 | ||
| End Hose Diameter(mm) | 125 | ||
| Chassis Specification | Chassis Brand | Volvo | |
| Chassis Model | FM500 84R B | ||
| Engine Type | D13K500EU6 | ||
| Engine Maximum Net Power(kW/rpm) | 375/1800kW/rpm | ||
| Emission Standard | China Ⅵ | ||
| Fuel Tank Capacity(L) | 400L | ||
| Displacement(L) | 12.777 | ||
| Max. Speed(km/h) | 80 | ||
