Product Details:
|
| Model: | Zoomlion HZS60P | Mixer: | JS1000 |
|---|---|---|---|
| Aggregate Storage: | 3*13 M³ | Theoretical Output Capacity: | 60 M³/h |
| Highlight: | Flexible Concrete Batching Plant,Movable Concrete Batching Plant,Zoomlion concrete batching systems |
||

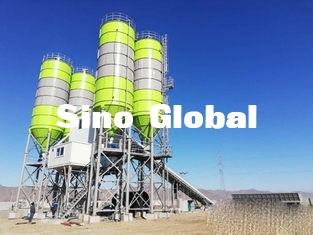

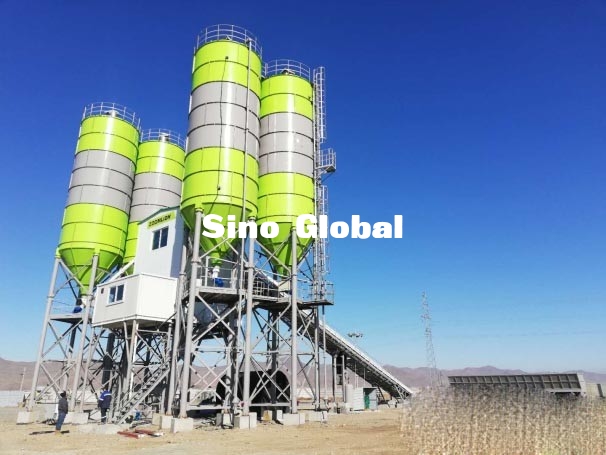

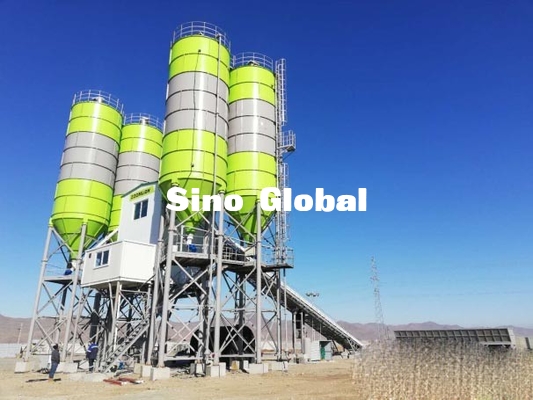

Sany, Zoomlion and other brand Batching plants
We cooperate with the most professional Chinese manufacturers such as Sany, Zoomlion, XCMG, Sinotruck etc. As a leading heavy machines supplier and exporter, Sino Global has much professional marketing experience for construction machinery overseas, also we have abundant experience for sup[liering ghe services of sales, after-sale, spare parts, survey and training. The construction machinery of above mentioned brands have been exported to more than 45 countries.
We offer all kinds of the batching plants, the theorectic productivity is from 30m³/h to 180m³/h,
Batching Plant Features:
Build and put into operation Rapidly. Easy to Maintain and Move.
Designed for Rapid and Convenient Installation
General components & convenient maintenance
Flexible to disassemble & assemble. convenient to move.
| Zoomlion Batching Plant Model | HZS60P |
|---|---|
| Theoretical Output Capacity (m³/h) | 60 |
| Discharge Height (m) | ≥4 |
| Mixer | JS1000 |
| Theoretical Production Periods (s) | 60 |
| Aggregate Storage (m³) | 3×13 |
| Max. Weighing Value of Slant Belt Conveyor (kg) | 450 |
| The Conveying Capacity of Screw Conveyor (t/h) | 60 |
| Total Installed Power (kW) for Reference | 100 |
| Max. Batching Value and Accuracy of Aggregate (kg) | 1800±2% |
| Max. Batching Value and Accuracy of Cement (kg) | 700±1% |
| Max.Batching Value and Accuracy of Powder Admixtures (kg) | |
| Max. Batching Value and Accuracy of Water (kg) | 250±1% |
| Max. Batching Value and Accuracy of Liquid Additive (kg) | 20±1% |
