Product Details:
|
| High Light: | Komatsu Second Hand Dump Truck,Water Cooled Second Hand Dump Truck,Second Hand Komatsu Dump Truck |
||
|---|---|---|---|

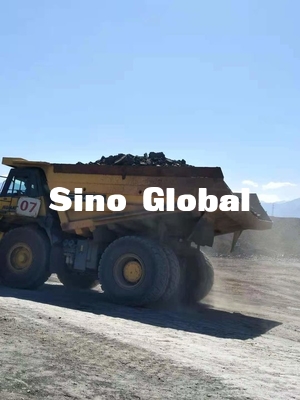

Used Komatsu HD465-7 Model 2014 Dump Truck
Speficiations:
Engine:
Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SAA6D170E-5
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Water-cooled, 4-cycle
Aspiration. . . . . . . Turbo-charged, air-to-air after-cooled, cooled EGR
Number of cylinders ......................... 6
Bore x stroke . . . . . . . . . . . . . . . . . . 170 mm x 170 mm 6.69" x 6.69
Piston displacement. . . . . . . . . . . . . . . . . . . . . . . . . 23.15 ltr 1,413 in3
Horsepower: SAE J1995 . . . . . . . . . . . . . . . Gross 551 kW 739 HP
ISO9249/SAE J1349 . . . . . . . . . . Net 533 kW 715 HP
Rated rpm. . . . . . . . . . . . . . . . . . . . . . . . . . . 2,000 rpm
Fan drive type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mechanical
Maximum torque. . . . . . . . . . . . . . . . . . . . . . . . . 339 kg•m 2,452 lb. ft
Fuel system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Direct injectio
Governor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electronically controlled
Lubrication system: Method. . . . . . . . . . Gear pump, force-lubrication
Filter . . . . . . . . . . . . . . . . . . . . . . . . Full-flow type
Air cleaner . . . . . . . . . . . . . . . . . . Dry type with double elements and precleaner (cyclonpack type),
plus dust indicator
EPA Tier 3 and EU Stage 3A emission certified.
Tranpirtation:
Torque converter . . . . . . . . . . . . . . . . . . 3-elements, 1-stage, 2-phase
Transmission. . . . . . . . . . . . . . . . . . . . . Full-automatic, planetary type
Speed range . . . . . . . . . . . . . . . . . . . 7 speeds forward and 1 reverse
Lockup clutch. . . . . . . . . . . . . . . . . . . . . . . . . Wet, multiple-disc clutch
Forward . . . . . . . . . . . . . . . . . . . . . Torque converter drive in 1st gear,
direct drive in 1st lockup and all higher gears
Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Torque converter drive
Shift control. . . . . . . . . . . . . . . . Electronic shift control with automatic
clutch modulation in all gears
Maximum travel speed . . . . . . . . . . . . . . . . . . . 70.0 km/h 43.5 mph
