Product Details:
|
| Model NO: | HX5292THB-37 | Structure: | Cylinder Type |
|---|---|---|---|
| Productivity: | 150m²/h | Feeding Height: | 1370mm |
| Overall Dimension (L ×W× H): | 12000mm*2490mm*3850mm | Chassis Model: | Sinotruk |
| Full-load Total Weight: | 29000KG | Max. Engine Power: | 380HP (EURO IV) |
| High Light: | Used Zoomlion Concrete Pump Truck,1370mm Used Zoomlion Concrete Pump Truck,Used 37M zoomlion pump truck |
||

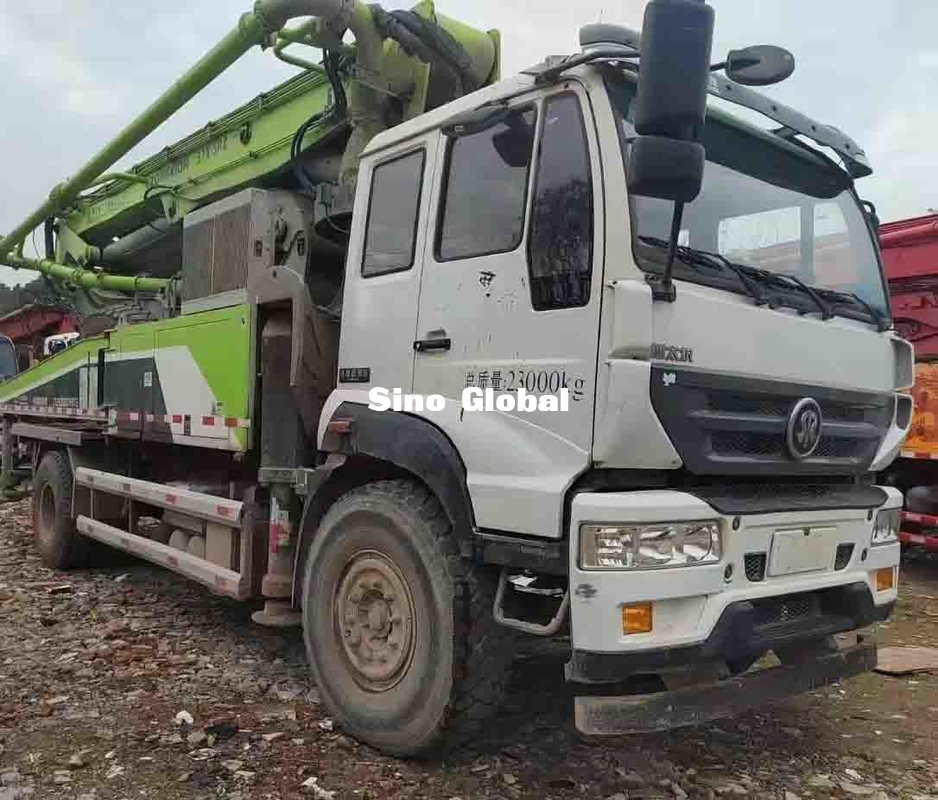

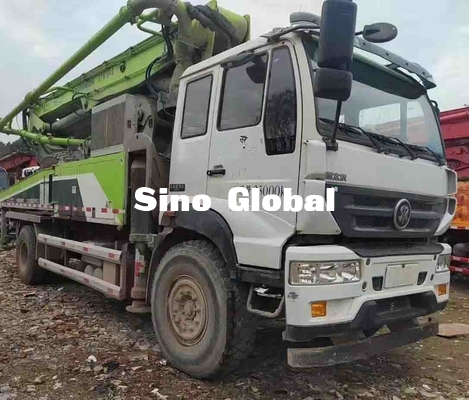

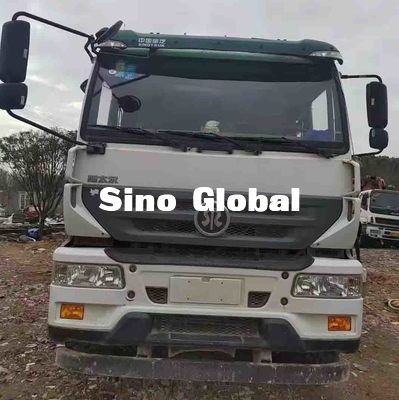

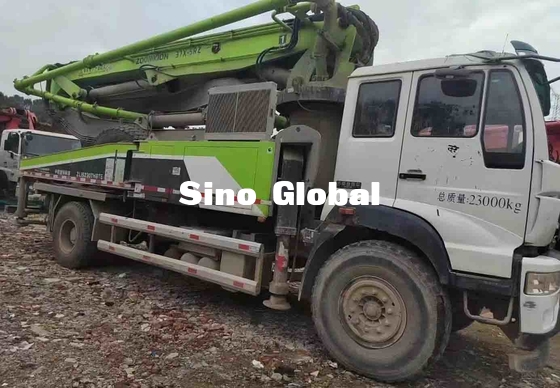

Used Zoomlion 37M concrete pump truck with Sinotruk Chassis Model 2019
| Product Discription | |||
| Items | Unit | Model of Whole Truck | |
| HX5292THB-37 | |||
| Main Technical Parameters | Theoretical Pumping Capacity | M3/h | 150 |
| Pumping Capacity Index | MPa. M3/h | 586 | |
| Theoretical Pumping Pressure | MPa | 8.5 | |
| Hopper Capacity | L | 700 | |
| Feeding Height | mm | 1370 | |
| Distributing Valve | S valve | ||
| Max. Distributing Radius | M | 33.2 | |
| Max. Distributing Height | M | 37.2 | |
| Max. Distributing Depth | M | 24.3 | |
| Height of Distributing Boom When Stretched | mm | 8450 | |
| Distance between Front Landing Legs | mm | 6507 | |
| Distance between Rear Landing Legs | mm | 6600 | |
| Distance between Front and Rear Landing Legs | mm | 7179 | |
| Diameter of Conveying Pipe | mm | 125 | |
| Length of End Hose | M | 4 | |
| Rotary Range of Distributing Boom | 365° | ||
| Number of Boom Sections | 4 | ||
| Rotary Angle of Each Boom Section | ° | 92/180/180/270 | |
| Remote-control Distance | M | 200 | |
| Main Technical Parameters | Max. Traveling Speed | Km/h | 90 |
| Min. Turning Radius | mm | 8800 | |
| Brake Distance | M | 7 | |
| Approach Angle | ° | 16 | |
| Departure Angle | ° | 11 | |
| Chassis Model | |||
| Sinotruk | |||
| Wheel Base between the First and the Second Axle | mm | 4600 | |
| Wheel Base between the Second and the Third Axle | mm | 1350 | |
| Front Tread | mm | 2022 | |
| Rear Tread | mm | 1830 | |
| Max. Engine Power | Kw | 380HP (EURO IV) | |
| Max Engine Torque | N. M | 1350 (1100-1600r/min) | |
| Max. Grade Ability | % | 35 | |
| Fuel Consumption Limit | L/100km | 34 | |
| Overall Dimension (L ×W× H) | mm | 12000×2490×3850 | |
| Full-load Total Weight | Kg | 29000 | |
