Product Details:
|
| Model: | Sany Sy312c-6w 2018 | Capacity: | 12 M3 |
|---|---|---|---|
| Dimensions: | 9945×2500×3980mm | Weight: | 14850kg |
| Engine Model: | Weichai WP10.350E53 | Engine Power: | 257 KW |
| High Light: | 257KW Second Hand Concrete Mixer Trucks,12M³ Second Hand Concrete Mixer Trucks,Sany second hand concrete trucks 12M³ |
||

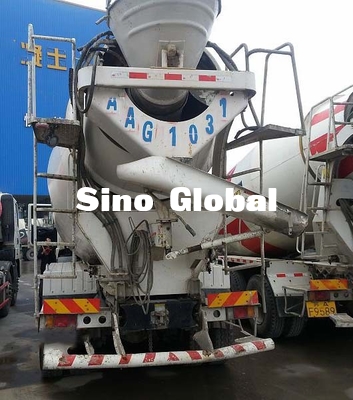

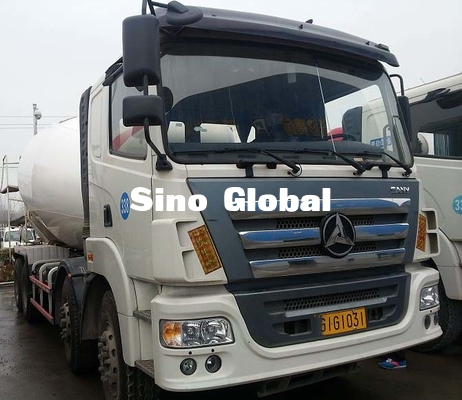

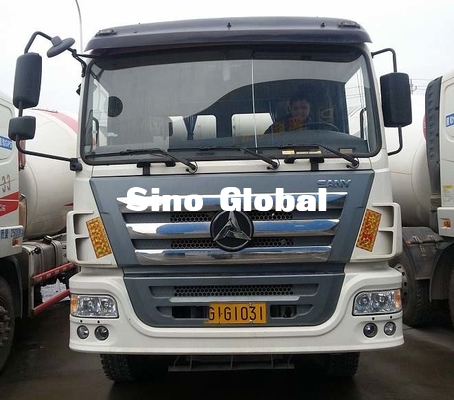

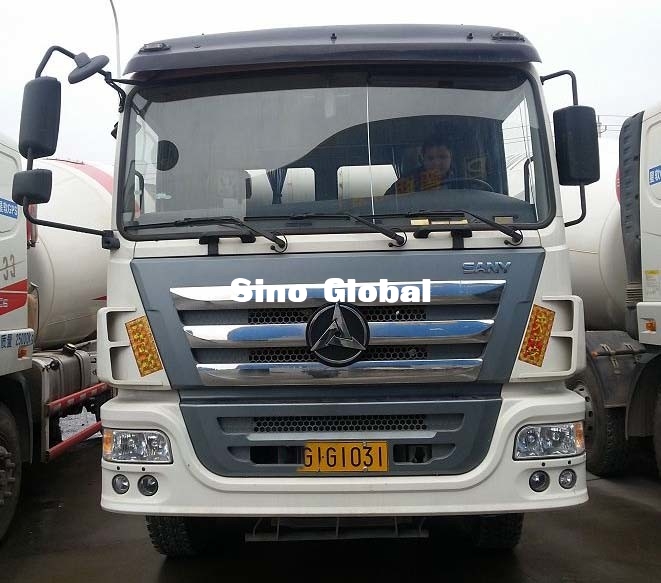

Used Sany 12M³ Truck Mixer Model 2018
Product Discription:
| Sany Model | SY312C-6W | |
| Overall Parameters | Rudder Direction | Left |
| Curb Weight(kg) | 14850 | |
| GVW(kg) | 43650 | |
| Dimension (L×H×W)(mm) | 9945×2500×3980 | |
| Wheel Base(mm) | 4090+1350 | |
| Min. Ground Clearance(mm) | ≥240 | |
| Min. Turning Diameter(m) | ≤20 | |
| Fuel Consumption(L/100km) | ≤45 | |
| Braking Distance(V0=30km/h)(m) | ≤10(Full load); ≤9(Empty load) | |
|
Chassis |
Engine Model | Weichai WP10.350E53 |
| Displacement(L) | 9.726 | |
| Rated Power/Rev Speed(kW/rpm) | 257/1900 | |
| Max. Torque/Rev Speed(N.m/rpm) | 1600/1200-1600 | |
| Emissions | China Ⅴ | |
| Cab | Sany Cab CB318 | |
| Gear-box | Fast 9JS150TA-B | |
| Front Axle(t) | 9 | |
| Intermediate, Rear Axle(t) | 2×16 | |
| Tyre | 12.00R20 | |
| Fuel Tank Capacity(L) | 300 | |
|
Drum |
Capacity(m3) | 12 |
| Motor | Sany M2F090NCWV | |
| Feeding Speed(m3/min) | ≥8 | |
| Discharge Speed(m3/min) | ≥5 | |
| Discharge Residual Rate | ≤0.5% | |
| Slump(mm) | 50 － 210 | |
| Water Tank Capacity(L) | 400 | |
| Water Pressure(MPa) | 0.35-0.38 | |
| Reducer | PMP PMB7.1 | |
| Hydraulic Pump | Sany P4VC090NHW | |
