Product Details:
|
| Fuel: | Diesel | Maximum Horsepower: | 300-400hp |
|---|---|---|---|
| Wheelbase: | 3825+1350mm | Rated Output Power: | 371HP |
| Rated Weight: | 12070kg | Trademark: | Howo |
| Drive Mode: | 6*4 | Engine Model: | Wd61569 |
| High Light: | 2nd Hand Howo Concrete Mixer Truck,2nd Hand howo mixer truck,371HP howo mixer truck 2nd Hand |
||

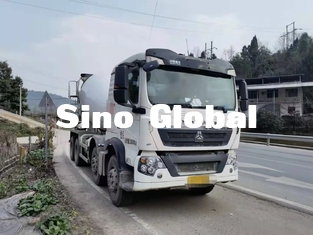

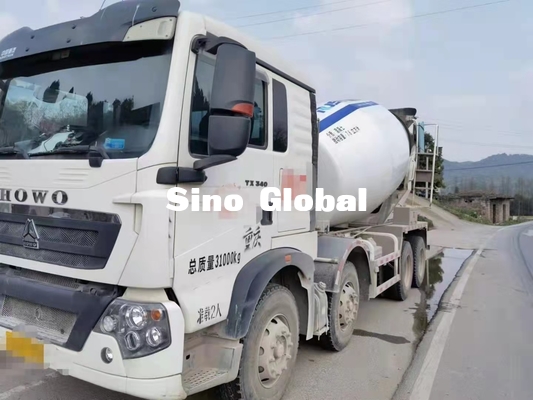

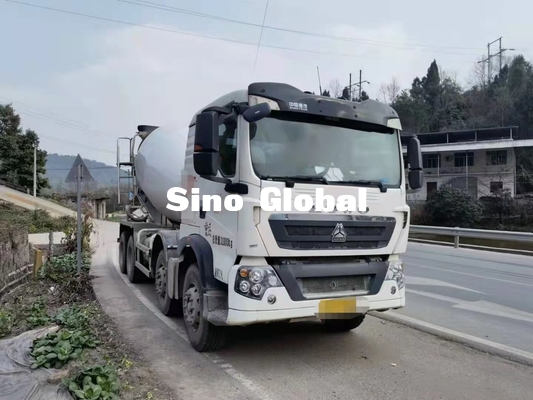

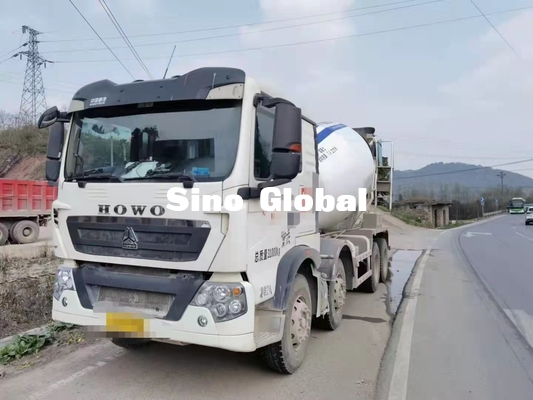

Used Howo Mixer Truck 10M³ Model 2021
| CHASSIS SPECIFICATION | |||
| Dimension(LxWxH)(unloaded)(mm) | 8900×2496×3880 | ||
| Cubage (m³) | 10/12/14/16 | ||
| Approaching angle/Departure angle(°) | 15/10 | ||
| Overhang(front/rear) (mm) | 1500/3120 | ||
| Wheel base (mm) | 3825+1350 | ||
| Max speed(km/h) | 90 | ||
| Curb weight(kg) | 13870 | ||
| Rated Weight(kg) | 12070 | ||
|
Engine (Steyr technology, made in China) |
Model | WD615.69,WD615.47 | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 336HP/371HP | ||
| Emission | EUROII | ||
| Dislacement | 9.726L | ||
| Fuel tanker capacity (L) | 300L | ||
| Transmission | SINOTRUK HW series 10 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. Standard HW1571O for WD615.87 engine, standard HW19710 for WD615.47 engine. | ||
| Steering system | Z-F8118 steering gear, Z-F steering oil pump, system pressure of 18MPa | ||
| Clutch | 0430 diaphragm spring dutch, hydraulic control air power assisted. Standard 430A type for WO615.47 engine, standard 4308 type for WD615.69 engine, standard 43QC type for WD615.87 engine. | ||
| Front axle | HF9 for heavy truck, rated load of 9t. drum-type | ||
| Rear axle | HC16 double reduction for heavy truck, Ratio:4.8 or 5.73 | ||
| Tire | 12.00R20/12R22.5,13R22.5 | ||
| Brake System |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
