Product Details:
|
| Model: | Sany SY312C-6W Model 2019 | Engine Model: | Weichai WP10.350E53 |
|---|---|---|---|
| Engine Power: | 257 KW | Dimensions: | 9945×2500×3980 Mm |
| Weight: | 14850 Kg | Gear-Box: | Fast 9JS150TA-B |
| High Light: | Sany Second Hand Truck Mixer 257KW,257KW Second Hand Truck Mixer,Second Hand Concrete Transit Mixer |
||

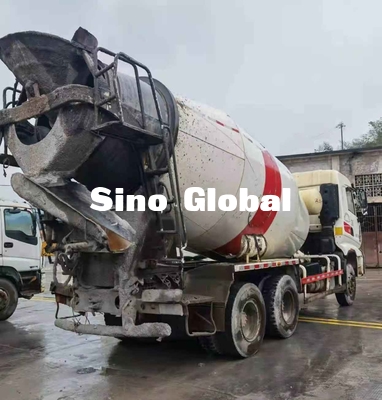

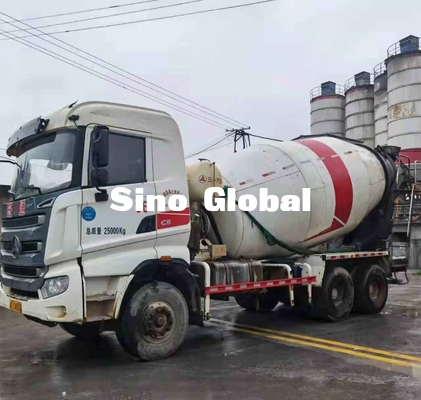

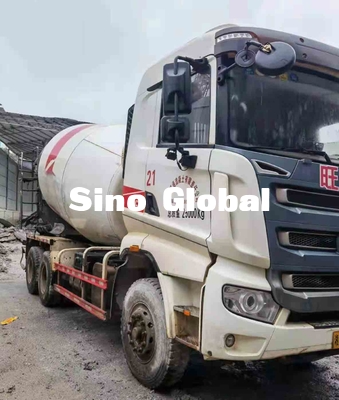

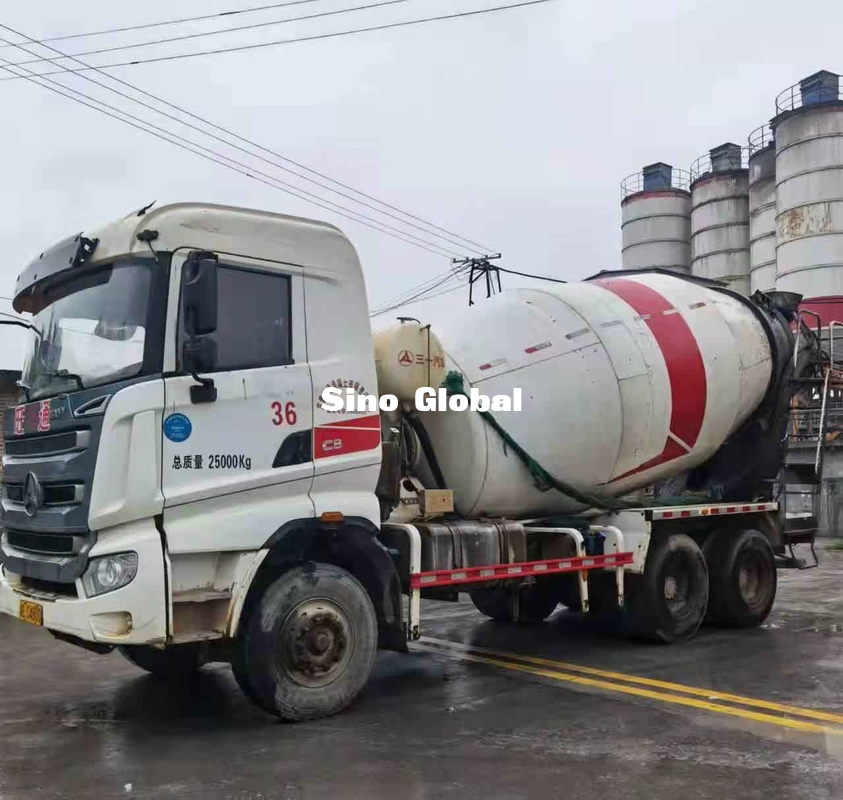

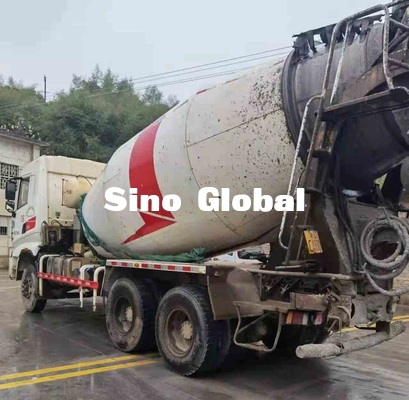

Used Sany 12M³ Truck Mix Model 2018
Product Discription:
| Sany Truck Mix Model | Sany SY312C-6W | |
| Overall Parameters | Rudder Direction | Left |
| Curb Weight | 14850 kg | |
| GVW | 43650 kg | |
| Dimension (L×H×W) | 9945×2500×3980 mm | |
| Wheel Base | 4090+1350 mm | |
| Min. Ground Clearance | ≥240 mm | |
| Min. Turning Diameter | ≤20 m | |
| Fuel Consumption | ≤45 L/100km | |
| Braking Distance(V0=30km/h)(m) | ≤10(Full load); ≤9(Empty load) | |
|
Chassis |
Engine Model | Weichai WP10.350E53 |
| Displacement | 9.726 L | |
| Rated Power/Rev Speed | 257/1900 kW/rpm | |
| Max. Torque/Rev Speed(N.m/rpm) | 1600/1200-1600 | |
| Emissions | China Ⅴ | |
| Gear-box | Fast 9JS150TA-B | |
| Front Axle(t) | 9 | |
| Intermediate, Rear Axle(t) | 2×16 | |
| Cab |
Sany Cab CB318 |
|
| Tyre | 12.00R20 | |
| Brake |
Pneumatic dual- circuit braking system with drum |
|
| Fuel Tank Capacity | 300 L | |
|
Drum |
Capacity | 12 m3 |
| Feeding Speed | ≥8 m3/min | |
| Discharge Speed | ≥5 m3/min | |
| Discharge Residual Rate | ≤0.5% | |
| Slump | 50 － 210 mm | |
| Water Tank Capacity | 400 L | |
| Water Pressure | 0.35-0.38 MPa | |
| Reducer | PMP PMB7.1 | |
| Hydraulic Pump | P4VC090NHW | |
| Motor | M2F090NCWV | |
