Product Details:
|
| Model: | Sany HBT80C Diesel Trailer Pump Model 2017 | Color: | Yellow And Red |
|---|---|---|---|
| Type: | S-Valve | Engine Rated Power: | 180KW |
| Dimensions: | 7330*2125*2685mm | Gross Weight: | 7300kg |
| Highlight: | Diesel Used Concrete Trailer Pump,Sany Used Concrete Trailer Pump,Used 180KW sany trailer mounted concrete pump |
||

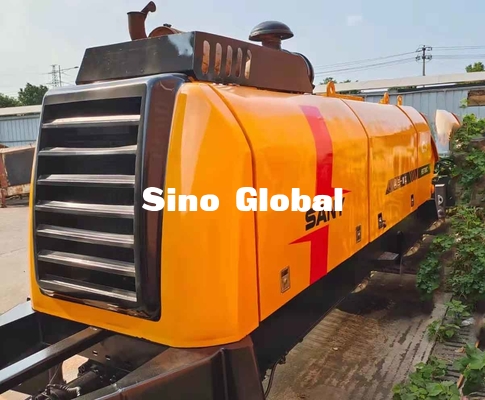

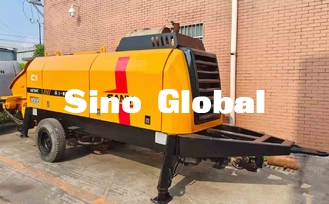

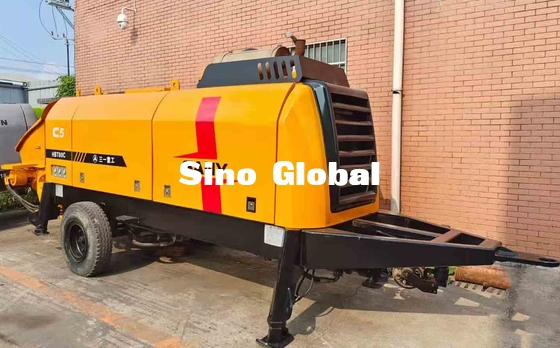

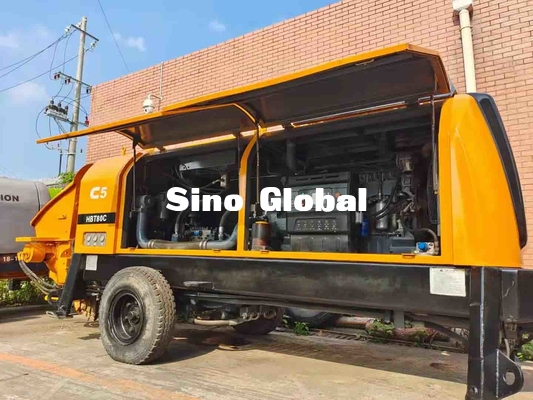

Used Sany HBT80C Diesel Trailer Pump Model 2017
Proudct Discription:
| Model | Sany HBT80C |
| Place of Production | P.R China |
| Max.delivery pressure(theoretical) Low pressure/High pressure(Mpa) | 10 / 18 |
| Max.concrete output(theoretical) Low pressure/High pressure(m3/h) | 85 / 50 |
| Engine rated power(kw) | 180 |
| Rated Rotary Speed (rpm) | 2200 |
|
Delivery cylinder Bore (mm) *Strok(mm) |
Φ200 × 1800 |
| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1420 |
| Dimension (L*W*H) (mm) |
7330 × 2125 × 2685 |
| Gross weight (kg) | 7300 |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
