Product Details:
|
| Model: | Zoomlion HBT60.13.90SU Trailer Pump Model 2018 | Color: | Green And Grey |
|---|---|---|---|
| Rated Poer: | 174KW | Rated Speed: | 2300 R/min |
| Weight: | 7300kg | Dimensions: | 6800mm*2200mm*2700mm |
| Highlight: | 174KW Second Hand Concrete Trailer Pump,Zoomlion Second Hand Concrete Trailer Pump |
||

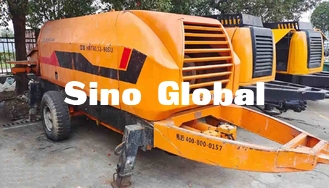

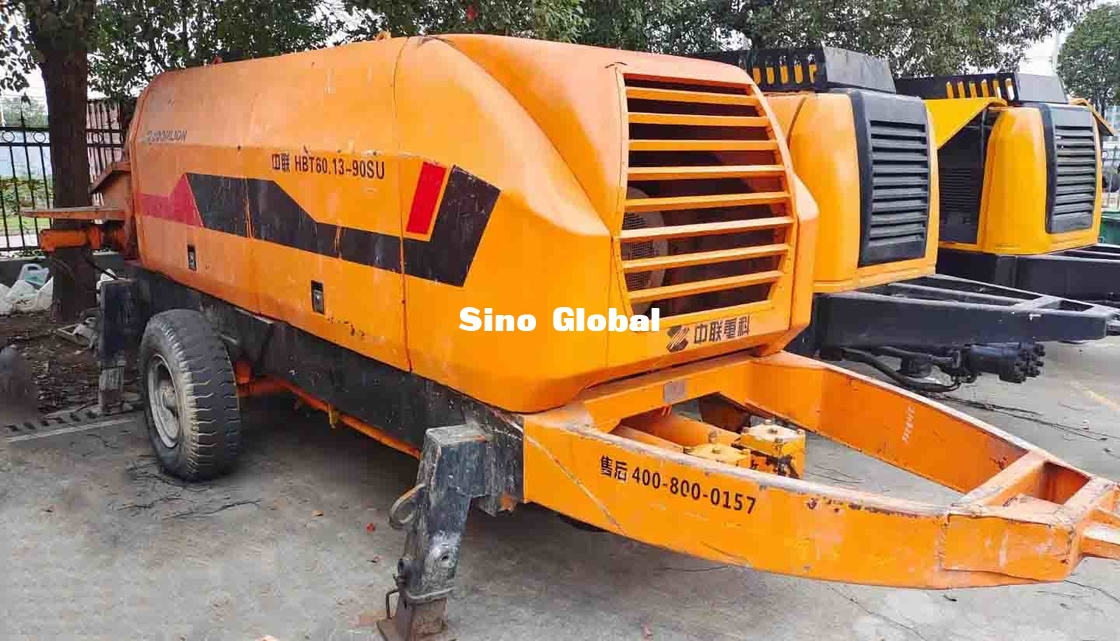

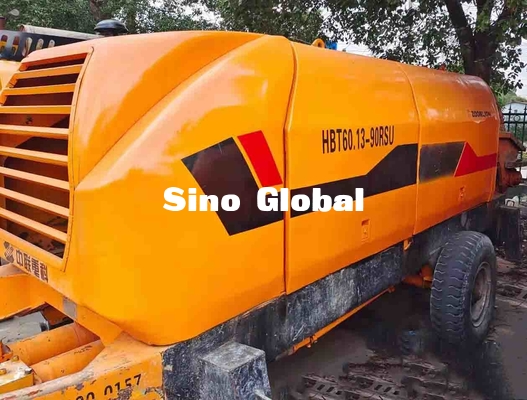

Used Zoomlion HBT60.13.90SU Trailer Pump Model 2018
| Parameters of Zoomlion Trailer Pump Model 2018 | |||
| 60.16.174RSK | |||
| Whole performance of pump | Max. theo. concrete output(L./H.) | m3/h | 76/46 |
| Max.concrete pumping pressure (H. /L.) | MPa | 16/9 | |
| Distributing valve style | / | S pipe valve | |
| Concrete cylinder diameter×stroke | mm | φ200×1800 | |
| Hopper capacity×feeding height | L×mm | 600×1400 | |
| Outlet diameter | mm | Φ180 | |
| Power system | Diesel engine model | / | BF6M1013C |
| Rated power | kW | 174 | |
| Rated speed | r/min | 2300 | |

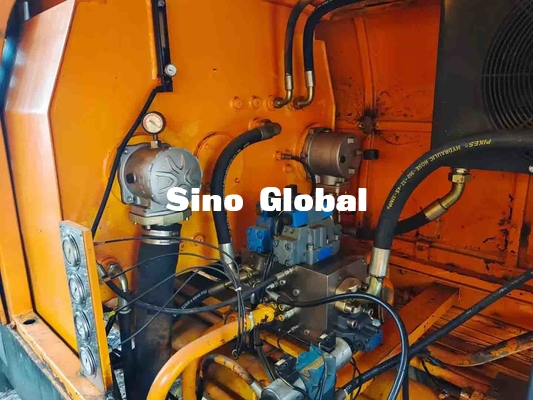

| Hydraulic system | Circuit type | / | Open circuit |
| Pumping system pressure | MPa | 34 | |
| Distributing system pressure | MPa | 23 | |
| Mixing system pressure | MPa | 14 | |
| Max mixing speed | r/min | 42 | |
| Capacity of oil tank | L | 600 | |
| Others | Max. aggregate diameter/ Inside diameter of delivering pipe |
mm | 50/Φ150 40/Φ125 |
| Inside diameter of delivering pipe | mm | Φ125/Φ150 | |
| Dimensions:length×width×height | mm | 6800×2200×2700mm | |
| Weight | kg | 7300 | |
