Product Details:
|
| Model: | Sany HBT6013 Electric Trailer Pump 2016 | Color: | Yellow And Red |
|---|---|---|---|
| Weight: | 5790kg | Motor Rated Power: | 90KW |
| Dimension(L*W.H): | 6185*2100*2100mm | ||
| Highlight: | Electric Used Concrete Trailer Pump,90KW Used Concrete Trailer Pump |
||

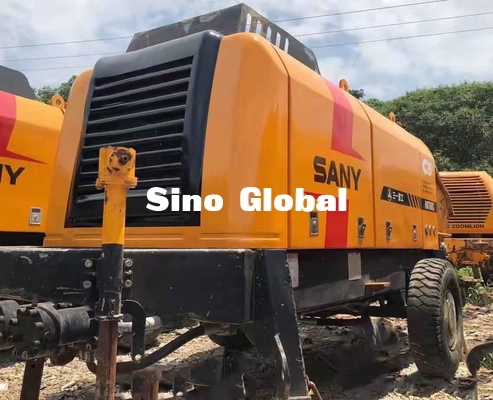

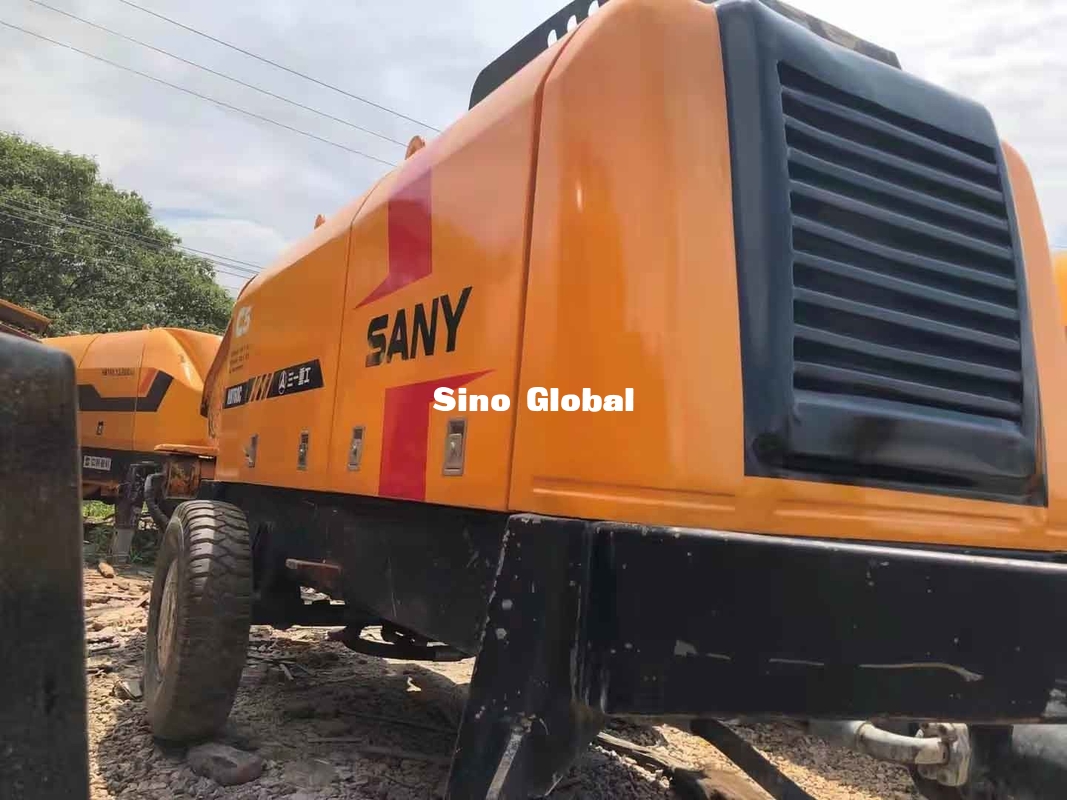

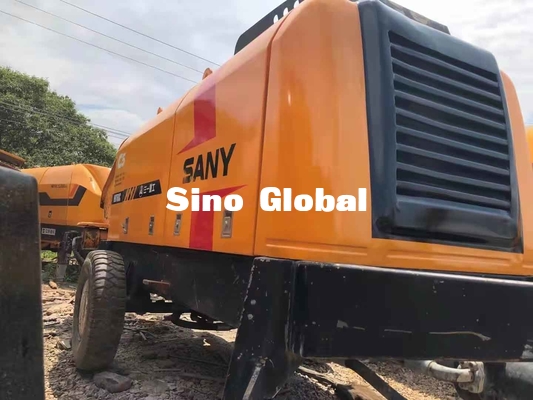

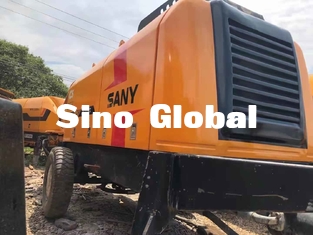

Used Sany HBT6013 Electric Trailer Pump Model 2016
Sany Trailer Pump Parameters:
| Model | Sany HBT6013 2016 |
| Weight | 5790kg |
| Motor rated power | 90kW |
| Max.delivery pressure(theoretical) Low/High pressure | 8/13 Mpa |
| Max.concrete output(theoretical) Low/High pressure | 65/40 m3/h |
| Delivery cylinder Bore*Strok | Φ200× 1400 mm |
| Hopper capacity*Feeding height | 0.7×1320 m³/mm |
| Dimension (L*W*H) | 6185×2100×2100 mm |
| Max.aggregate size Φ150mm delivery pipe | 50 mm |
| Max.aggregate size Φ125mm delivery pipe | 40 mm |
| Type | S-Valve |
| Slump of concrete | 100～230 mm |
