Product Details:
|
| High Light: | Diesel Articulating Boom Lift,250KG Articulating Boom Lift,20.2m diesel articulated boom lift |
||
|---|---|---|---|

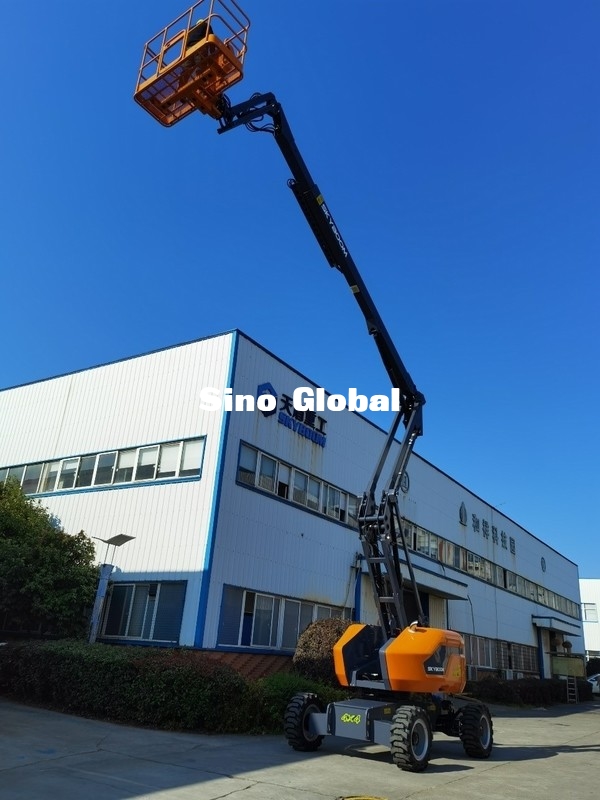

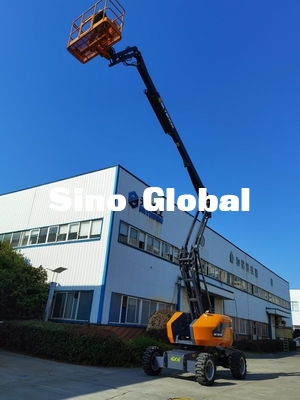

Articulating Boom Lift
| Model | GTZZ-18J |
| Max. working height | 20.2m |
| Max. platform height | 18.2m |
| Lift capacity | 250KG |
| Length (stowed) | 8.25m |
| Width | 2.38m |
| Height (stowed) | 2.48m |
| Wheel base | 2.6m |
| Ground clearance-center | 0.35m |
| Platform size | 1.83 * 0.76m |
| Turning radius-inside | 3m |
| Turning radius-outside | 5.2m |
| Travel speed (stowed) | 6.8km/h |
| Travel speed (raised or extended) | 1.1km/h |
| Gradeability (stowed) | 30% |
| Solid tire | 355/55D625 |
| Turntable swing | 360° |
| Platform leveling | Automatic |
| Platform rotation | ±80° |
| Fuel tank capacity | 100 L |
| Total weight | 10500kg |
| Drive & steering type | 4 *4 *2 |
