Product Details:
|
| High Light: | Self Propelled Articulated Boom Lift,Electrical Articulated Boom Lift,GTZZ-14EJ |
||
|---|---|---|---|

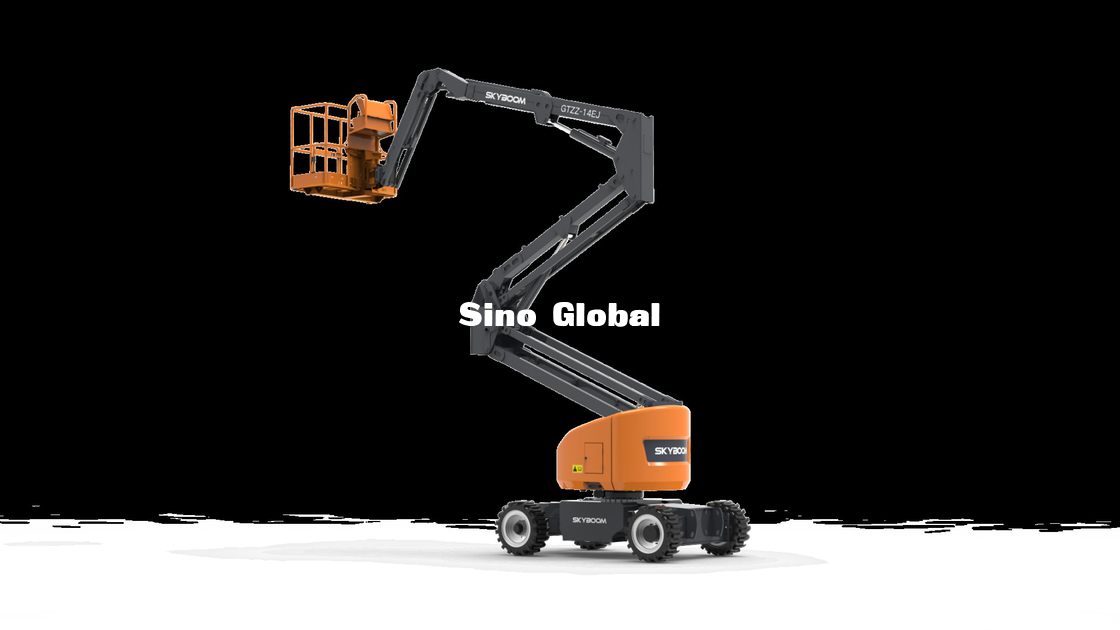

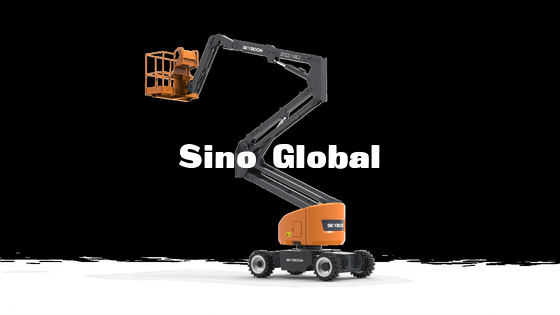

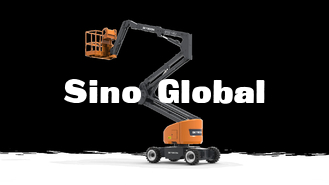

CE Electrical Self-Propelled Boom Lift Articulated SKYBOOM GTZZ-14EJ Working Height Maximum 15.9m
| Model | GTZZ-14EJ |
| Max. working height | 15.9m |
| Max. platform height | 13.9m |
| Lift capacity | 230KG |
| Length (stowed)(D) | 6.58m |
| Width (stowed)(E) | 1.76m |
| Height (stowed)(C) | 1.98m |
| Wheel base | 2m |
| Ground clearance(G) | 0.2m |

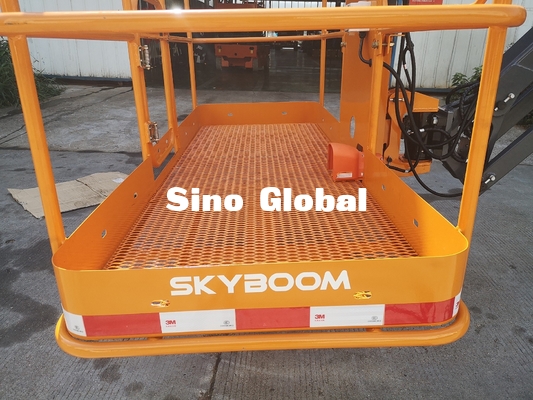

| Platform size(L*W)(A*B) | 1.53m * 0.76m *1.1m |
| Turning radius-inside (stowed /raised) | 0.8m |
| Turning radius-outside(stowed/raised) | 3.5m |
| Travel speed stowed (max) | 5.1km/h |
| Travel speed raised (max) | 0.8km/h |
| Gradeability (stowed) | 30% |
| Horizontal height maximum | 7.6m |
| Up and Over clearance | 7.9m |
| Max platform occupancy | 2 |
| Working slop maximum | 4° |
| Tyre | 26*12--16 |
| Total weight | 6800kg |
| Drive & steering type | 2WD *2WS |
