Product Details:
|
| Model: | Sany SY215C Excavator Model 2017 | Engine Model: | Isuzu AM-4HK1X |
|---|---|---|---|
| Engine Power: | 128kw/2000 Rpm | Operating Weight: | 22275 Kg |
| Ground Pressure: | 47 KPa | Boom Cylinder Diameter X Stroke: | 120*1285 Mm |
| Highlight: | Sany Used Crawler Excavator,SY215C Used Crawler Excavator,128kw Used Sany Excavator |
||

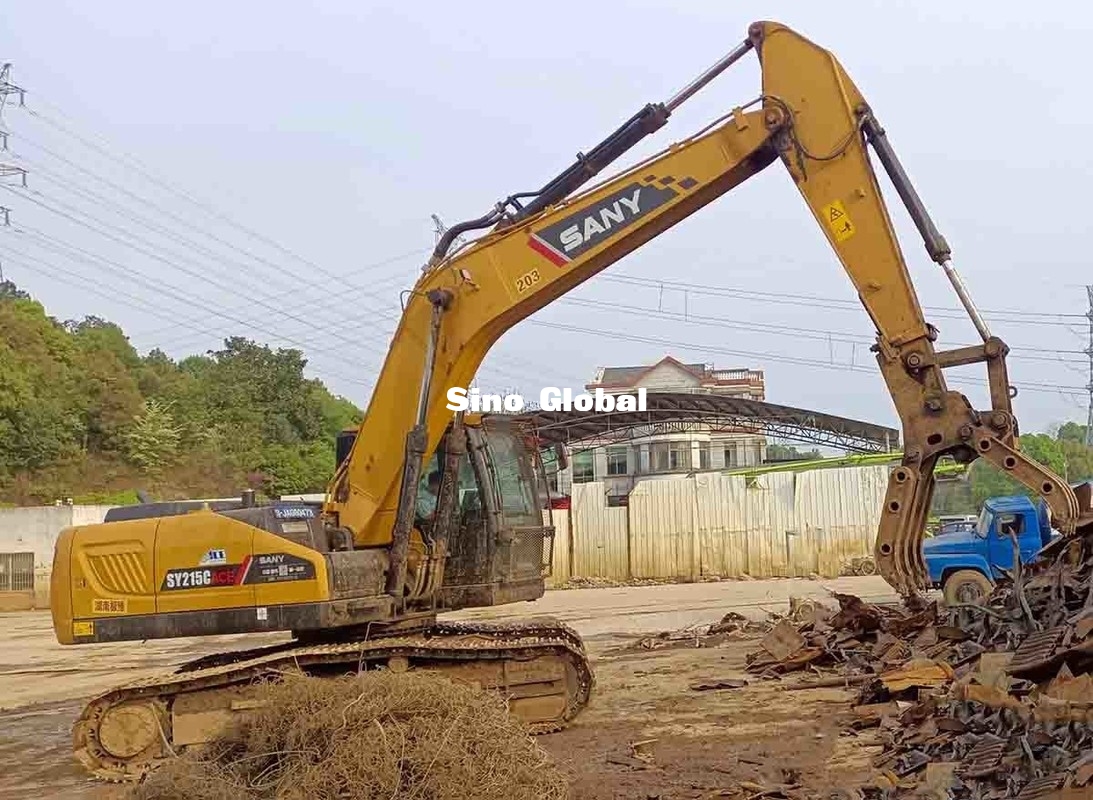

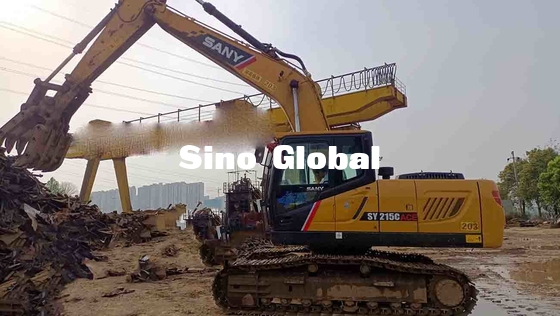

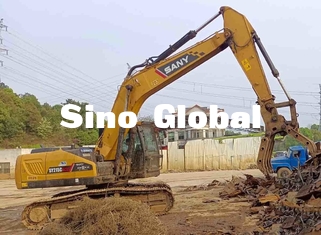

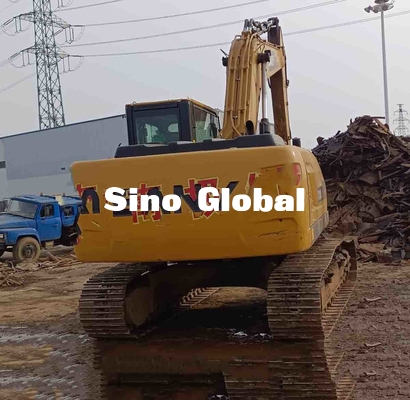

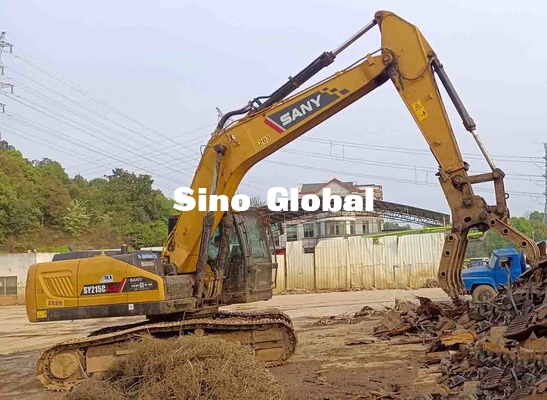

Used Sany SY215C Excavator Model 2017
Sany SY215C Excavator Discription
| Model | Isuzu AM-4HK1X |
| Displacement (l) | 5.193 |
|
Engine power at rated engine speed (kW/ rpm) |
128kw/2000 |
| Max. Torque (N-M @ rpm) | 630/1500 |
| Type | Positive control system |
| Number of selectable wor- king modes | 4 |
| Main pump | |
| Type | Variable-capacity piston pumps |
| Maximum flow (l/min) | 2*210 |
| Hydraulic motors | |
| Travel | 2* axial piston motor with parking brake |
| Swing | 1* axial piston motor with swing holding brake |
| Relief valve setting | |
| Implement circuits | 34.3mpa 336kg/cm² 4,974psi |
| Travel circuit | 34.3mpa 336kg/cm² 4,974psi |
| Swing circuit | 27.5mpa 270kg/cm² 3,988psi |
| Pilot circuit | 3.9mpa 38kg/cm² 565psi |
| Hydraulic cylinders | |
| Boom cylinder diameter x stroke (mm) | 120*1285 |
| Arm cylinder diameter x stroke (mm) | 135*1490 |
| Bucket cylinder diameter x stroke (mm) | 115*1120 |
| Blade cylinder diameter x stroke (mm) | 130*145 |
|
Operating weight with standard bucket, fully serviced, +75 kg operator (ISO) |
|
| Operating weight (kg) | 22275 |
| Ground Pressure (kPa) | 47 |
