Product Details:
|
| Used Zoomlion: | 2013 Model 47M White Mercedes Benz Chassis | GVW (Kg): | 33500 |
|---|---|---|---|
| Overall Dimension(mm): | 12020*2500*4000 | Vertical Reach: | 49m/6 Section |
| Emission Standard: | Euro3/11.95L | Engine Model: | OM501LA.III/17 |
| Chassis Brand: | Mercedes Benz3341 | Brand: | Zoomlion |
| High Light: | 49 Meter Used Concrete Pump Truck,Zoomlion Used Concrete Pump Truck,Zoomlion Concrete Pump Truck Used |
||

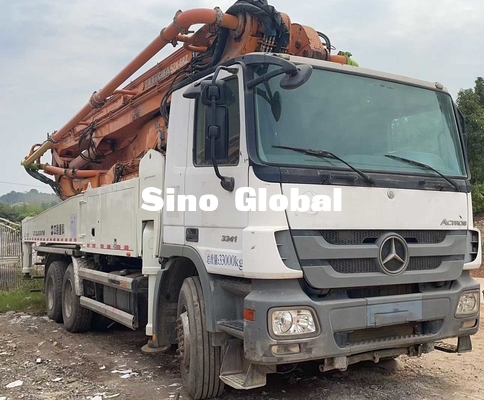

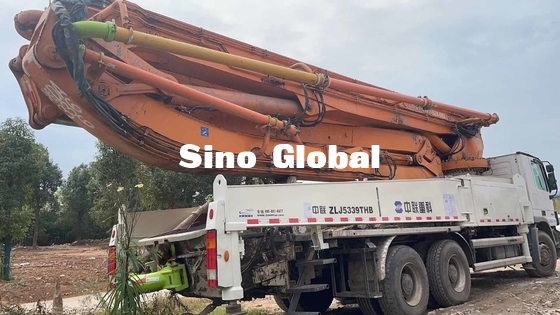

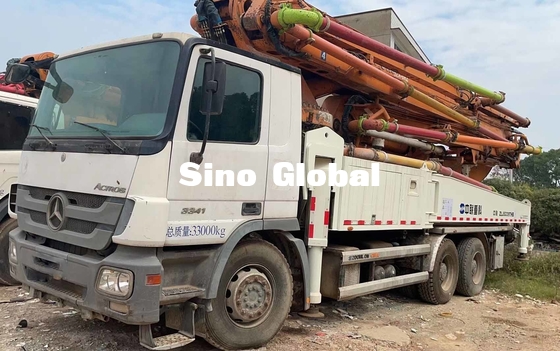

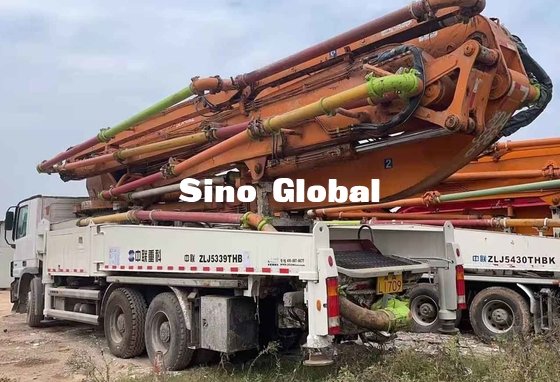

Used Zoomlion Model 2013 49m White Concrete Pump Truck with Mercedes Benz Chassis
| Brand | Zoomlion | |
| Chassis Brand | Mercedes Benz3341 | |
| Model | ZLJ5339THB 49X-6RZ | |
| Released date | 2013 | |
| Chassis | Cabin | Benz Actros3341 |
| Drive mode | 6*4 | |
| Engine model | OM501LA.III/17 | |
| Emissionstandard | Euro3/11.95L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2000/1800 | |
| Transmission model | G240-16 | |
| Rear axle: ratio/loading capacity | HL7500,5.33/22.06 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 4500+1350 | |
| Tire | 295/80R22.5 | |
| GVW (Kg) | 33500 | |
| Overall dimension(mm) | 12020*2500*4000 | |
| Boom&Pump system | Vertical reach | 49m/6 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 180/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12 Mpa | |
