Product Details:
|
| Chassis Brand: | Mercedes Benz Actros 4141 | Engine Model: | OM501LA.III/17 |
|---|---|---|---|
| Number Of Concrete Pump Sections: | 4 | Pumping Head Of Concrete: | 47m |
| Condition: | Used | Capacity: | 180 M3/h |
| Year Model: | 2013 | Type: | Concrete Pump |
| High Light: | Zoomlion 47 Used Concrete Pump Truck,Euro3 Used Concrete Pump Truck,ZLJ5339THB |
||

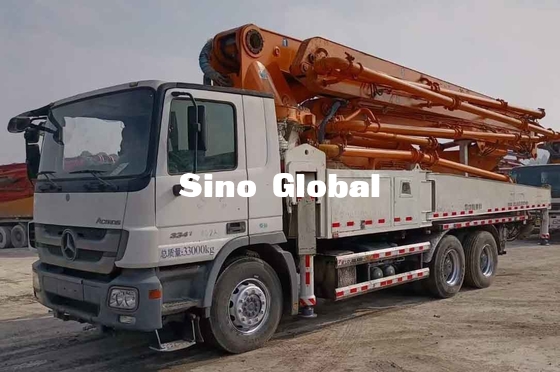

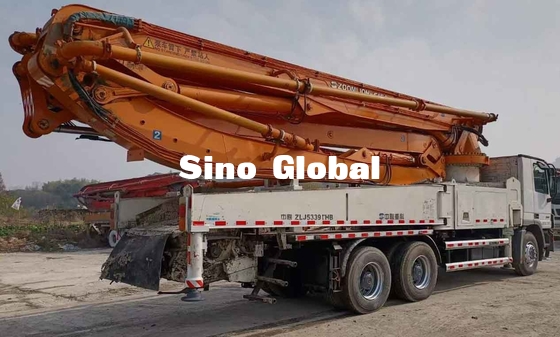

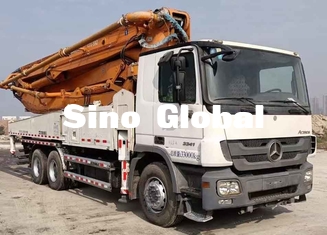

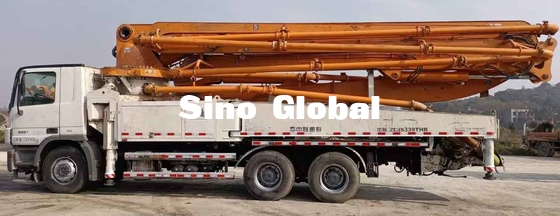

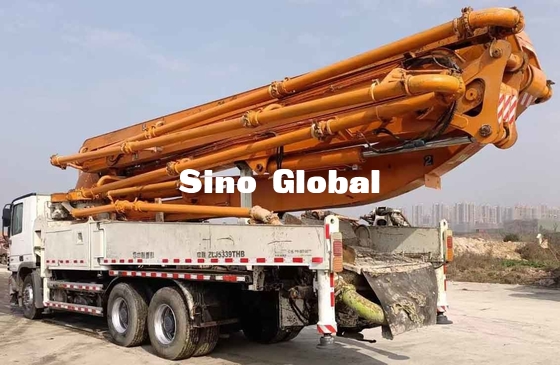

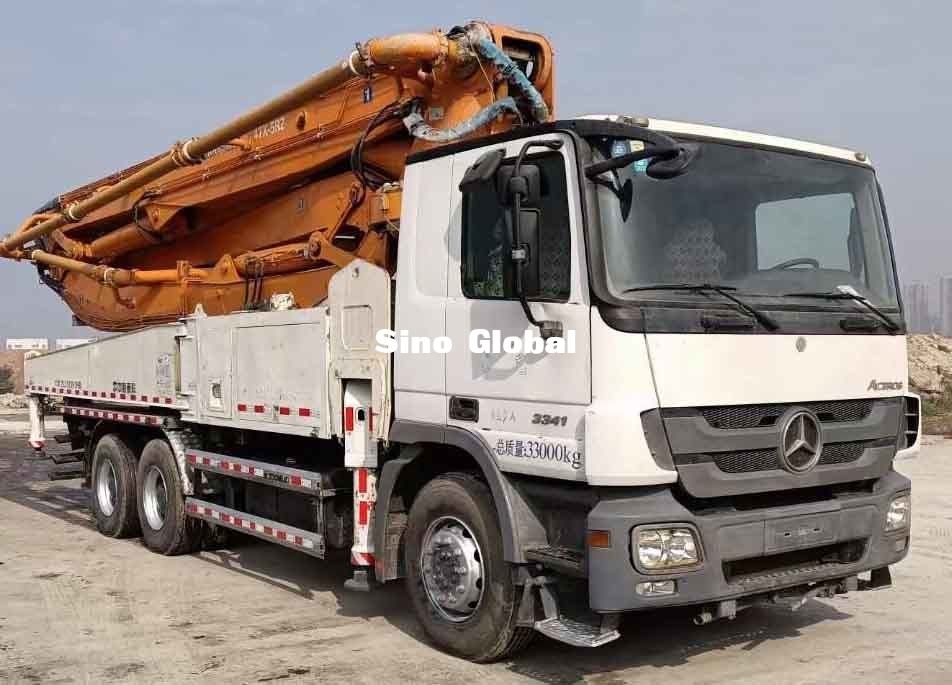

Used Zoomlion 47 Concrete Pump Truck With Mercedes Benz 3341 2013 Model
| Brand | Zoomlion | |
| Chassis Brand | Mercedes Benz Actros 4141 | |
| Model | Zoomlion ZLJ5339THB 47 | |
| Released date | 2013 | |
| Chassis | Cabin | Actros 4141 |
| Drive mode | 8*4 | |
| Engine model | OM501LA.III/17 | |
| Emissionstandard | Euro3/11.946L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2000/1080 | |
| Transmission model | RTLO16918B 18 forward 4 reverse |
|
| Rear axle: ratio/loading capacity | V Rod Left Rear/23.4 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 2020+4280+1350 | |
| Tire | 315/80R22.5 | |
| GVW (Kg) | 40900 | |
| Overall dimension(mm) | 13155*2500*4000 | |
| Boom&Pump system | Vertical reach | 47m/4 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 170/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
