Product Details:
|
| Brand: | Zoomlion | Chassis Brand: | Mercedes Benz Actros 4141 |
|---|---|---|---|
| Model: | ZLJ5440THBK 56X-6RZ | Engine Model: | OM501LA.III/17 |
| Emission Standard: | Euro3/11.946L | Max Output Power(Kw/rpm): | 300/1800 |
| Max Torque(N·m/rpm): | 2000/1080 | GVW (Kg): | 43171 |
| Vertical Reach: | 56m/6 Section | Output (Low/High-pressure): | 180/120m³/h |
| High Light: | Concrete Pump Truck With Boom Used,56M Concrete Pump Truck With Boom Used,56X-6RZ used pump truck |
||

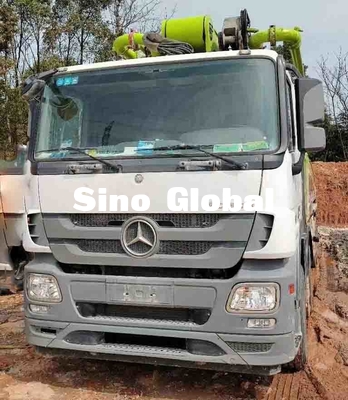

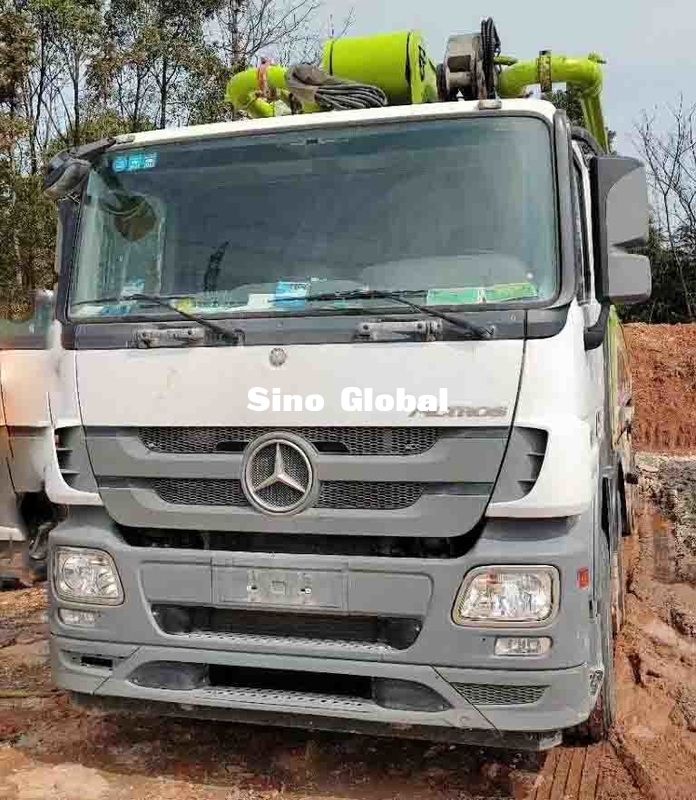

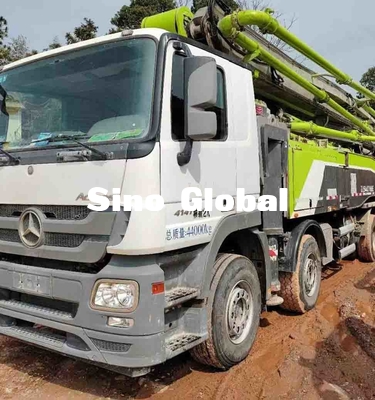

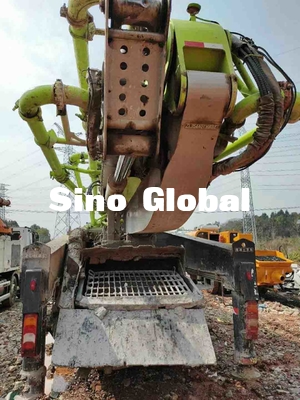

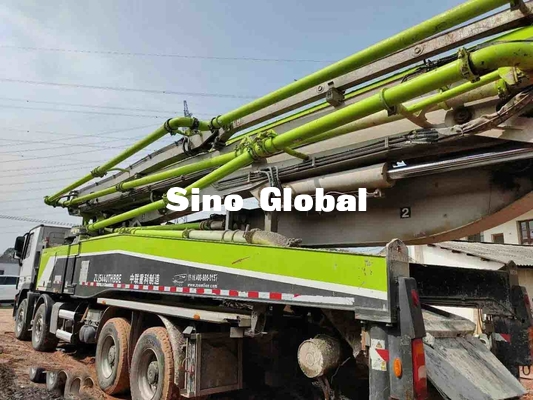

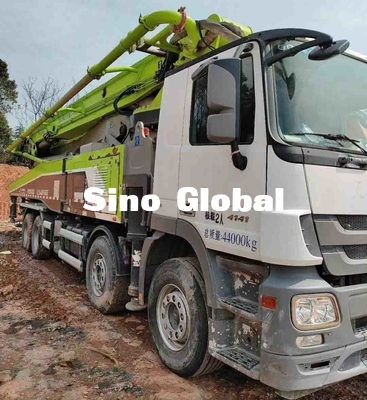

Used Zoomlion 56M concrete pump truck with Mercedes Benz Model 2015
| Brand | Zoomlion | |
| Chassis Brand | Mercedes Benz Actros 4141 | |
| Model | ZLJ5440THBK 56X-6RZ | |
| Released date | 2015 | |
| Chassis | Cabin | Actros 4141 |
| Drive mode | 8*4 | |
| Engine model | OM501LA.III/17 | |
| Emissionstandard | Euro3/11.946L | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2000/1080 | |
| Transmission model | RTLO16918B 18 forward 4 reverse |
|
| Rear axle: ratio/loading capacity | V Rod Left Rear/23.4 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 2020+4280+1350 | |
| Tire | 315/80R22.5 | |
| GVW (Kg) | 43171 | |
| Overall dimension(mm) | 13877×2500×3966 | |
| Boom&Pump system | Vertical reach | 56m/6 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 180/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
