Product Details:
|
| Chassis Brand: | Isuzu | Model: | SY5313THB 46E |
|---|---|---|---|
| Engine Model: | Isuzu6WF1A | Emissions Tandard: | Euro3/14.256L |
| Max Output Power(Kw/rpm): | 265/1800 | Cabin: | Isuzu CYZ51Q |
| GVW (Kg): | 32800 | Overall Dimension(mm): | 11520*2500*3990 |
| Pressure (Low/High-pressure): | 8.3/12Mpa | Output (Low/High-pressure): | 170/120m³/h |
| High Light: | 46M Used Concrete Pump Truck,Euro3 Used Concrete Pump Truck,Used sany concrete pump |
||

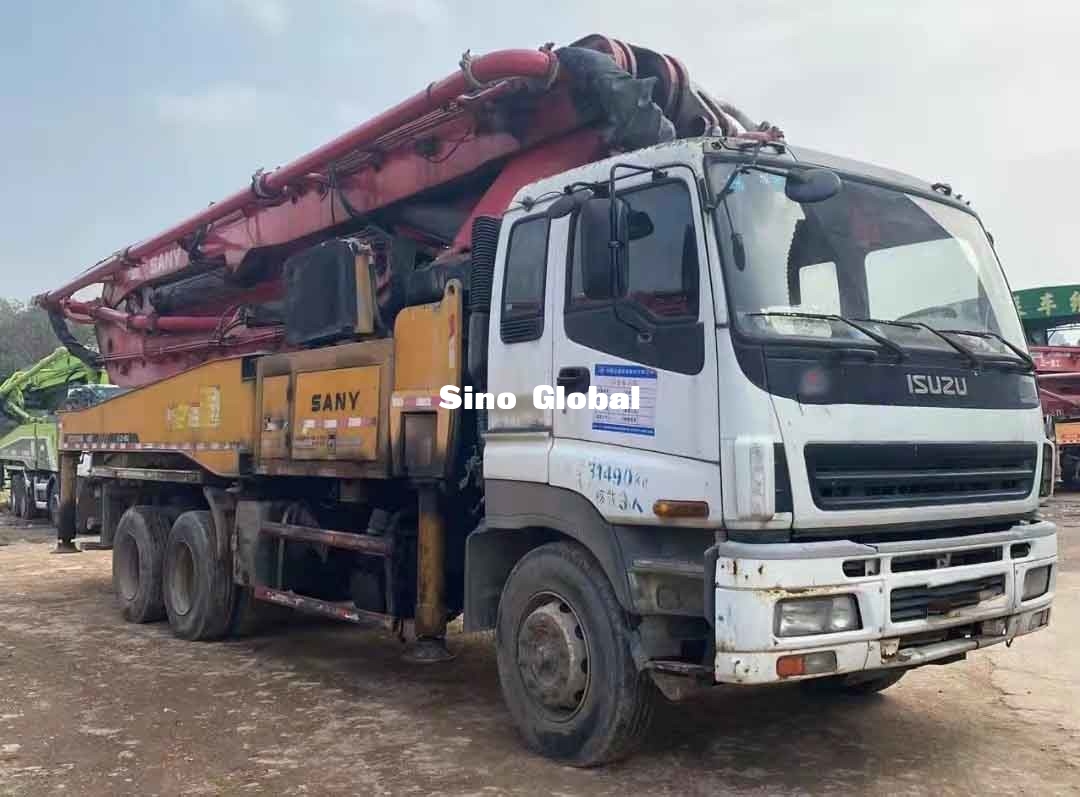

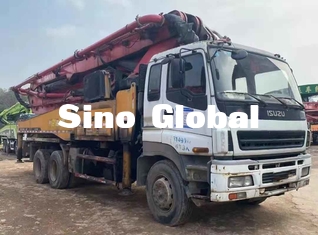

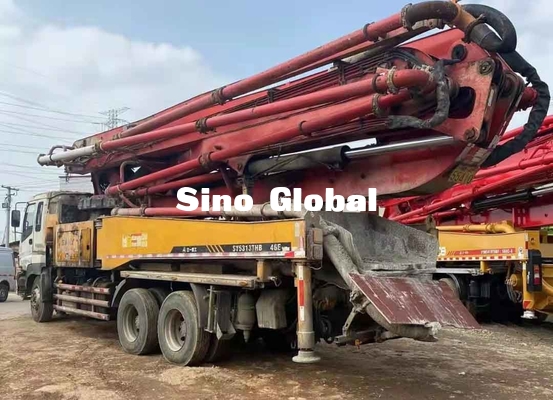

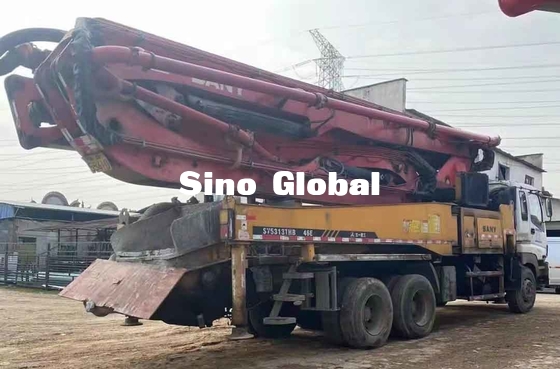

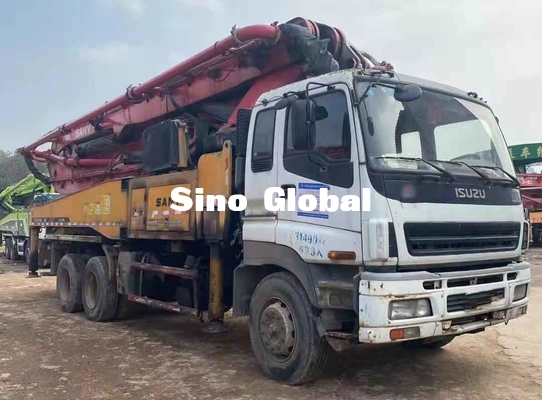

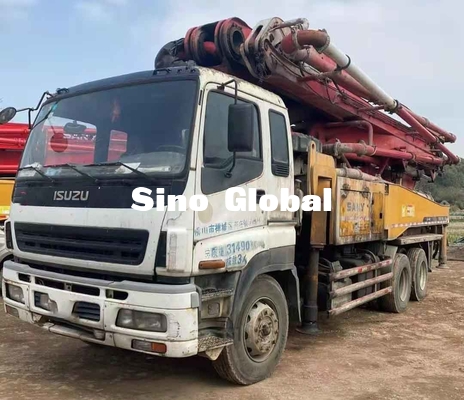

Used Sany 46M concrete Pump with Isuzu Chassis Model 2012
| Brand | Sany | |
| Chassis Brand | Isuzu | |
| Model | SY5313THB 46E | |
| Released date | 2012 | |
| Chassis | Cabin | Isuzu CYZ51Q |
| Drive mode | 6*4 | |
| Engine model | Isuzu6WF1A | |
| Emissionstandard | Euro3/14.256L | |
| Max output power(Kw/rpm) | 265/1800 | |
| Max torque(N·m) | 2059 | |
| Rear axle: ratio/loading capacity | 24.8 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 4595+1310 | |
| Tire | 295/80R22.5 | |
| GVW (Kg) | 32800 | |
| Overall dimension(mm) | 11520*2500*3990 | |
| Boom&Pump system | Vertical reach | 46m/5 section |
| Pipe size | 125mm | |
| End Hose(L*D) | 3000*125mm | |
| Output (Low/High-pressure) | 170/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
