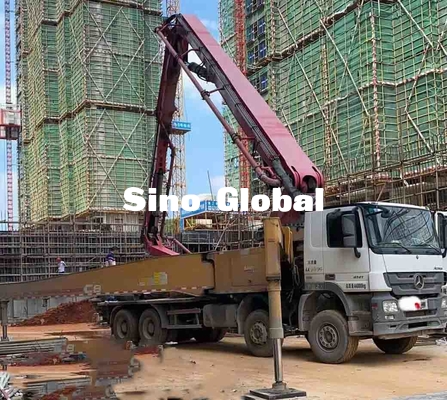

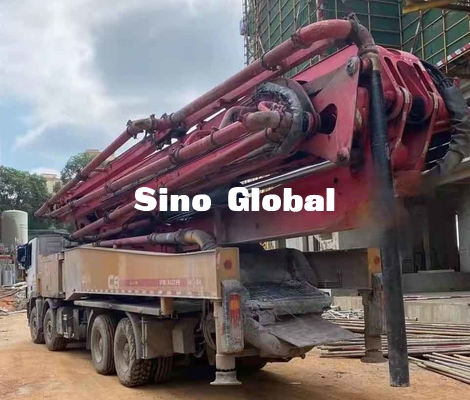

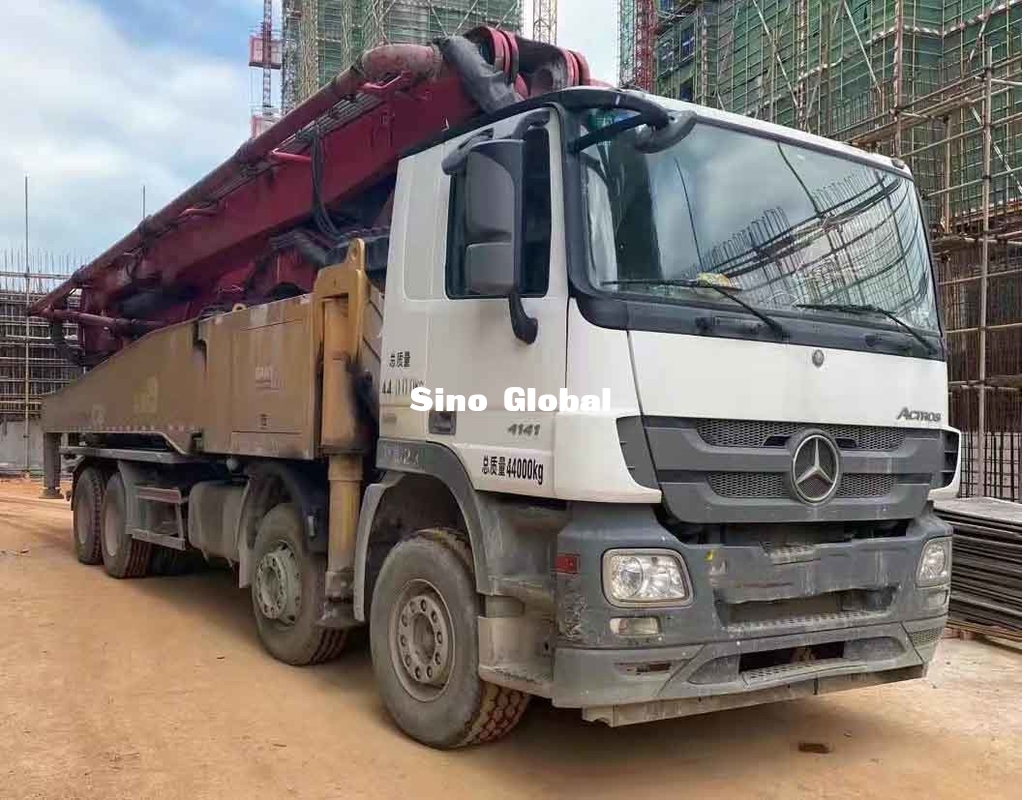

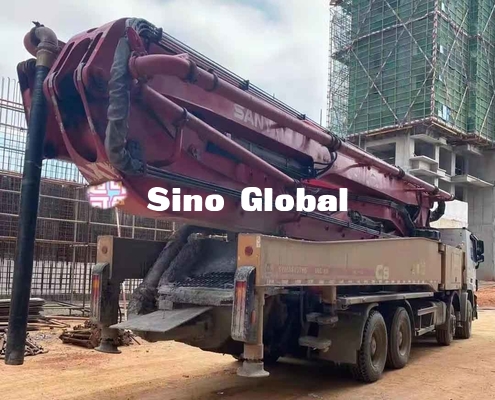

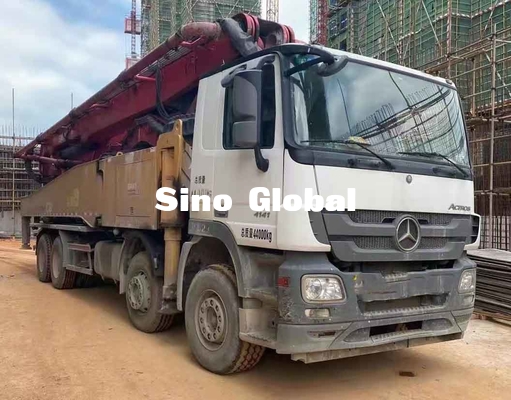

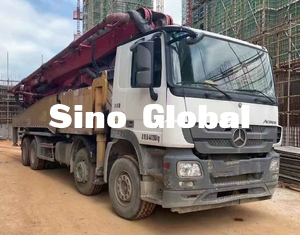

Product Details:
|
| Concrete Pump Brand: | Sany | Engine Model: | OM501LA.Ⅳ/3 |
|---|---|---|---|
| Engine Power: | 300/1800 KW/rpm | Engine Emission Standard: | Tier Ⅳ / Tier III |
| Chassis: | BENZ Actros 4141 | Empty Weight: | 42500 Kg |
| Vertical Reach: | 56 M | Number Of Concrete Pump Sections: | 6 |
| Fuel Tank Capacity: | 400 L | Fuel Type: | Diesel Fuel |
| Outline Dimensions (Length′ Width ′Height): | 13.85 M × 2.5 M × 4 M | ||
| High Light: | Benz Chassis Used Concrete Pump Truck,56M Used Concrete Pump Truck,Model 2018Concrete Pump Truck |
||
| Product Discription | |||
| Item | Parameter | ||
| Concrete pump brand | Sany | ||
| Engine model | OM501LA.Ⅳ/3 | ||
| Outline dimensions (Length′ Width ′Height) | 13.85 m × 2.5 m × 4 m | ||
| Fuel type | Diesel fuel | ||
| Engine emission standard | Tier Ⅳ / Tier III | ||
| Engine Power | 300/1800 kW/rpm | ||
| Chassis | BENZ Actros 4141 | ||
| Empty weight | 42500 kg | ||
| Vertical reach | 56 m | ||
| Horizontal reach | 51 m | ||
| Reach depth | 36.6 m | ||
| Unfolding reach | 15.2 m | ||
| 1st section-Length | 11.39m | ||
| 1st section-Articulation | 90° | ||
| 2nd section-Length | 9.23m | ||
| 2nd section-Articulation | 180° | ||
| 3rd section-Length | 8.75m | ||
| 3rd section-Articulation | 180° | ||
| 4th section-Length | 11.07m | ||
| 4th section-Articulation | 240° | ||
| 5th section-Length | 8.08m | ||
| 5th section-Articulation | 210° | ||
| 6th section-Length | 3.35m | ||
| 6th section-Articulation | 110° | ||
| Rotation | ±360 º | ||
| Outrigger spread L-R-Front | 9.47m | ||
| Outrigger spread L-R-Rear | 12.68m | ||
| Output (Low/High-pressure) | 180/125 m³/h | ||
| Pressure (Low/High-pressure) | 8.3/12 Mpa | ||
| Max. strokes per minute (Low/High-pressure) | 29/19 times/min | ||
| Delivery cylinder diameter | 0.26m | ||
| Stroke length | 2.1m | ||
| Hydraulic system | Open | ||
| Hydraulic system pressure | 32 Mpa | ||
| Hydraulic tank capacity | 680 L | ||
| Water tank capacity | 620 L | ||
| Pipe size | 0.125m | ||
| End hose length | 3 m | ||
| End hose diameter | 0.125m | ||
| Fuel tank capacity | 400 L | ||
| Displacement | 11.946 L | ||
| Max.speed | 80 km/h | ||
| Brake distance | ≤10/30 m/km/h | ||
