Product Details:
|
| Model: | Sany SY412C-8 2020 | Dimensions: | 10825×2490×3985 Mm |
|---|---|---|---|
| Curb Weight: | 16500 Kg | GVW: | 37000 Kg |
| Engine Model: | Hino P11C-UJ | Engine Power: | 259/2100 KW/2100 |
| High Light: | Used Concrete Mixer Truck Vehicle,Euro Ⅲ Used Concrete Mixer Truck,12M³ Used concrete mixer vehicle |
||

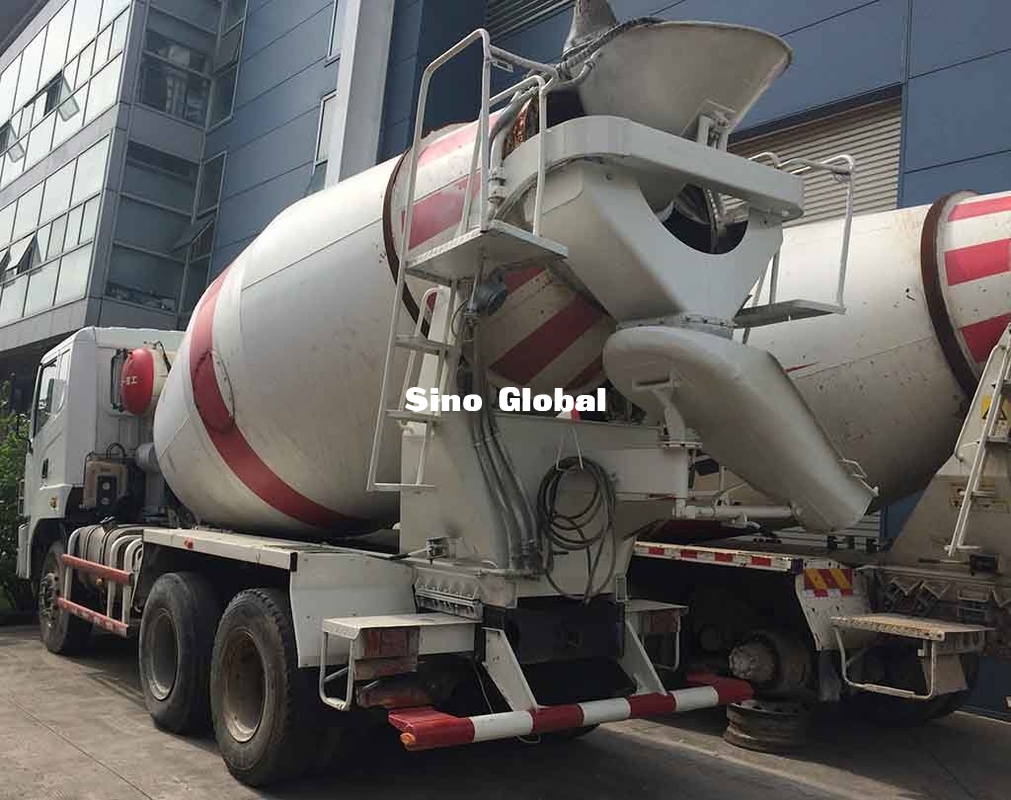

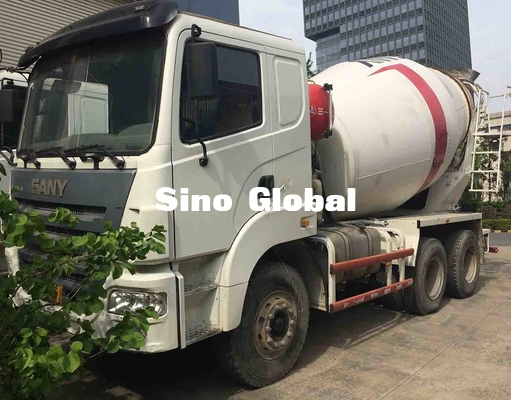

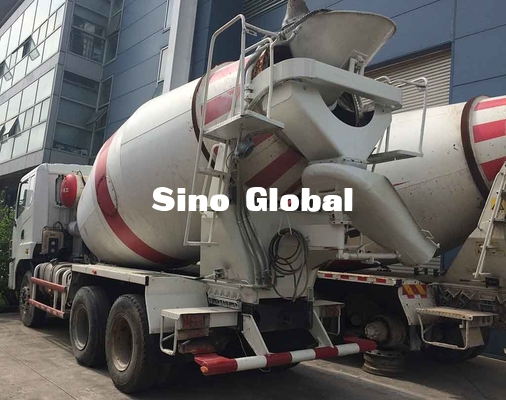

Used Sany 12M³ Truck Mix Model 2020
Sany 12M³ Truck Mix Model 2020 Discription
| Mixer Model | Sany SY412C-8R 2020 | |
| Overall Parameters | Rudder Direction | Right |
| Curb Weight(kg) | 16500 | |
| GVW(kg) | 37000 | |
| Dimension (L×H×W)(mm) | 10825×2490×3985 | |
| Wheel Base(mm) | 1800+4050+1350 | |
| Min. Ground Clearance(mm) | ≥240 | |
| Min. Turning Diameter(m) | ≤23 | |
| Fuel Consumption(L/100km) | ≤45 | |
| Braking Distance(V0=30km/h)(m) | ≤10(Full load); ≤9(Empty load) | |
|
Chassis |
Engine Model | Hino P11C-UJ |
| Displacement(L) | 10.52 | |
| Rated Power/Rev Speed(kW/rpm) | 259/2100 | |
| Max. Torque/Rev Speed(N.m/rpm) | 1460/1100 | |
| Emissions | Euro Ⅲ | |
| Gear-box | Fast 9JS150TA-B | |
| Front Axle(t) | 2×6.5 | |
| Intermediate, Rear Axle(t) | 2×13 | |
| Cab |
Sany Cab CB318 |
|
| Tyre | 11.00R20 | |
| Brake |
Pneumatic dual- circuit braking system with drum |
|
| Gas Tank Capacity(L) | 300 | |
|
Drum |
Capacity(m3) | 12 |
| Feeding Speed(m3/min) | ≥8 | |
| Discharge Residual Rate | ≤0.5% | |
| Slump(mm) | 50~210 | |
| Water Tank Capacity(L) | 600 | |
| Water Pressure(MPa) | 0.35~0.38 | |
| Motor | Rexroth A2FMT090 | |
| Reducer | PMP PMB7.1 | |
| Hydraulic Pump | Rexroth A10VGT090 | |
