Product Details:
|
| Model: | Sino Howo ZZ1257N46-8C 2017 | Kerb Weight: | 14600 Kg |
|---|---|---|---|
| Gross Weight: | 30000 Kg | Dimensions: | 9340*2550*3950mm |
| Cab Model: | SINOTRUK HW76 Lengthen Cab | Engine Power: | 273KW |
| High Light: | Used Concrete Mixer Machine Truck,Howo Used Concrete Mixer Machine Truck,Used Ready Mix Trucks 12M³ |
||

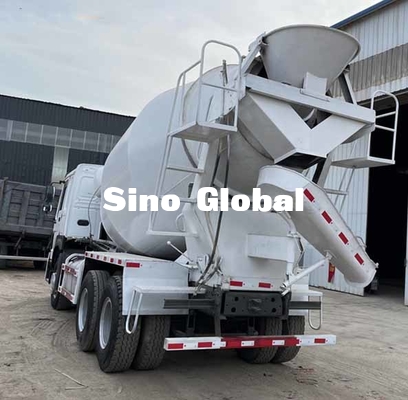

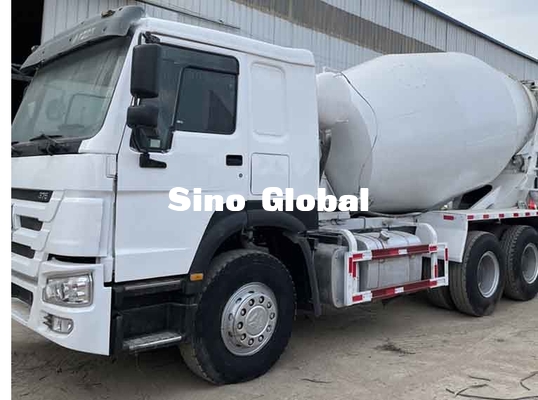

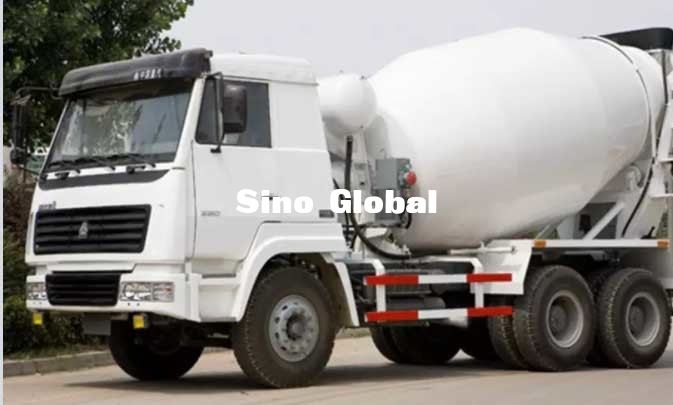

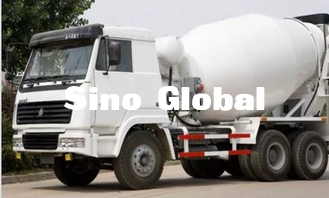

Used Sinotruk Howo 12M³ 6X4 Concrete Mixer Truck Mode 2017
|
HOWO 6X4 CONCRETE MIXERTRUCK DISCRIPTION |
||||
| Cubage |
Pump(ARK PV089MHR)+Motor(ARK MF110)+Reducer(TOP T75S) Mixing Volume(M³):12m³ Stuffing Volume(%):63.75 Feeding Speed(M³/min):≥3 Discharging Speed(M³/min):≤2 Discharge Residue(%):≤0.2 Slump Scope(mm):50～220 Drum Speed( Min):0～16 Water supply Syste:400L/Pneumatic Drum Material:8/16MnR,5/B510 ,3mm,4mm,5m |
|||
| Weight in kg | Kerb weight (Kg) | 14600 | ||
| Gross weight (Kg) | 30000 | |||
|
Dimension(mm)
|
Dimensions(mm) | Length(mm) | 9340 | |
| Width(mm) | 2550 | |||
| Height(mm) | 3950 | |||
| Wheel base (mm) | 4000+1350 | |||
| Performance | Maximum driving speed (km/h) | 92 | ||
| Fuel consumption (1/100 km) | 38 | |||
| Cab | Model |
SINOTRUK HW76 Lengthen cab
|
||
| Engine | Model | WD615.47(Euro 2) | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |||
| Horsepower | 371 | |||
| Maximum output Kw/r/min | 273/2200 | |||
| Maximum torque N.m/r/min | 1460/1300-1600 | |||
| Bore x Stroke | 126x130mm | |||
| Valve | 2 | |||
| Displacement | 9.726L | |||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | |||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | |||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle, | |||
| Brake System |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
|||
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |||
| Electrics |
Operating voltage:24V,negative grounded Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Horn,headlamps,fog lights,brake lights,indicators and reverse light |
|||
| Oil Tank | Square type-400L Aluminum alloy fuel tank | |||
