Product Details:
|
| Model: | Zoomlion QUY80-Model 2016 | Color: | Green |
|---|---|---|---|
| Max Lifting Capacity: | 80 T | Boom Lenth: | 13-58m |
| Dimensions: | 13.5×3.4×3.2m | Total Weight With Booms: | 70.8 T |
| Year: | 2016 | Brand: | Zoomlion |
| High Light: | Used Zoomlion 80 Ton Crawler Crane,crawler crane 80 ton Used,QUY80 Used crawler crane 80 ton |
||

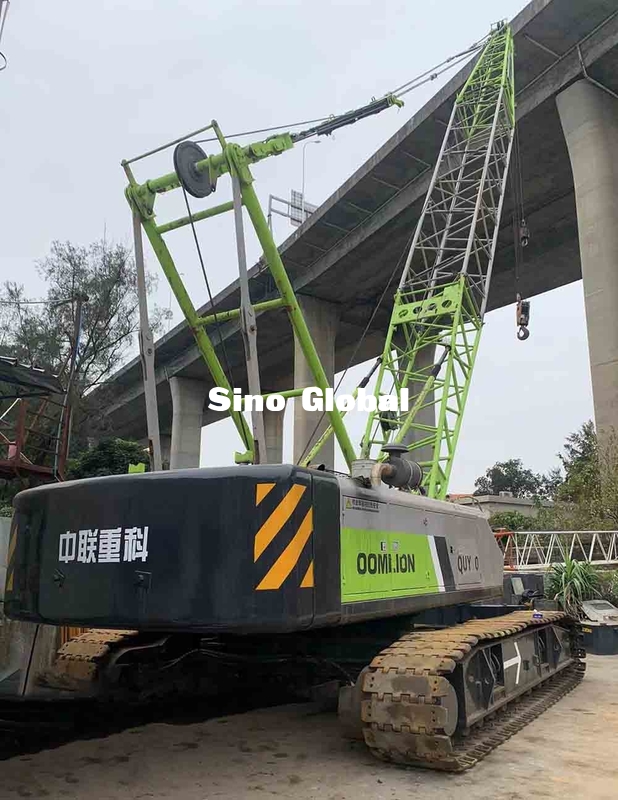

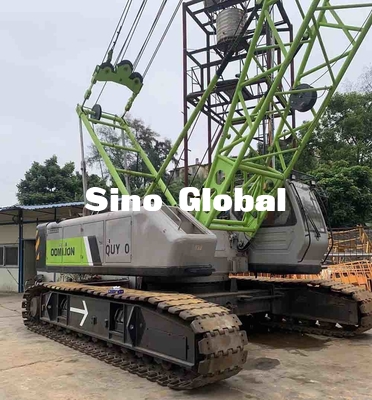

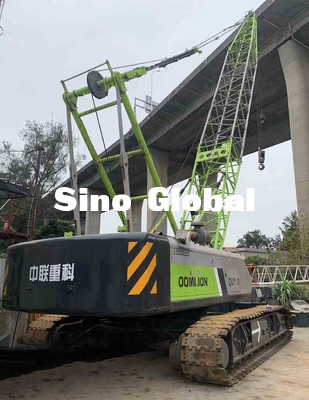

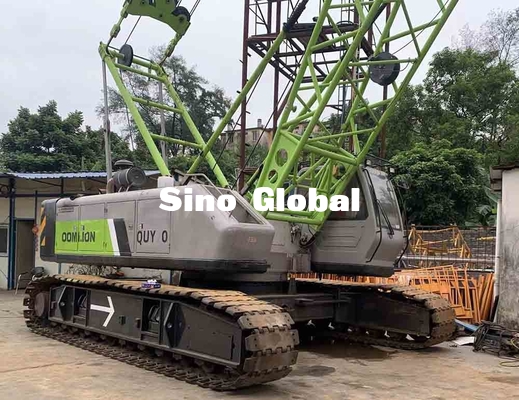

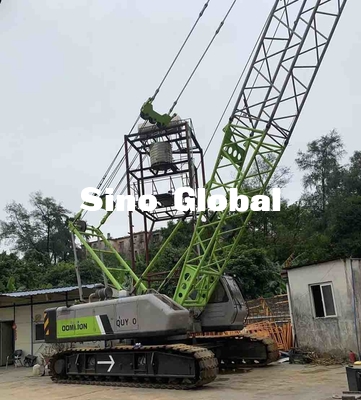

Used Zoomlion 80 Tons Crawler Crane-Model 2016
| Zoomlion QUY80 crawler Crane | Value | Remarks | ||
| Max. lifting capacity × Radius t × m | 80×4 | |||
| Deadweight with basic boom t | 70.8 | |||
| Main boom length m | 13~58 | |||
| Fixed jib length m | 6~18 | |||
| Max. lifting capacity of fixed jibt | 7 | |||
| Offset angle of fixed jib° | 10,30 | |||
| Max. length of main boom with fixed jib m | 49＋18 | |||
| Max. speed of single rope on drum | 120 | 120 | The 4th rope layer | |
| 120 | 120 | The 4th rope layer | ||
| 61 | 45 | The 4th rope layer | ||
| Slewing speedrpm | 1~2 | |||
| Traveling speed km/h | 1~1.68 | |||
| Gradeability% | 30 | |||
| Ground pressure MPa | 0.083 | |||
| Overall dimensions (L×W×H) m | 13.5×3.4×3.2m | ncl. mast, boom bottIom section | ||
| Engine | 199/2200 | 153/2200 KW/rpm | ||
| 1100/1200~1600 | 929/1300 KW/rpm | |||
| EU Stage III | Tier 3 | |||
| Crawler gauge * ground contact length * track shoe width mm | 4200×5440×800 | Crawler carrier retracted | ||
| 2600×5440×800 | Crawler carrier extended | |||
