Product Details:
|
| Model: | QUY70-Model 2017 | Brand: | Zoomlion |
|---|---|---|---|
| Max Lifting Capacity: | 70 T | Weight With Boom: | 61 T |
| Max Length Of Main Boom With Fixed Jib: | 42+18m | Dimensions: | 12400*3300*3200mm |
| Rated Power: | 175/220kw/Rpm | Gradeality: | 30% |
| High Light: | Used Crawler Crane 70 Ton,Used Crawler Crane Zoomlion,Used Zoomlion Crawler Crane |
||

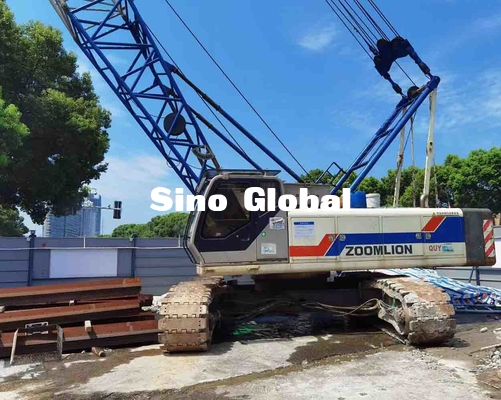

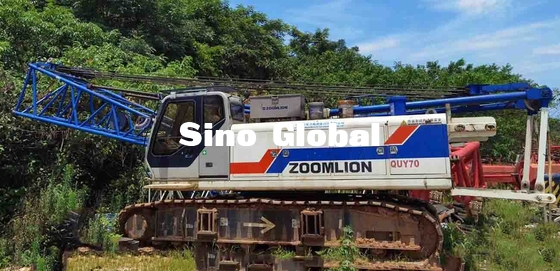

Used Zoomlion 70 Tons Crawler Crane-Model 2017
|
Item |
Unit |
Value |
Remarks |
|
| Max. lifting capacity x radius | txm | 70x3.8 | ||
| Deadweight with basic boom | t | 61 | ||
| Main boom length | m | 12-57 | ||
| Fixed jib length | m | 6~18 | ||
| Max. lifting capacity on fixed jib | t | 6.4 | ||
| Fixed jib angle | ° | 10,30 | ||
| Max. length of main boom with fixed jib | m | 42+18 | ||
| Hoisting winch 1 | m/min | 120 | The4"rope layer | |
| Single rope speed of | Hoisting winch 2 | m/min | 120 | The4"rope layer |
| winches | Derricking winch | m/min | 45 | The4"rope layer |
| Slewing speed | rpm | 0-2.4 | ||
| Traveling speed | km/h | 0-1.35 | ||
| Gradeability | % | 30 | ||
| Ground pressure | MPa | 0.074 | ||
| Overall dimensions (LxWxH) | mm | 12400 x 3300 x 3200 | With A-frame and boom pivot section | |
| Weichai | ||||
| Rated power/ rotational speed | kW/rpm | 175/2200 | ||
| Max. output torque/ rotational speed | Nm/rpm | 1000/1400-1600 | ||
| Engine | Exhaust emission standard | EU Stage II/ II | ||
| USA Cummins | ||||
| Rated power/ rotational speed | kW/rpm | 153/1800 | ||
| Max. output torque/ rotational speed | Nm/rpm | 929/1300 | ||
| Exhaust emission standard | TIER3/EU stage II | |||
| Distance between track center x crawler contact length x crawler width | mm | 2540 x 5150x1020 | Crawler carrier retracted | |
| Distance between track center x crawler contact length x crawler width | mm | 4000 x 5150x1020 | Crawler carrier extended | |
