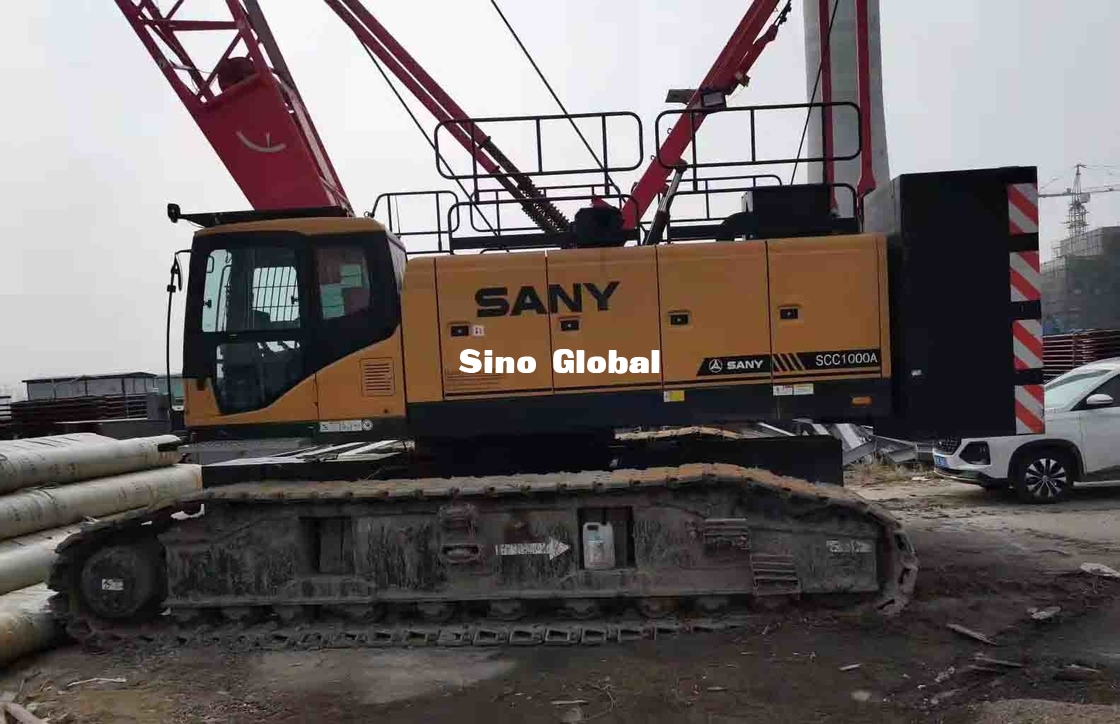

Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length

Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length
Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length

Large Image :  Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length

Product Details:
Place of Origin: China
Brand Name: Sany
Model Number: SCC1000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Containers, RORO ship, Cargo bulk ship
Delivery Time: 45-50 days after the down payment
Payment Terms: T/T, L/C
Supply Ability: 15 untis per month

Sany SCC1000A Used Crawler Crane 100 Ton with 13m 64m Boom length

Description
Boom Length: 13~64m Travel Speed: 21km/h
Engine Model: 6HK1/7.79L Rated Power: 212/2000 KW/ Rpm
Weight Of Machine With Basic Boom: 91t Machine Transport Dimension (with Crawlers And Boom Base) L×W×H: 13300×3490×3450mm
Machine Transport Dimension (without Crawlers And Boom Base) L×W×H: 8450×3000×3050mm Jib Angle: 15,30°
High Light:

Used Crawler Crane 100 Ton

,

SCC1000A Used Crawler Crane

,

crawler crane 100 ton Used

Used Sany 100 Tons Crawler Crane-Model 2016



           Product   Discription
                                    Sany SCC1000A Unit Parameter





Configuration

Max. rated lifting capacity t 100
Boom length m 13~64
Boom luffing angle ° 30~80





FJ

Max. rated lifting capacity t 11
Jib length m 9~18
Longest boom + longest jib m 52+18
Jib angle ° 15,30





Speed

Rope speed of main/aux. winch (1st layer) m/min 121
Rope speed of boom hoist winch (3rd layer) m/min 59
Swing speed rpm 2.7
Travel speed km/h 21





Wire rope

Main hoist wire rope: diameter × length φmm×m 26×240
Aux. hoist wire rope: diameter × length φmm×m 26×180
Single line pull of main/aux. hoist wire rope t 12



Engine

Model/Displacement   6HK1/7.79L
Rated power/Revolution speed kW/ rpm 212/2000











Transport

Weight of machine with basic boom t 91t
Rear counterweight t 31.2
Carbody counterweight t 5.5×2
Transport weight of basic machine (with crawler frames and boom base) t 46.5t
Transport weight of basic machine (without crawler frame)   28.5 t
Machine transport dimension (with crawlers and boom base) L×W×H mm 13300×3490×3450mm
Machine transport dimension (without crawlers and boom base) L×W×H mm 8450×3000×3050mm
Other specifications Average ground pressure (basic boom) MPa 0.091
Gradeability % 30
