Product Details:
|
| Model: | SCC750A Crawler Crane 2018 | Color: | Yellow And Red |
|---|---|---|---|
| Max. Rated Lifting Capacity: | 75 T | Boom Length: | 12 ~ 57 M |
| Engine Model: | ISUZU 6HK1\7.79 | Engine Power: | 212/2000 KW/rpm |
| Dimensions: | 12500×3200×3400mm | Year: | 2018 |
| High Light: | Used Crawler Crane Sany,SCC750A Used Crawler Crane,Used 75 Ton Crawler Crane |
||

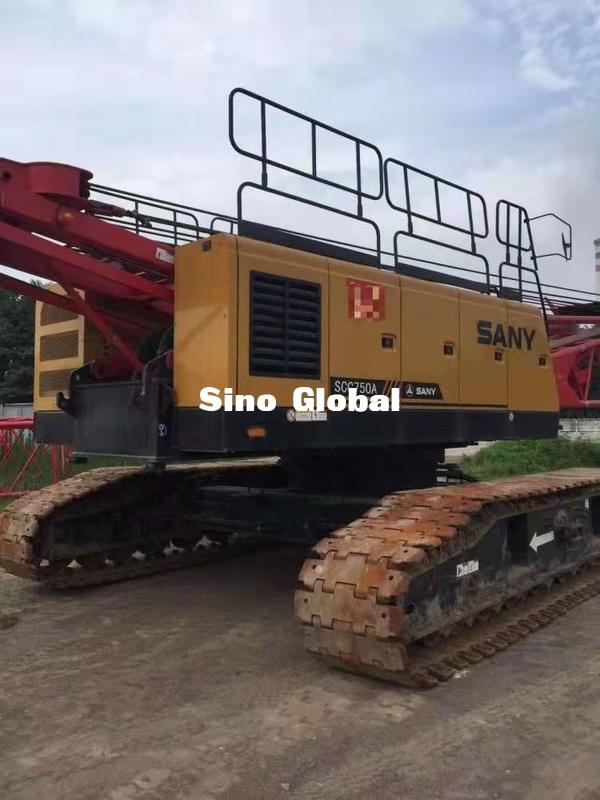

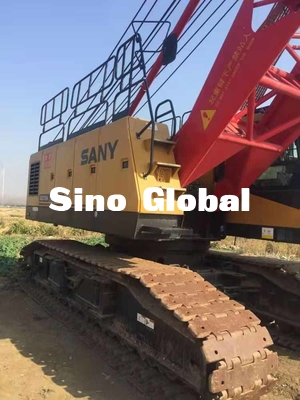

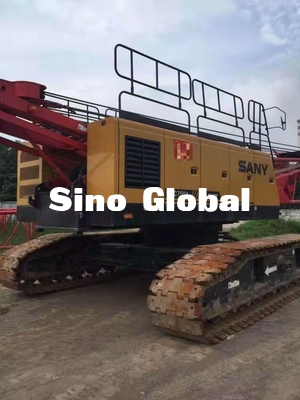

Used Sany 75 tons SCC750A Crawler Crane Model 2018
| Sany SCC750A Disription 2018 | |||
| Performance Indicators | Unit | Parameter | |
|

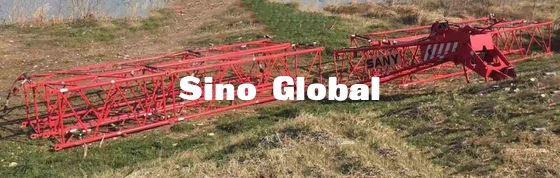

Boom Configuration |
Max. rated lifting capacity | t | 75 |
| Largest lifting moment | t m | 288 | |
| Boom length | m | 12 ~ 57 | |
| Main boom luffing angle | ° | 30 ~ 80 | |
|
Fixed jib |
Max. rated lifting capacity | t | 7.5 |
| Jib length | m | 9 ~ 18 | |
| Longest boom + jib | m | 45+18 | |
|
Speed |
Rope speed of main/auxiliary load hoist winch | m/min | 0 ~ 135 |
| Rope speed of boom hoist winch (3rd layer) | m/min | 0 ~ 80 | |
| Swing speed | rpm | 0 ~ 2.5 | |
| Travel speed | km/h | 0 ~ 1.7 | |
|
Wire rope |
Main load hoist wire rope: Diameter × length | φmm × m | φ22 × 240 |
| Auxiliary load hoist wire rope: Diameter × length | φmm × m | φ22 × 150 | |
| Rated single line pull of main/aux. load hoist wire rope | t | 7.5 | |
|
Engine |
Model/Displacement | L | ISUZU 6HK17.79 |
| Rated power/revolution speed | kW/rpm | 212/2000 | |
|
Transport |
Weight of basic boom | t | 67 |

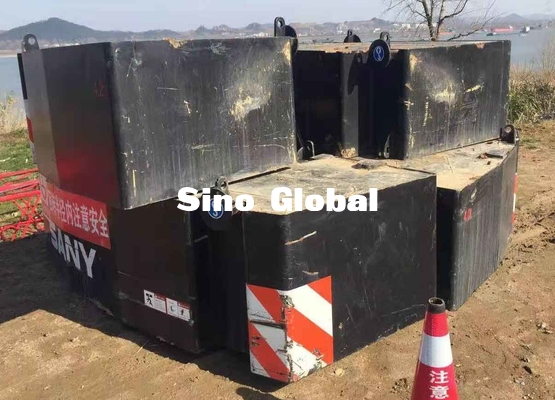

| Rear counterweight | t | 25 | |
| Transport weight of basic machine (with crawler frames and boom base) | t | 38.2 | |
| Transport weight of basic machine (without crawler frames) | t | 22.9 | |
| Machine transport dimension (with crawler frames and boom base) L x W x H | mm | 12500×3200×3400 | |
| Machine transport dimension (without crawler frames) L x W x H | mm | 12500×3000×3100 | |
| Other specifications | Average ground pressure (basic boom) | 0.075 MPa | |
| Gradeability | 30% | ||
