Product Details:
|
| Model: | Sany HBT12020C 2020 | Color: | Yellow And Red |
|---|---|---|---|
| Engine Rated Power: | 297 Kw | Dimensions: | 7380 × 2125 × 2950mm |
| Rated Rotary Speed: | 1900 Rpm | Weight: | 9310 Kg |
| High Light: | Sany Trailer Concrete Pump Second Hand,297kw Trailer Concrete Pump Second Hand,HBT12020C second hand Trailer Concrete Pump |
||

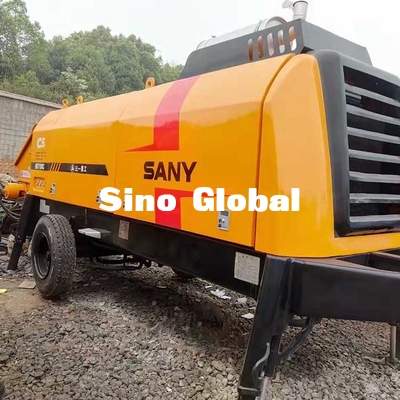

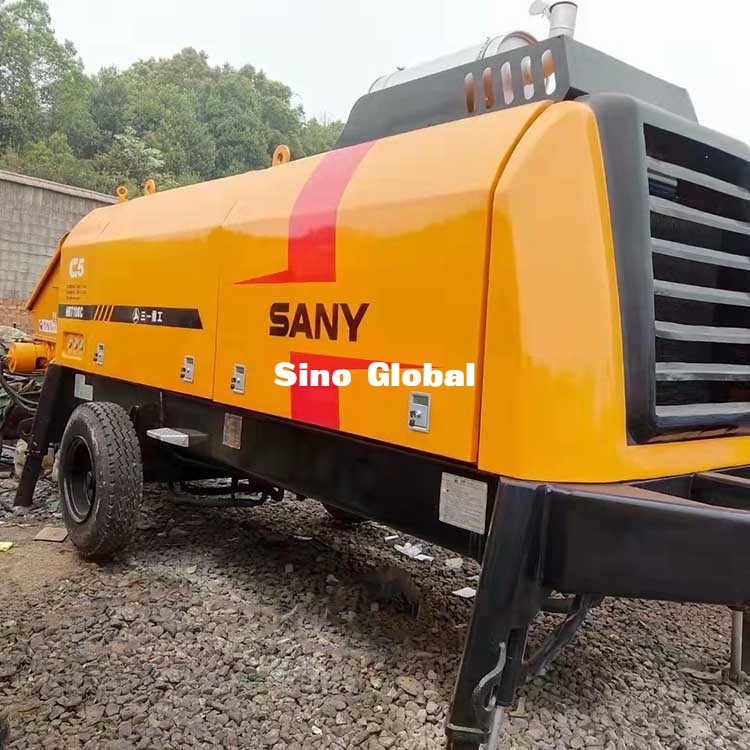

Used Sany HBT12020C Trailer Pump Model 2020
| Model | Sany HBT12020C-5M 2020 |
| Place of Production | China |
| Max.delivery pressure(theoretical) Low pressure/High pressure(Mpa) | 11 / 21 |
| Max.concrete output(theoretical) Low pressure/High pressure(m3/h) | 120 / 75 |
| Engine rated power(kw) | 297 |
| Rated Rotary Speed (rpm) | 1900 |
|
Delivery cylinder Bore (mm) *Strok(mm) |
Φ200 × 2100 |

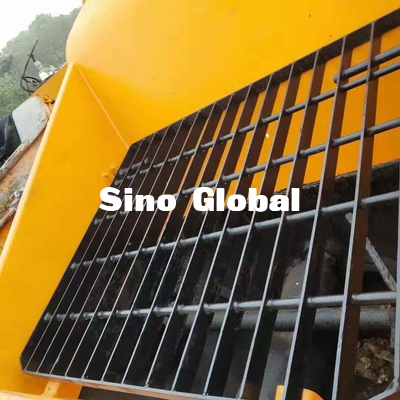

| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1420 |
| Dimension (L*W*H) (mm) |
7380 × 2125 × 2950mm |
| Gross weight (kg) | 9310 |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
