Product Details:
|
| Model: | Used Sany THB60C Electric Trailer Pump Model 2015 | Color: | Yellow And Red |
|---|---|---|---|
| Dimensions: | 6185 × 2100 × 2200mm | Weight: | 5790kg |
| Motor Rated Power: | 90kw | Type: | S-Valve |
| Highlight: | Used Sany Trailer Mounted Concrete Pump,90kw Sany Trailer Mounted Concrete Pump Used,Used Sany Concrete Pump THB60C |
||

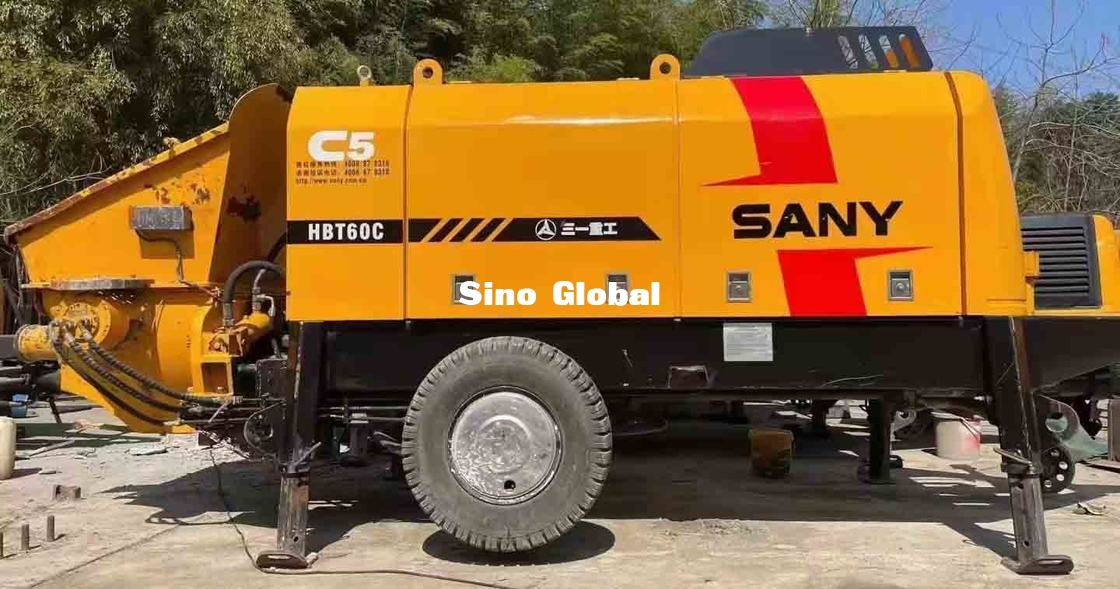

Used Sany THB60C Electric Trailer Pump Model 2015
| Model | sany HBT60C5 2015 |
| Place of Production | China |
| Max.delivery pressure(theoretical) Low pressure/High pressure(Mpa) | 8 /13 |
| Max.concrete output(theoretical) Low pressure/High pressure(m3/h) | 65 / 40 |
| Motor rated power (kw) | 90 |
| Rated Rotary Speed (rpm) | 1480 |
| Delivery cylinder Bore (mm) *Strok(mm) | Φ200 × 1400 |
| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1320 |
| Dimension (L*W*H) (mm) | 6185 × 2100 × 2200 |
| Gross weight (kg) | 5790 |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
Contact Person: Ms. Lily
Tel: +8613973151690
