Product Details:
|
| Model: | Used Zoomlion THBT90.18.195RSU Trailer Pump Model 2018 | Concrete Delivery Pressure MPa: | 18/10 |
|---|---|---|---|
| Dimensions: | 6800 × 2200 × 2700mm | Weight: | 7600kg |
| Engine Model: | BF6M1013ECP | Engine Rated Power: | 195kw |
| Highlight: | Used Concrete Trailer Pump 195kw,93m3/h Used Concrete Trailer Pump |
||

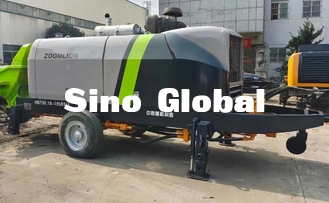

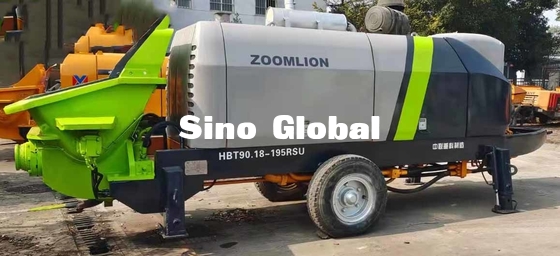

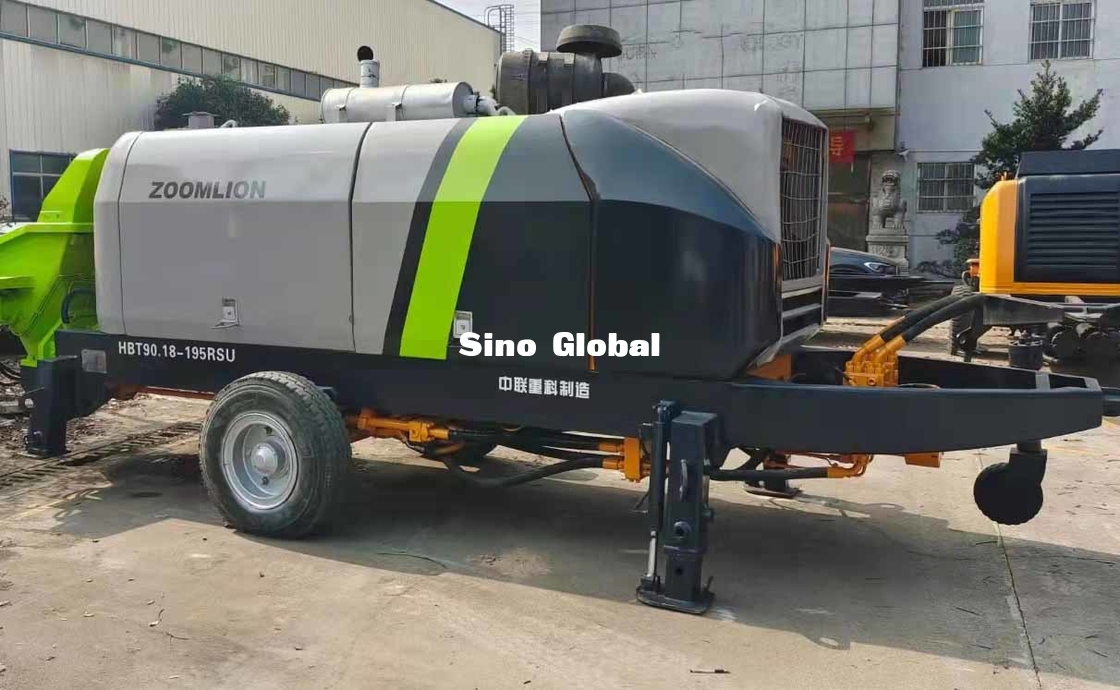

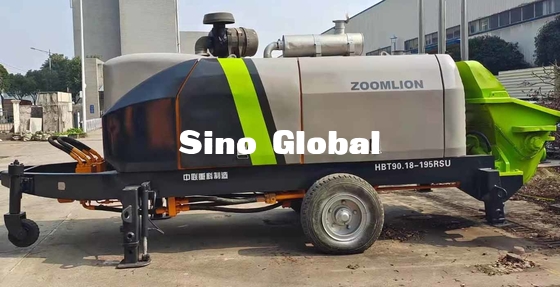

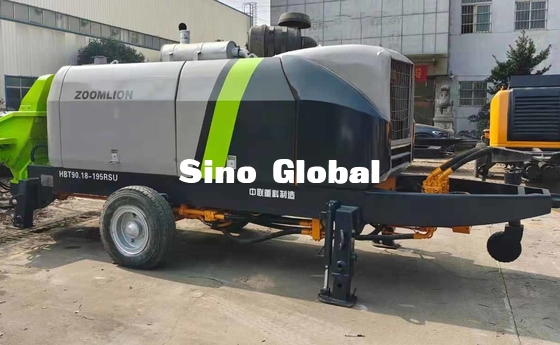

Used Zoomlion THBT90.18.195RSU Trailer Pump Model 2018
| Parameters of Zoomlion HBT90.18.195RSU | |||
| Value | |||
| Whole performance of pump | Max. theo. concrete output(L./H.) | m3/h | 93/54 |
| Max.concrete pumping pressure (H. /L.) | MPa | 18/10 | |
| Distributing valve style | / | S pipe valve | |
| Concrete cylinder diameter×stroke | mm | φ200×1800 | |
| Hopper capacity×feeding height | L×mm | 600×1450 | |
| Outlet diameter | mm | Φ180 | |
| Power system | Diesel engine model | / | BF6M1013ECP |
| Rated power | kW | 195 | |
| Rated speed | r/min | 2300 | |
| Hydraulic system | Circuit type | / | Open circuit |
| Pumping system pressure | MPa | 34 | |
| Distributing system pressure | MPa | 23 | |
| Mixing system pressure | MPa | 14 | |
| Max mixing speed | r/min | 42 | |
| Capacity of oil tank | L | 600 | |
| Others | Max. aggregate diameter/ Inside diameter of delivering pipe |
mm | 50/Φ150 40/Φ125 |
| Inside diameter of delivering pipe | mm | Φ125/Φ150 | |
| Dimensions:length×width×height | mm | 6800 × 2200 × 2700 | |
| Weight | kg | 7600 | |
