Product Details:
|
| Model: | Sany SY310C-8W | Weight(kg): | 13600 |
|---|---|---|---|
| Dimension (L×H×W)(mm): | 9300×2500×3985 | Wheel Base: | 3720+1350 Mm |
| Engine Model: | Weichai WP8.340E51 | Rated Power/Rev Speed(kW/rpm): | 250/2100 |
| High Light: | 10M³ Used Concrete Mixer Truck,Sany Used Concrete Mixer Truck,Construction Industry Used truck mixer sany |
||

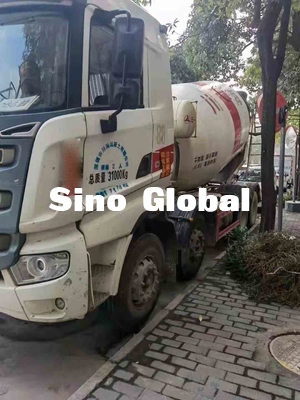

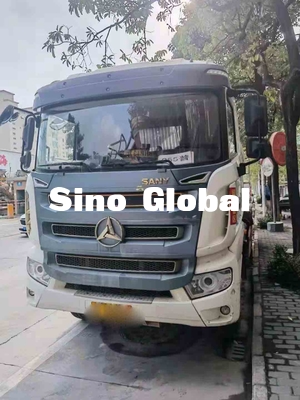

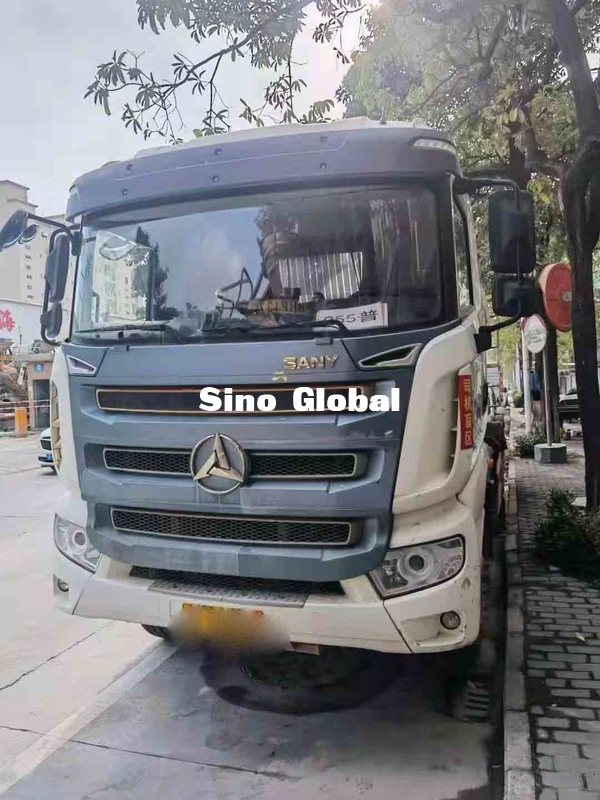

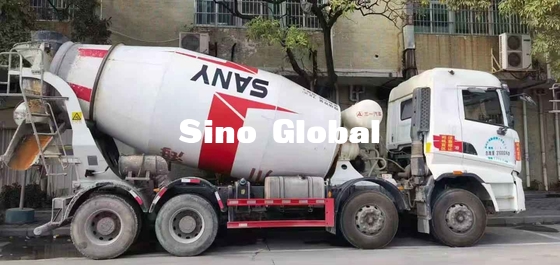

Used Sany 10M³ Truck Mix Model 2020
| Model | SY310C-8W | |
| 整车参数 Overall Parameters | Rudder Direction | Left |
| Curb Weight(kg) | 13600 | |
| GVW(kg) | 37600 | |
| Dimension (L×H×W)(mm) | 9300×2500×3985 | |
| Wheel Base(mm) | 3720+1350 | |
| Min. Ground Clearance(mm) | ≥240 | |
| Min. Turning Diameter(m) | ≤18 | |
| Fuel Consumption(L/100km) | ≤42 | |
| Braking Distance(V0=30km/h)(m) | ≤10(Full load); ≤9(Empty load) | |
|
Chassis |
Engine Model | Weichai WP8.340E51 |
| Displacement(L) | 7.8 | |
| Rated Power/Rev Speed(kW/rpm) | 250/2100 | |
| Max. Torque/Rev Speed(N.m/rpm) | 1400/(1200-1600) | |
| Emissions | China Ⅴ | |
| Gear-box | Fast 12JSD160TA | |
| Front Axle(t) | 9 | |
| Intermediate, Rear Axle(t) | 2×16 | |
| Cab |
Sany Cab CB318 |
|
| Tyre | 11.00R20 | |
| Brake |
Pneumatic dual- circuit braking system with drum |
|
| Fuel Tank Capacity(L) | 200 | |
|

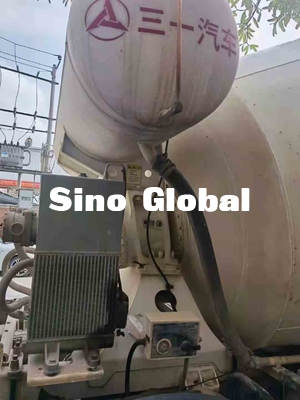

Drum |
Capacity(m3) | 10 |
| Feeding Speed(m3/min) | ≥8 | |
| Discharge Speed(m3/min) | ≥5 | |
| Discharge Residual Rate | ≤0.5% | |
| Slump(mm) | 50~210 | |
| Water Tank Capacity(L) | 400 | |
| Water Pressure(MPa) | 0.35~0.38 | |
| Reducer | PMP PMB6.5 | |
| Hydraulic Pump | Sany P4VC090NHW | |
| Motor | Sany M2F090NCWV | |
