Product Details:
|
| High Light: | SSL-08HD,CE Electrical Scissor Lift,7.8m Working Height Man Lift |
||
|---|---|---|---|

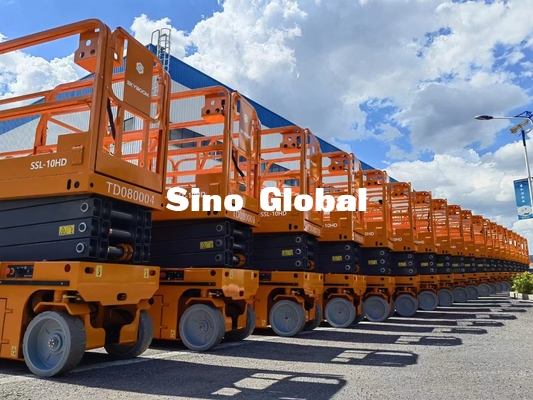

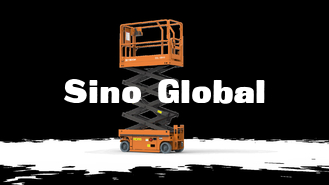

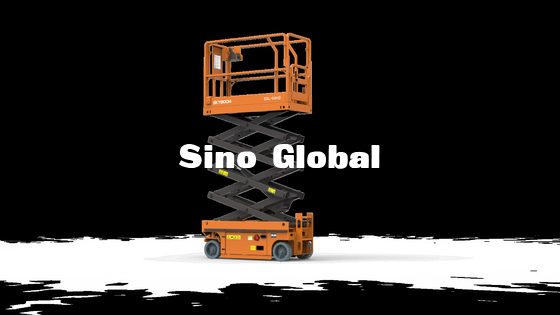

Skyboom Electrical Scissor Lift
| Model | SSL-08HD |
| Working height maximum(A) | 7.8m |
| Platform height maximum(B) | 5.8m |
| length-stowed | 1.8m |
| Width-stowed | 0.78m |
| Height -stowed -folding rails | 2.18 |
| Height (rails down) | 1.81m |

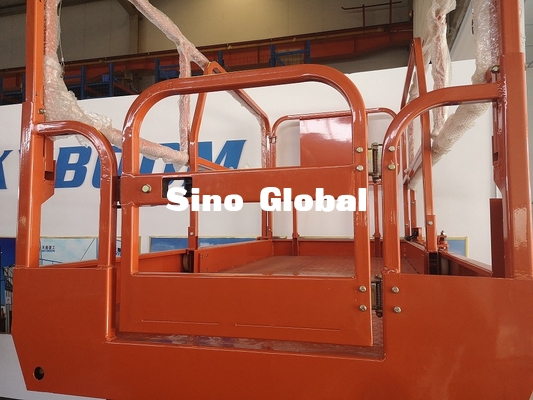

| Platform size (L*W) | 1.67m x 0.74m |
| Slide-out platform extension desk | 0.9m |
| Wheel base | 1.35m |
| Ground clearance (stowed) | 0.08m |
| With pothole guards deployed | 0.02m |
| Load capacity | 230kg |
| Max plateform occupancy (indoor/outdoor) | 2 person / 1 person |
| Drive speed (stowed) | 3.5km/h |
| Drive speed (raised) | 0.8km/h |
| Gradeability ( stowed) | 25% |
| Turning radius (inside) | 0.22m |
| Turning radius (outside) | 1.67m |
| Working slope maximum | 1.5°/3° |

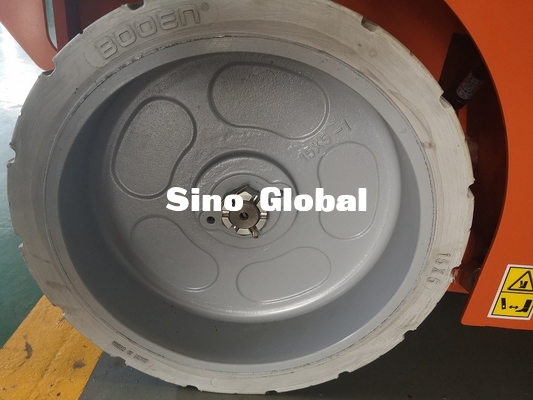

| Tyres | ￠305×100mm |

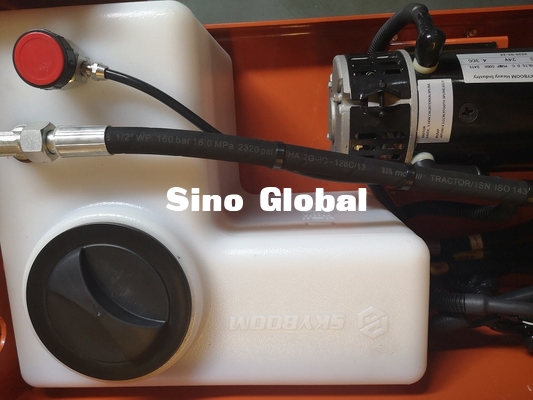

| Drive & lifting motor | |

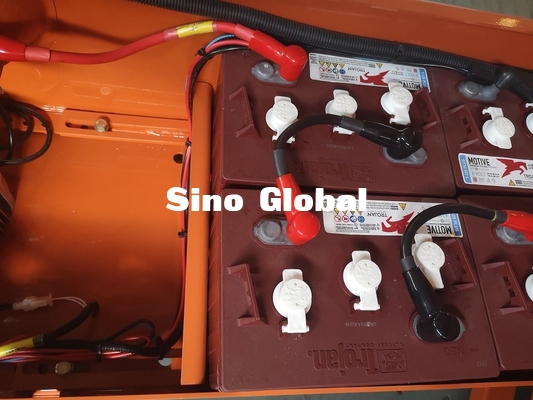

| Battery | 4*6V/240Ah |
| Integrated charger | 24V/25A |
| Weight | 1490kg |
