Product Details:
|
| High Light: | SSL-16HD,CE Certificate Scissor Boom Lift,15.8m Working Height Boom Lift |
||
|---|---|---|---|
Skyboom Electrical Scissor Lift
| Model | SSL-16HD |
| Working height maximum(A) | 15.8m |
| Platform height maximum(B) | 13.8m |
| length-stowed | 2.83m |
| Width-stowed | 1.42m |
| Height -stowed -folding rails | 2.62m |
| Height (rails down) | 2.12m |

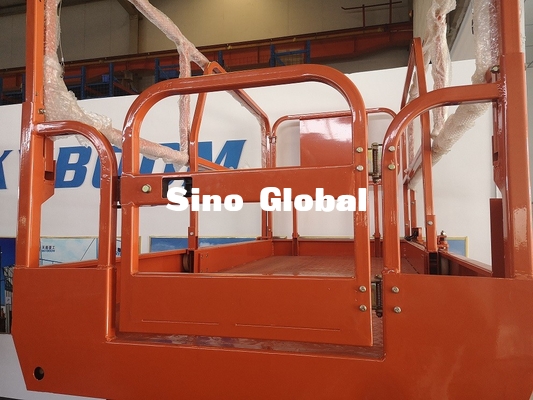

| Platform size (L*W) | 2.66m x 1.12m |
| Slide-out platform extension desk | 0.9m |
| Wheel base | 2.22m |
| Ground clearance (stowed) | 0.08m |
| With pothole guards deployed | 0.02m |
| Load capacity | 260kg |
| Max plateform occupancy (indoor/outdoor) | 2 person / 1 person |
| Drive speed (stowed) | 3.5km/h |
| Drive speed (raised) | 0.8km/h |
| Gradeability ( stowed) | 25% |
| Turning radius (inside) | 0 |
| Turning radius (outside) | 2.59m |
| Working slope maximum | 1.5°/3° |

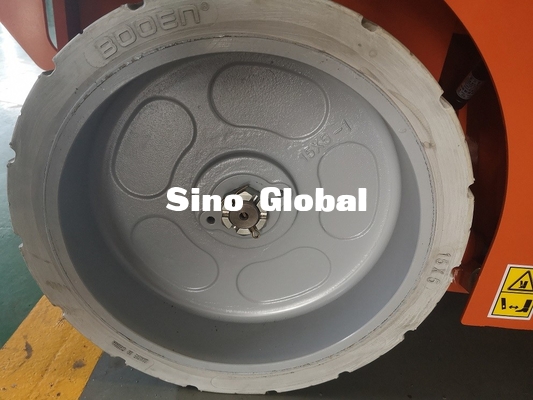

| Tyres | ￠381×127mm |
| Drive & lifting motor | |

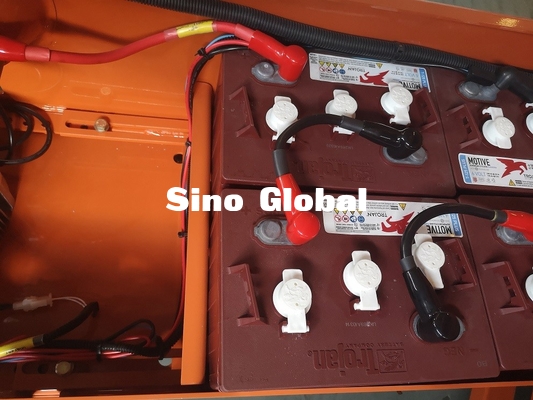

| Battery | 4*6V/300Ah |
| Integrated charger | 24V/25A |
| Weight | 3350kg |
