Product Details:
|
| Model: | HBT8018C-Model 2018 | Color: | Yellow And Red |
|---|---|---|---|
| Weight: | 7300 Kg | Dimensions: | 7330mm × 2125mm × 2685mm |
| Type: | S-Valve | Engine Power: | 180 KW |
| High Light: | Used Sany Trailer Mounted Concrete Pump 180KW,Used Sany Trailer Mounted Concrete Pump HBT8018C,Used Trailer Mounted Concrete Pump |
||

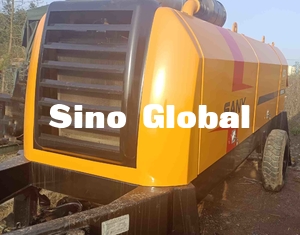

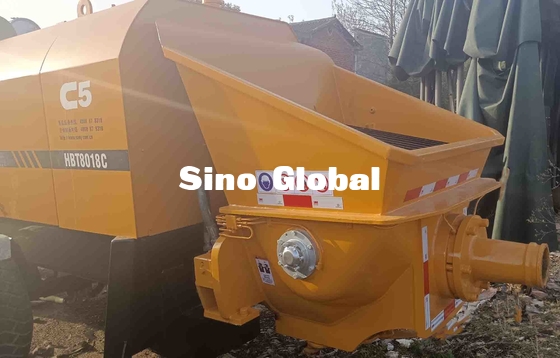

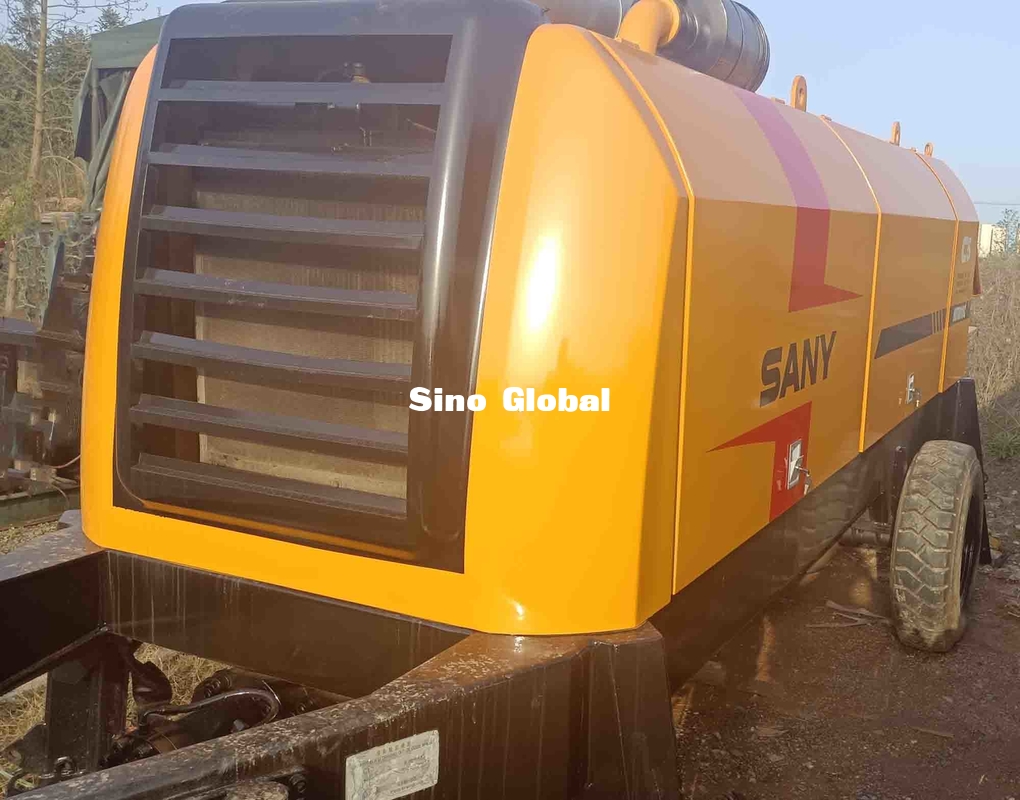

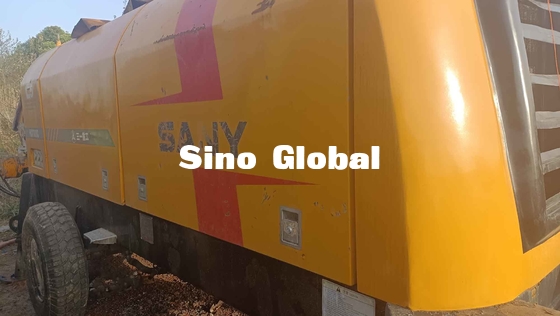

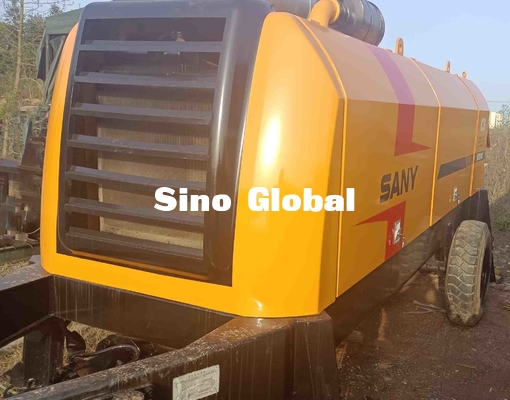

Used Sany Yellow Concrete Trailer Pump Model 2018
Sany Proudct Discription:
| Model | Sany HBT8018 C5 2018 |
| Original | China |
| Color | Yellow and Red |
| Max.delivery pressure(theoretical) Low pressure/High pressure(Mpa) | 10 / 18 |
| Max.concrete output(theoretical) Low pressure/High pressure(m3/h) | 85 / 50 |
| Engine rated power(kw) | 180 |
| Rated Rotary Speed (rpm) | 2200 |
|
Delivery cylinder Bore (mm) *Strok(mm) |
Φ200 × 1800 |
| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1420 |
| Dimension (L*W*H) (mm) |
7330mm × 2125mm × 2685mm |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
| Gross Weight (kg) | 7300 kg |
