Product Details:
|
| Model: | YTQU160 Crawler Crane Model 2012 | Brand: | Yutong |
|---|---|---|---|
| Engine Model: | QSL9-280 | Engine Power: | 209 KW |
| Max Lifting Capacity: | 160 T | Main Boom Length: | 18-81m |
| Weight: | 45 T | Year: | 2012 |
| High Light: | 209KW Crawler Crane Used,160 Ton Crawler Crane Used,Yutong Crawler Crane Used |
||

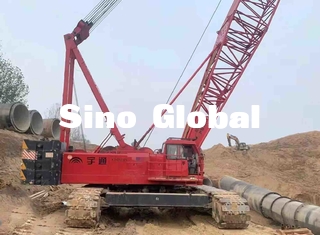

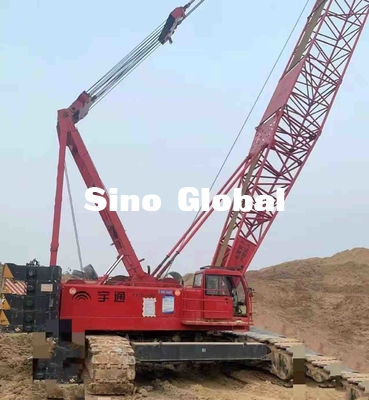

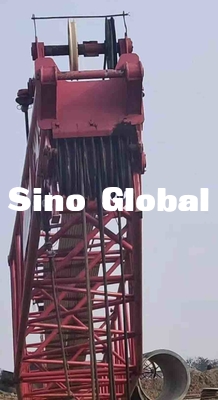

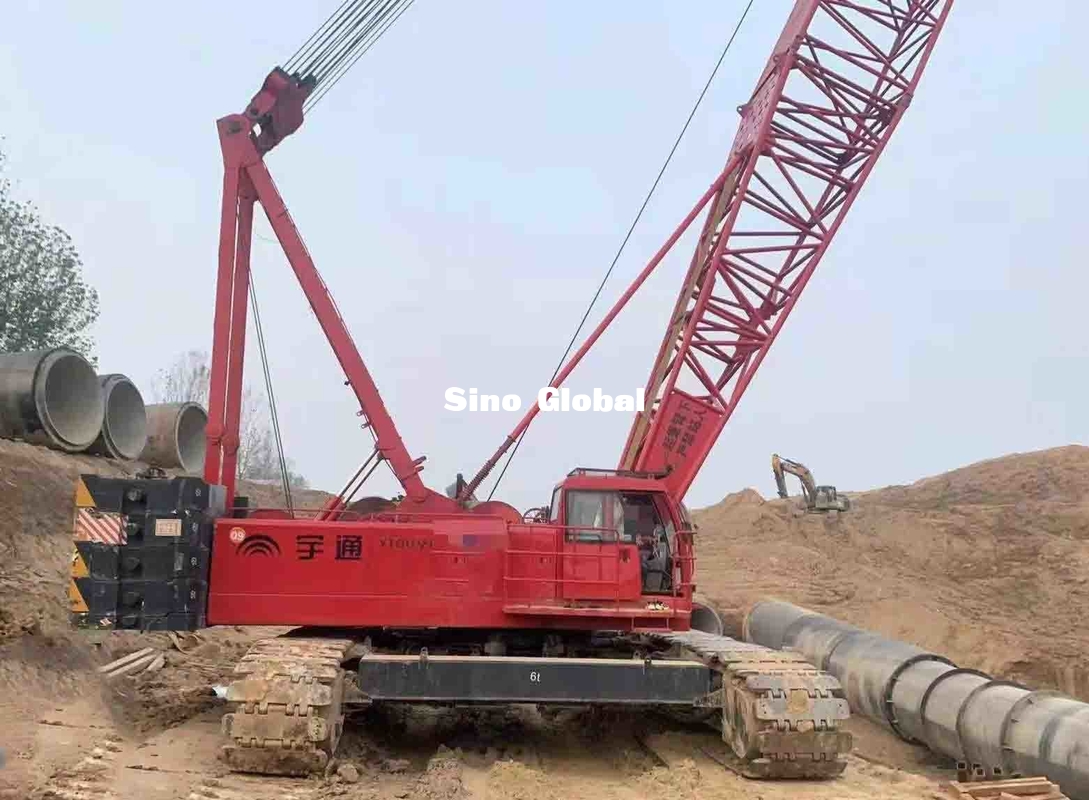

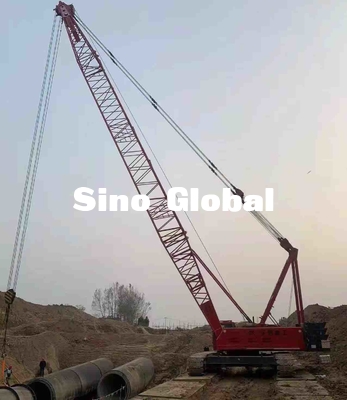

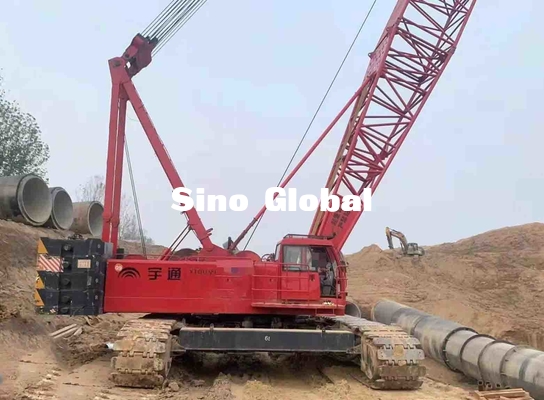

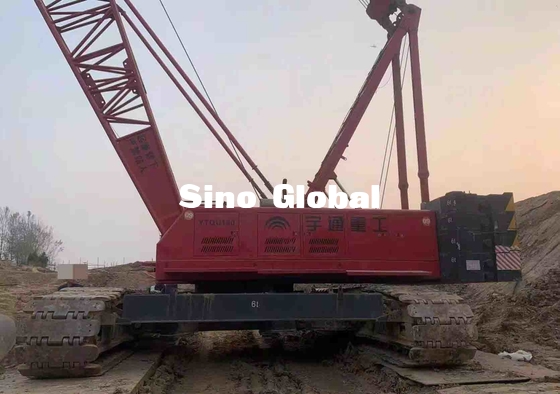

Used Yutong YTQU160 Crawler Crane Model 2012
|
Product Discription
|
||
| Yutong YTQU160 | Unit | YTQU160 |
| Understructure width | Mm | 6750 |
| Crawler belt length | Mm | 8400 |
| Crawler belt with | Mm | 1100 |
| Upperstructure width | Mm | 3380 |
| Distance between the center and the external edge of driver cab | Mm | 1725 |
| Rotation speed | Mm | 2.2 |
| Travelling speed | Km/h | 1.35 |
| Gradeablity | % | 30 |
| Engine model | QSL9-280 | |
| Engine power | Kw | 209 |
| Rotation speed of engine | Rpm | 2000 |
| Maximum hoisting capacity | t | 160 |
| Maximum hoisting torque | t.m | 850 |
| Main Boom length | m | 18-81 |
| Luffing angle of main jib | . | 30-80 |
| Rope speed of main winch | m/min | 0-110 |
| Rope speed of auxiliary winch | m/min | 0-110 |
| Luffing rope speed | T | 2*22 |
| Gross weight(basic jib+crane hook) | t | 155 |
| Counter weight | t | 56 |
| Maximum unit transport weight | t | 45 |
| Transportation dimension(L*W*H) | mm | 10420*3380*3295 |
| Ground pressure(basic jib+crane hook) | 0.1 | |
