Product Details:
|
| Model: | ZCC3000 Zoomlion | Max Lifting Capacity: | 300 T |
|---|---|---|---|
| Max. Lifting Moment: | 1500t.m | Max Lifting Height: | 93/106.5m |
| Engine Brand: | Weicai | Engine Power: | 247/1900 Kw/rpm |
| Weight: | 43.5 T | Dimensions: | 13.7 X 3.3 X 3.22m |
| High Light: | Used Crawler Crane 300 Tons,ZCC3000 Used Crawler Crane,Used 300 ton crawler crane |
||

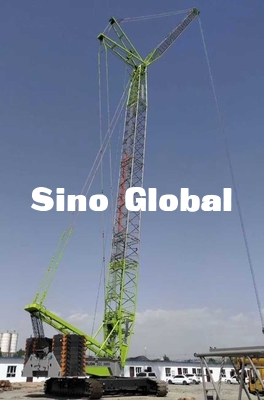

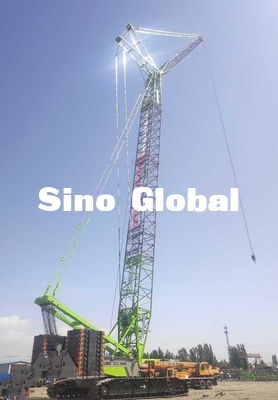

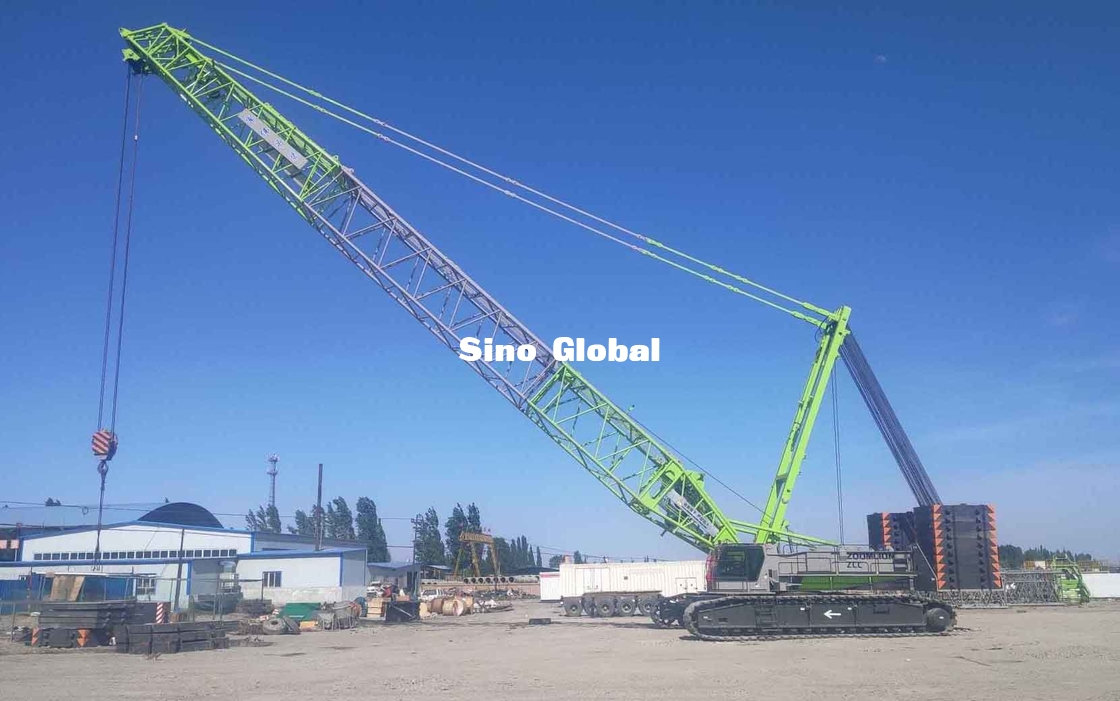

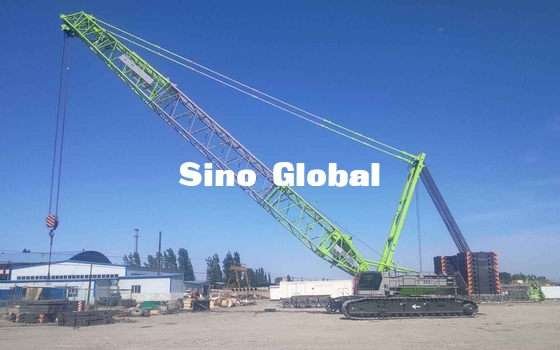

Used Zoomlion 300 tongs ZCC3000 Crawler Crane Model 2020
| Product Discription | |||
| Zoomlion ZCC3000 | Unit | Value | |
| Main boom | Max. lifting capacity × radius | t×m | 300×5 |
| Main boom length | m | 24～93 | |
| Light main boom | Max. lifting capacity × radius | t×m | 110×11 |
| Main boom length | m | 67.5～106.5 | |
| Fixed jib | Max. lifting capacity × radius | t×m | 130×9 |
| Fixed jib length | m | 9～36 | |
| Main boom length (with fixed jib) | m | 24～81 | |
| Max. length of main boom + fixed jib | m | 81+9,66+36 | |
| Fixed jib angle | ° | 10°,20°,30° | |
| Luffing jib | Max. lifting capacity × radius | t×m | 110×12 |
| Luffing jib length | m | 24～66 | |
| Main boom length (with luffing jib) | m | 24～60 | |
| Max. length of main boom + luffing jib | m | 60+66 | |
| Main boom angle | ° | 85°,75°,65° | |
| Speed of winch | Speed of hoisting winch 1 | m/min | 120 |
| Speed of hoisting winch 2 | m/min | 116 | |
| Speed of derricking winch | m/min | 2×50 | |
| Parameters of the whole machine | Slewing speed | rpm | 0～1 |
| Traveling speed | km/h | 0～1 | |
| Rear counterweight | t | 100 | |
| Central counterweight | t | 32 | |
| Max. transport weight of a single component | t | 43.5 | |
| Total weight with main boom | t | 242 | |
| Average ground pressure | Mpa | 0.142 | |
| Max. dimensions for transport (length × width × height) | m | 13.7×3×3.22 | |
| Engine | Manufacturer / Model | WeiChai / WP10G336E344 | |
| Rated power / rotational speed | kw/rpm | 247/1900 | |
| Max. output torque / rotational speed | Nm/rpm | 1550/1400 | |
