Product Details:
|
| Model: | SCC2500C Model 2013, Sany | Color: | Yellow And Red |
|---|---|---|---|
| Max Lifting Capacity: | 250 T | Min Working RadiusRadius: | 4m |
| Engine: | 242 Kw | Weight: | 59 T |
| Boom Length: | 16.5m-91.5m | Dimensions: | 13.7m*3.4m*3.4m |
| Highlight: | Used Sany Crawler Crane 250 Ton,SCC2500C Used Sany Crawler Crane 250 Ton,242kw Used 250 ton crawler crane |
||

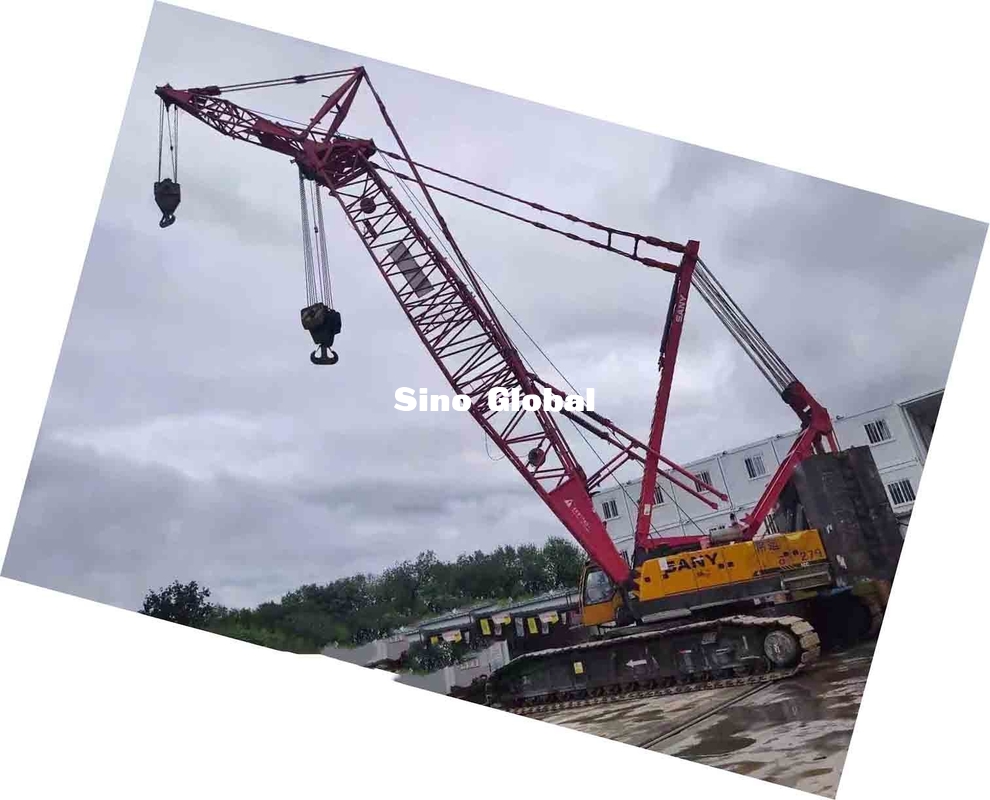

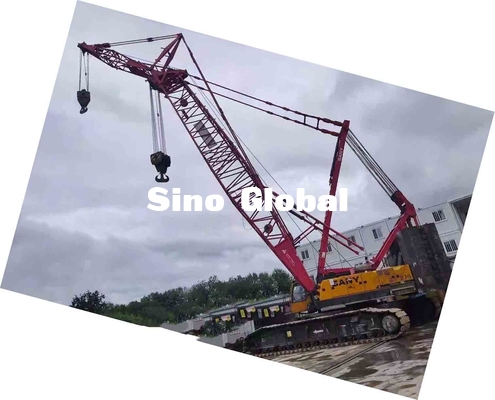

Used Sany 250 tons SCC2500C Crawler Crane Model 2013
| Product Discription | ||
| Item | Unit | Value |
| Lifting | Max. Lifting Weight | 250 t |
| Min. Working Radius | 4 m | |
| Power | Engine Capacity: | 242 kW |
| Cummins 6 cylinder QSL9 Turbo Diesel | ||
| Speed | Max. Speed | 0 ~ 1.04 / 0 ~ 0.51 km/h |
| Boom | Boom Length (min) | 16.5 m |
| Boom Length (max) | 91.5 m | |
| Weight | Max Transportation Weight | 59 t |
| Max Transportation Size | 13.7 x 3.4 x 3.4 m | |
| Jib | Angle between Boom + fixed JIB | 10° ~ 30° |
| Max. Height with Fly JIB | 76.5 + 31 m | |
| Max. Weight with Fly JIB | 2 t | |
| Rope | Wire Rope Diameter | ɸ 22 / 26 mm |
| Wire Rope length of Luffing winch | 350 m | |
