Product Details:
|
| Model: | QUY100, Fuwa 2010 | Color: | Red |
|---|---|---|---|
| Max Lifting Capacity: | 105 T | Main Boom Length: | 16-73m |
| Fly Jib Length: | 13-25 M | Single Rope Lifting Caoacity: | 9 T |
| Gradeability: | 30% | Engine: | 209/2000 KW/r/min |
| Highlight: | QUY100 Used Crawler Crane,Fuwa Used Crawler Crane,Used Fuwa Crawler Crane |
||

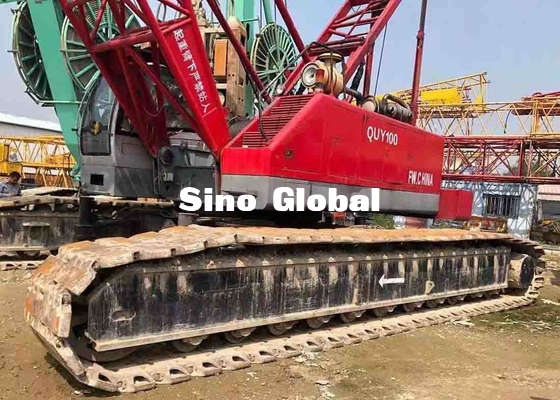

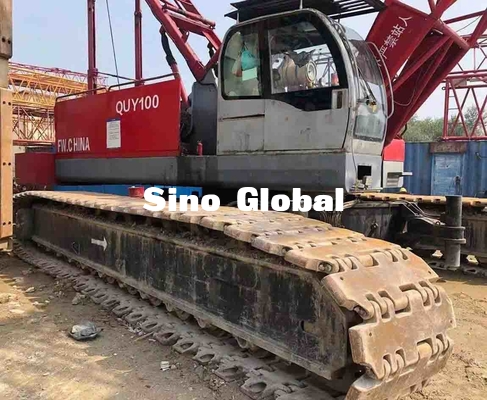

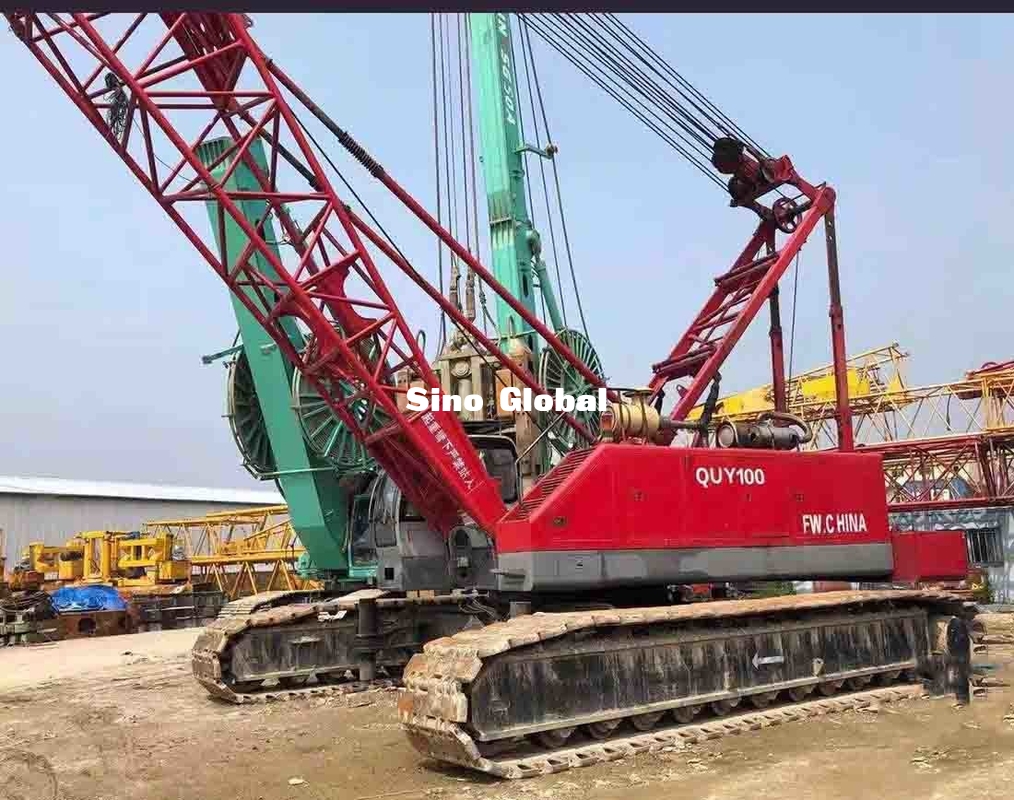

Used Fuwa 100 tons QUY100 Crawler Crane Model 2010
| Product Discription | ||
| Descriptions | Unit | Value |
| Max rated lifting capacty | t | 105 |
| Main boom length | m | 16~73 |
| Fly jib length | m | 13~25 |
| Main Beom length+Flyjib | m | 61+25 |
| Main boom angle | ° | 30~80 |
| Hook biocks (opional) | t | 120/50/25/9 |
| Man winch hoist,lower(rope dia.φ26) | m/min | Hig 114/57; Low 84/41 |
| Aux wnch host,lower(rope dia.φ26) | m/min | Hig 114/57; Low 84/41 |
| Boom hoistt(rope dia.φ20) | m/min | 54 |
| Swing spead | r/min | 0~1.96 |
| Traval spead | kmh | 0.9~1.3 |
| Mtain hoist reevings | 12 | |
| Single rope lifting capacity | t | 9 |
| Gradeabiity | % | 30 |
| Enigne | KW/r/min | 209/2000(Import) |
| Swing radius | mm | 5227 |
| Overall dimension | mm | 8850*3320*3330 |
| Grane mass(with basic boom.80t hock) | 1 | 115 |
| Grourd bearing pressure | MPa | 0.07 |
| Counterweight | t | 45 |
