Product Details:
|
| Model: | Sany SCC1500C 2012 | Color: | Red And Yellow |
|---|---|---|---|
| Max. LiftingWeight: | 150 Tons | Engine Power: | 242 KW |
| Boom Length: | 18-81m | Max Weight: | 50.2 Tons |
| Dimensions: | 10.23 X 3.47 X 3.5 M | Max. Speed: | 0.12 ~ 0 / 0 ~ 0.6 Km/h |
| High Light: | Used Sany Crawler Crane 150 Ton,242kW Used Sany Crawler Crane 150 Ton,SCC1500C Used sany crane 150 ton |
||

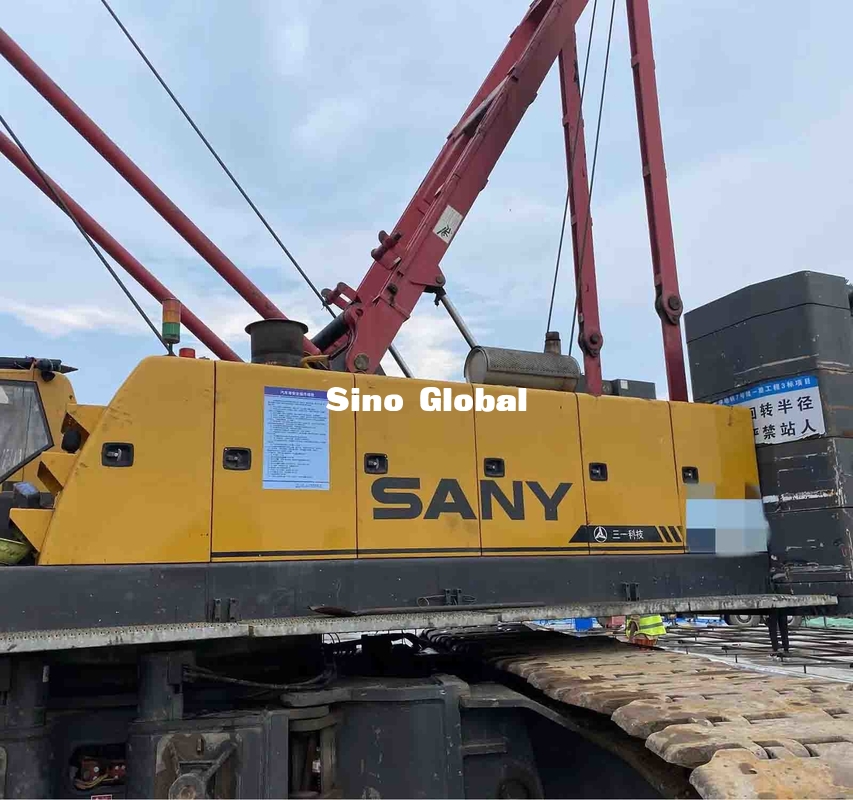

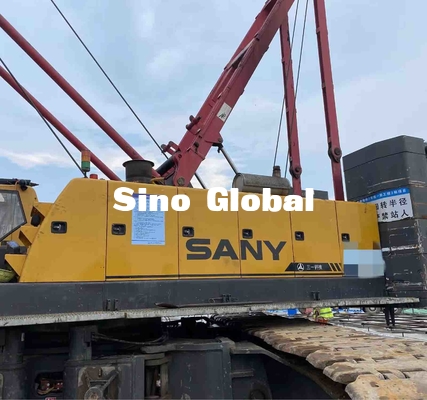

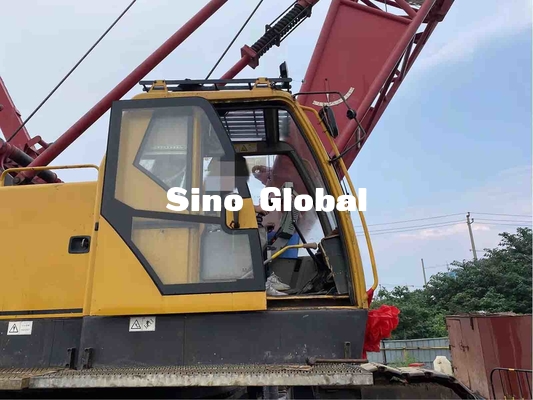

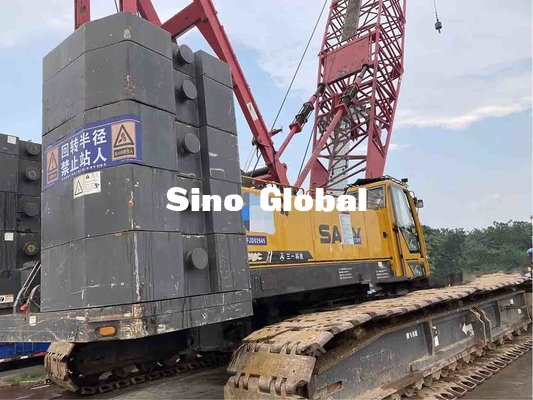

Used Sany 150 tons SCC1500C Crawler Crane Model 2012
| Product Discription | ||
| Item | Unit | Value |
| Lifting | Max. Lifting Weight | 150 t |
| Min. Working Radius | 5 m | |
| Power | Engine Capacity: | 242 kW |
| Cummins 6 cylinder QSL9 Turbo Diesel | ||
| Speed | Max. Speed | 0.12 ~ 0 / 0 ~ 0.6 km/h |

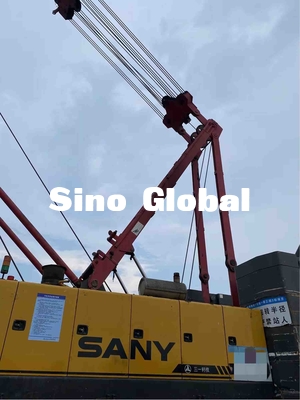

| Boom | Boom Length (min) | 18 m |
| Boom Length (max) | 81 m | |
| Weight | Max Transportation Weight | 50.2 t |
| Max Transportation Size | 10.23 x 3.47 x 3.5 m | |
| JIB | Angle between Boom + fixed JIB | 15° ~ 30° |
| Max. Height with Fly JIB | 75 + 12 m | |
| Max. Weight with Fly JIB | 3 t | |

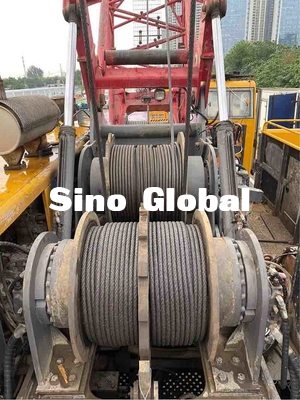

| Rope | Wire Rope Diameter | ɸ 20 / 26 mm |
| Wire Rope length of Luffing winch | 320 m | |
