Product Details:
|
| Model: | Sany HBT100C-2118DIII Model 2015 | Color: | Yellow And Red |
|---|---|---|---|
| Weight: | 6900kg | Dimensions: | 7390mm × 2075mm × 2685mm |
| Engine Power: | 181KW | Type: | S-Valve |
| High Light: | 181KW Used Trailer Mounted Concrete Pump,S Valve Trailer Mounted Concrete Pump Used |
||

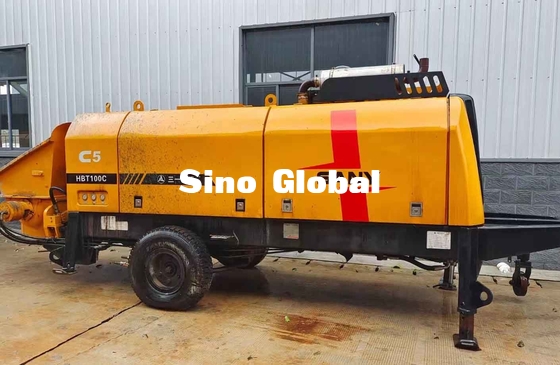

Used Sany Yellow HBT100C Concrete Trailer Pump Model 2015
Proudct Discription:
| Model | Sany HBT100C-2118DIII |
| Place of Production | China |
| Color | Yellow and Red |
| Max.delivery pressure(theoretical) Low pressure/High pressure(Mpa) | 10 / 18 |
| Max.concrete output(theoretical) Low pressure/High pressure(m3/h) | 105 / 70 |
| Engine rated power(kw) | 181 |
| Rated Rotary Speed (rpm) | 2200 |
|
Delivery cylinder Bore (mm) *Strok(mm) |
Φ200 × 1800 |
| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1420 |
| Dimension (L*W*H) (mm) |
7390mm × 2075mm × 2685mm |
| Gross weight (kg) | 6900 kg |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
