Product Details:
|
| Model: | Sany HBT80C Trailer Pump Model 2017 | Color: | Yellow And Red |
|---|---|---|---|
| Weight: | 7300kg | Type: | S-Valve |
| Dimensions: | 7030 Mm × 3360 Mm × 3304 Mm | Engine Rated Power: | 180KW |
| High Light: | 2nd Hand Concrete Trailer Pump,180KW Concrete Trailer Pump,2200rpm Concrete Trailer Pump |
||

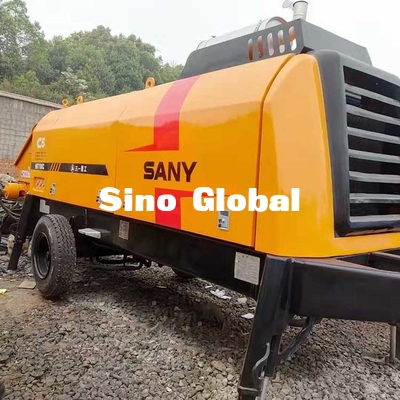

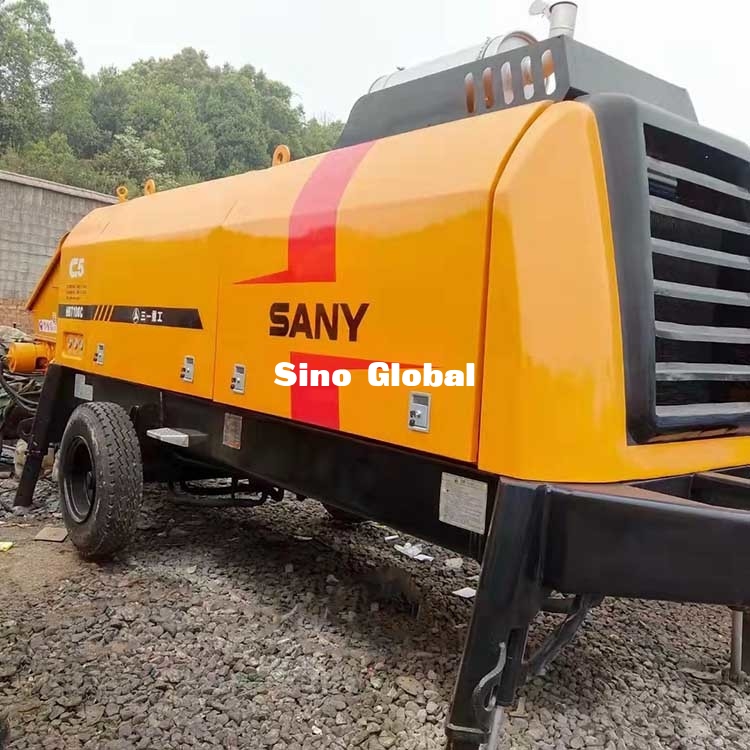

Used Sany HBT80C Trailer Pump Model 2017
Sany HBT80C Trailer Pump Discription
| Model | HBT8018C-5S(T3) |
| Place of Production | P.R China |
| Max.delivery pressure(theoretical) Low pressure/High pressure | 10 / 18 Mpa |
| Max.concrete output(theoretical) Low pressure/High pressure | 85 / 50 m3/h |
| Engine rated power | 180 kw |
| Rated Rotary Speed | 2200 rpm |
|
Delivery cylinder Bore (mm) *Strok(mm) |
Φ200 × 1800 mm |
| Hopper capacity (m3)* Feeding heigh(mm) | 0.7 × 1420 |
| Dimension (L*W*H) (mm) |
7330 × 2125 × 2685mm |
| Gross weight (kg) | 7300 |
| Max. aggregate size: Φ150 mm delivery pipe (mm) | 50 |
| Max. aggregate size: Φ125 mm delivery pipe (mm) | 40 |
| Type | S-Valve |
| Slump of concrete (mm) | 100 ～ 230 |
