Product Details:
|
| Model Number: | QY30K5 | Max Lifting Capacity: | 30 T |
|---|---|---|---|
| Boom Color: | Yellow | Max Lifting Height: | 48m |
| Weight: | 30,000 Kg | Engine Rated Power: | 206/2200, Kw/(r/min) |
| Dimension: | 12570*2500*3390 | Engine Model: | SC8DK280Q3 |
| High Light: | XCMG Used Truck Crane,30T Used Truck Crane,XCMG used 30 ton crane |
||

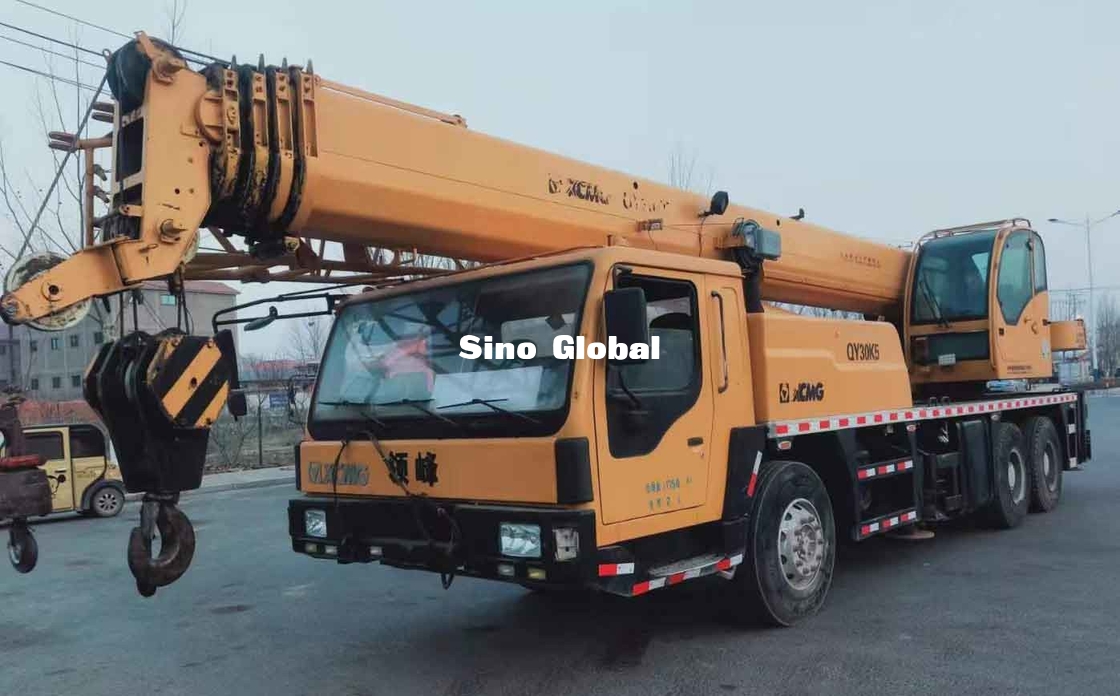

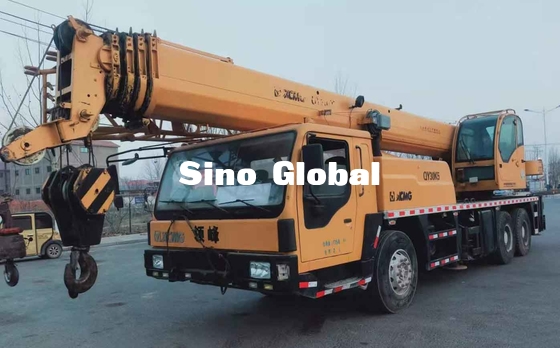

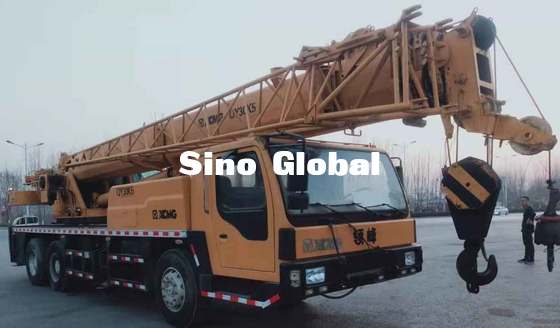

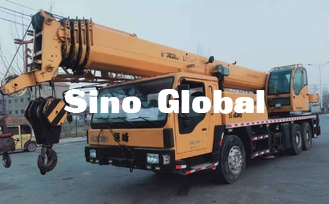

Used XCMG QY30K5 Truck Crane Model 2011
XCMG QY30K5 Description
| Description | Unit | Parameter value |
| Overall length | mm | 12570 |
| Overall width | mm | 2500 |
| Overall Height | mm | 3390 |
| Wheel Base | mm | 5025+1350 |
| Track | mm | 2074/1834/1834 |
| Color | Yellow | |
| Total vehicle mass in travel configuration | kg | 32400 |
| Axle load Front axle | kg | 7600 |
| Axle load Rear axle | kg | 24800 |
| Engine Model | SC8DK280Q3 | |
| Engine rated power | kw/(r/min) | 206/2200 |
| Engine rated torque | N.m/(r/min) | 1112/1400 |
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 22 |
| Min. ground clearance | mm | 291 |
| Max. grade ability | % | 40 |
| Approach angle | ° | 19 |
| Departure angle | ° | 13 |
| Braking distance (at 30 km/h, full load ) | m | ≤10 |
| Oil consumption per 100km | L | 40 |
