Product Details:
|
| Model: | QY50V532 Zoomlion 2013 | Crane Jib: | Five Arm |
|---|---|---|---|
| Type: | Straight Arm | Max Lifting Capacity: | 50 T |
| Dimensions: | 13300mm×2750mm×3650mm | Engine Model: | WP10.336 |
| Rated Power: | 247/2200 KW/r/min | Max. Output Torque: | 1250/1200~1600 N.m/r/min |
| Highlight: | Zoomlion Used Truck Crane,Used Truck Crane 50 Ton,QY50V532 Truck Crane 50 Ton Used |
||

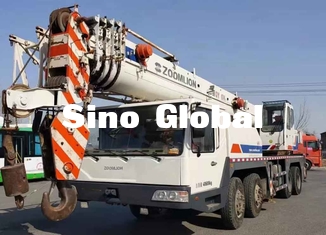

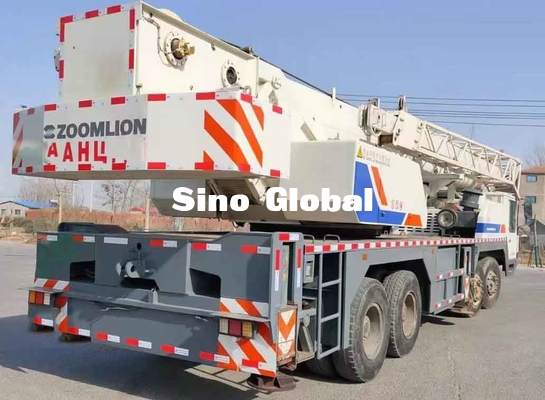

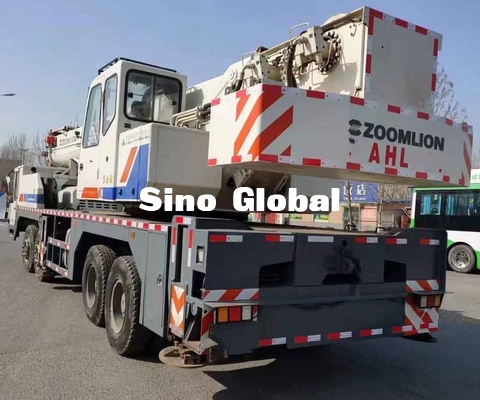

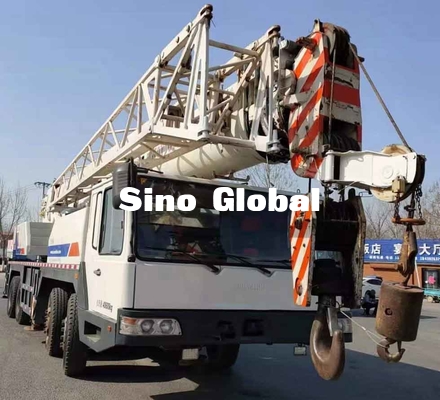

Used Zoomlion 50 ton QY50V532 Truck Crane Model 2013
Product Discription: QY50V532 Parameters
| Item: QY50V532 | Value | Remarks | ||
| Working performance specification | Max. rated total lifting capacity kg | 50000 | ||
| Max. load moment of basic boom kN.m | 1764 | 1470(Outrigger beam half extended) | ||
| Max. load moment with max. main boom length kN.m | 940.8 | 793.8(Outrigger beam half extended) | ||
| Max. lifting height of basic boom m | 11.6 | |||
| Max. lifting height of main boom m | 42.1 | Deformation of boom is not taken into consideration | ||
| Max. lifting height of fly jib m | 58.3 | |||
| Working speed | Max. speed of single rope on main winch m/min | 130 | The 4 th layer of drum | |
| Max. speed of single rope onauxiliary winch m/min | 72 | The 2 nd layer of drum | ||
| Derricking time of boom s | 50 | |||
| Telescopic time of boom s | 95 | |||
| Slewing speed r/min | 0~2 | |||
| Traveling specification | Max. traveling speed km/h | 76 | ||
| Max. gradeability % | 32 | |||
| Min. turning circle diameter m | 24 | |||
| Min. ground clearance mm | 260 | |||
| Limits for exhaust pollutants and smoke | Comply with related standards | |||
| Oil consumption per hundred kilometers L | 48 | |||
| Mass specification | Deadweight of crane in traveling condition kg | 41000 | ||
| Complete vehicle kerb mass kg | 40470 | |||
| Front axle load kg | 17200 | |||
| Rear axle load kg | 23800 | |||
| Dimension specification | Overall dimensions(L×W×H)mm mm |
13300×2750×3650 | ||
| Base on outriggers m | 5.92 m | |||
| Distance between outriggers m | 6.90m | |||
| Main boom length m | 11.1~42.0m | |||
| Main boom angle° | -2~80 | |||
| Fly jib length m | 9.5, 16 | |||
| Offset angle of fly jib ° | 0 , 30 | |||
| Chassis | model | ZLJ5414 | ||
| class | III | |||
| Engine | model | WP10.336 | QSL 325 | |
| Rated power KW/r/min | 247/2200 | 242/2200 | ||
| Max. output torque Nm/r/min | 1250/1200~1600 | 1424/1500 | ||
| Manufacturer | Zoolion China |
|||
