Product Details:
|
| Model: | Sany STC1000 2018 | Color: | Yellow And Red |
|---|---|---|---|
| Max Lifting Capacity: | 100T | Dimensions: | 15961mm*3000mm*3907mm |
| Overall Weight: | 55000kg | Aele Load-1,2,3: | 24000kg |
| Axle Load-3,4,5: | 31000kg | Rated Power: | 350kw/1800 Rpm |
| Rated Torque: | 2300N.m/1100 Rpm | Boom Section: | 5 |
| High Light: | STC1000 Used Truck Crane,100Tons Used Truck Crane,100 ton truck crane Used |
||

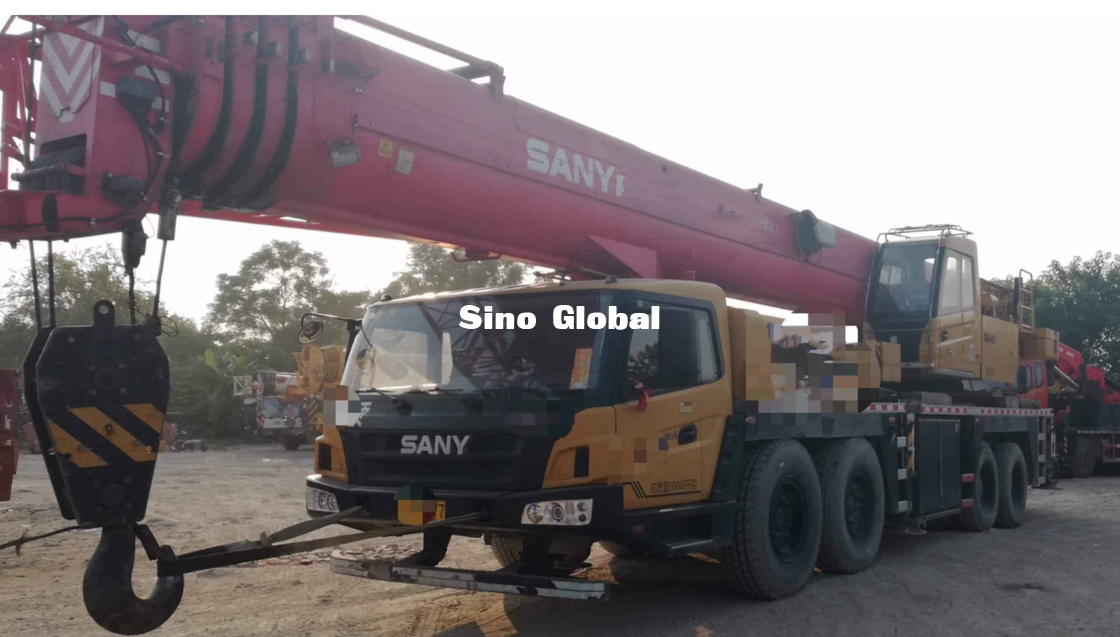

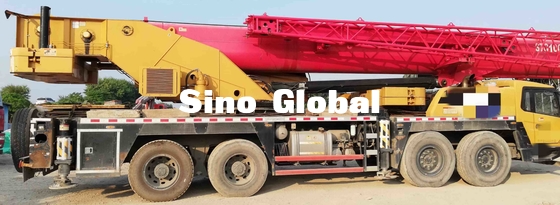

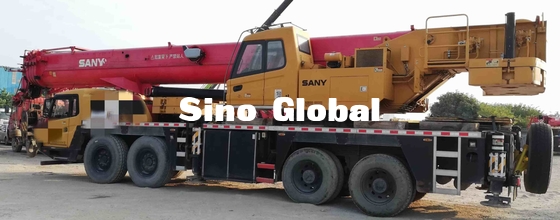

Used Sany 100 tons STC1000 Truck Crane Model 2018
| Sany STC1000 | Item | Parameter | |
| Capacity | Max. lifting capacity | 100 t | |
|
Dimensions |
Overall length | 15961 mm | |
| Overall width | 3000 mm | ||
| Overall height | 3907 mm | ||
|
Axle distance |
Axle-1,2 | 1450 mm | |
| Axle-2,3 | 2400 mm | ||
| Axle-3,4 | 1800 mm | ||
| Axle-4,5 | 1450 mm | ||
| Axle-5,6 | 1500 mm | ||
|
Weight |
Overall weight | 55000 kg | |
|
Axle load |
Axle load-1,2,3 | 24000 kg | |
| Axle load-3,4,6 | 31000 kg | ||
| Rated power | 350 kW/ 1800 rpm | ||
| Rated torque | 2300 N.m/ 1100 rpm | ||
|
Traveling |
Max.traveling speed | 80 km/h | |
| Turning radius | Min.turning radius | 12 m | |
| Wheel formula | 12× 6 | ||
| Min.ground clearance | 302 mm | ||
| Approach angle | 19 ° | ||
| Departure angle | 14 ° | ||
| Max.gradeability | 40% | ||
| Fuel consumption per 100km | ≤ 60 L | ||
|
Main Performance Data |
Temperature range | – 20 ℃ ~ +46℃ | |
| Min.rated range | 3 m | ||
| Tail slewing radius of swingtable | 4.56 m | ||
| Boom section | 5 | ||
| Boom shape | U-shaped | ||
|
Max.lifting moment |
Base boom | 3600 kN·m | |
| Full-extend boom | 1920 kN·m | ||
| Full-extend boom+jib | 1000 kN·m | ||
|
Boom length |
Base boom | 13.5 m | |
| Full-extend boom | 52 m | ||
| Full-extend boom+jib | 70 m | ||
| Outrigger span (Longitudinal×Transversal) | 7.56 × 7.6 m | ||
| Jib offset | 0 °, 15 °, 30 ° | ||
|
Working speed |
Max.single rope lifting speed of main winch (no load) | 135 m/min | |
| Max.single rope lifting speed of auxiliary winch (no load) | 123 m/min | ||
| Full extension/retraction time of boom | 120 / 100 s | ||
| Full lifting/descending time of boom | 60 / 90 s | ||
| Slewing speed | 2 r/min | ||
|
Aircondition |
Aircondition in up cab | Cooling/Heating | |
| Aircondition in low cab | Cooling/Heating | ||
