Product Details:
|
| Model: | Sany STC200C5 2018 | Color: | Yellow And Red |
|---|---|---|---|
| Max Lifting Capacity: | 20 T | Dimensions: | 12490mm*2500mm*3800mm |
| Axle Distance: | 4225mm/1350mm | Weight: | 26400kg |
| Rated Power: | 213KW/2100 (r/min) | Rated Torque: | 1050N.M (1200-1400) Rpm |
| Max Traveling Speed: | 80km/H | Turing Radius: | 10m |
| Boom Section: | 4 | Full-extend Bom: | 33m |
| High Light: | 20Ton Used Lorry Crane,Sany Used Lorry Crane,STC200C5 Used 20 Ton Truck Crane |
||

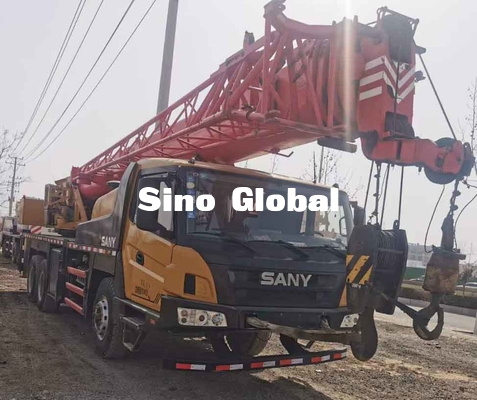

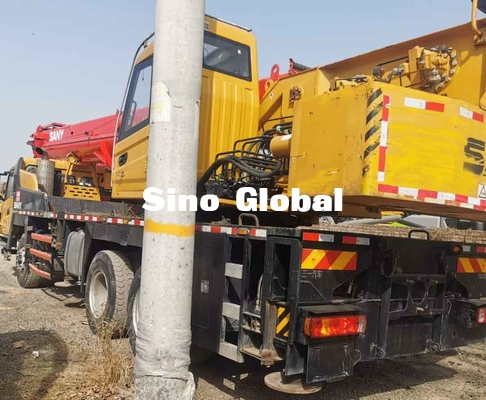

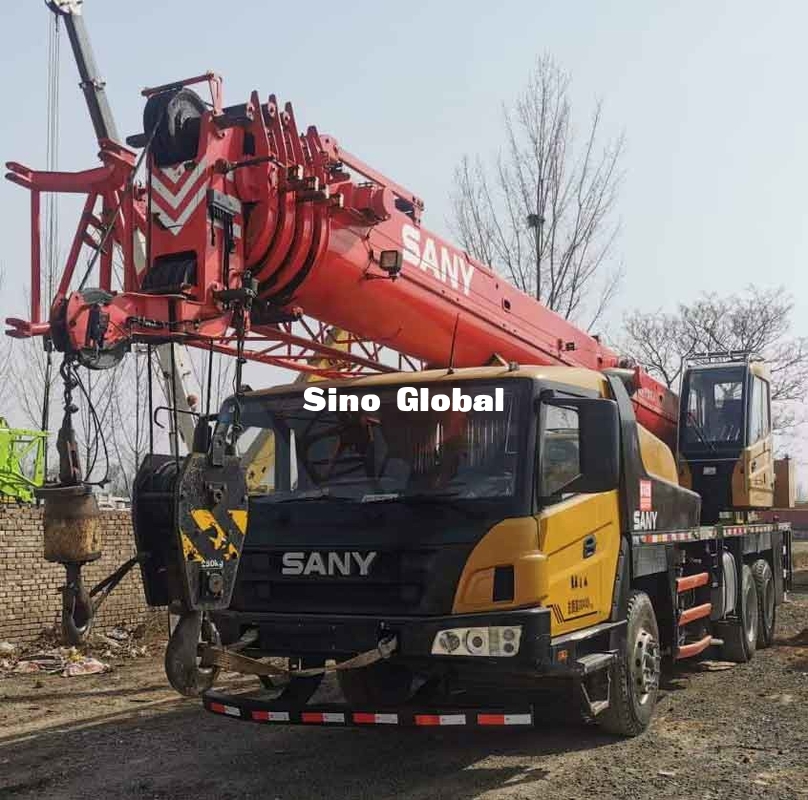

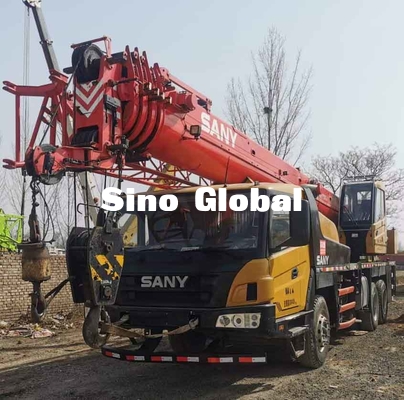

Used Sany 20 ton STC200C5 Truck Crane Model 2018
| Sany STC200C5 | Item | Parameter | |
| Capacity | Max. lifting capacity | 20 t | |
|
Dimensions |
Overall length | 12490mm | |
| Overall width | 2500mm | ||
| Overall height | 3800mm | ||
| Axle distance | 4225mm/1350mm | ||
|
Weight |
Overall weight | 26400kg | |
|
Axle load |
Axle 1 | 6850kg | |
| Axle 2,3 | 19550kg | ||
| Rated power | 213kW/2100(r/min) | ||
| Rated torque | 1050N.m/(1200~1400)rpm | ||
|
Traveling |
Max.traveling speed | 80km/h | |
| Turning radius | Min.turning radius | 10m | |
| Min.ground clearance | 220mm | ||
| Approach angle | 18º | ||
| Departure angle | 11º | ||
| Max.gradeability | 35% | ||
| Fuel consumption per | 35L | ||
|
Main performance parameters |
Min.rated range | 3m | |
| Tail slewing radius of swingtable | 3.0m | ||
| Boom section | 4 | ||
| Boom shape | Hexagon | ||
|
Max.lifting moment |
Base boom | 860kN.m | |
| Full-extend boom | 470kN.m | ||
| Full-extend boom+jib | 313kN.m | ||
|
Boom length |
Base boom | 10.6m | |
| Full-extend boom | 33m | ||
| Full-extend boom+jib | 41.5m | ||
| Outrigger span (Longitudinal×Transversal) | 5.1m×6.0m | ||
|
Working speed |
Max.single rope lifting speed of main winch (no load) | 110m/min | |
| Max.single rope lifting speed of auxiliary winch (no load) | 110m/min | ||
| Full extension/retraction time of boom | 60s/40s | ||
| Full lifting/descending time of boom | 60s/50s | ||
| Slewing speed | (0～2.0)r/min | ||
|
Aircondition |
Aircondition in up cab | Cooling | |
| Aircondition in low cab | Cooling and heating | ||
