Product Details:
|
| Capacity: | 75t | ALL Weight: | 46000kg |
|---|---|---|---|
| Total Dimens,mmions: | 14100*2750*3850 | Rated Power: | 275 KW/2100 Rpm |
| Rated Torque: | 1550 N.m/1200 Rpm | Max.traveling Speed: | 80 Km/h |
| Fuel Consumption Per 100km: | ≤ 55 L | Boom Section: | 5 |
| Highlight: | Used Truck Mounted Knuckle Boom Cranes,5 Boom 75 Ton Truck Crane Used,75Ton used boom trucks |
||

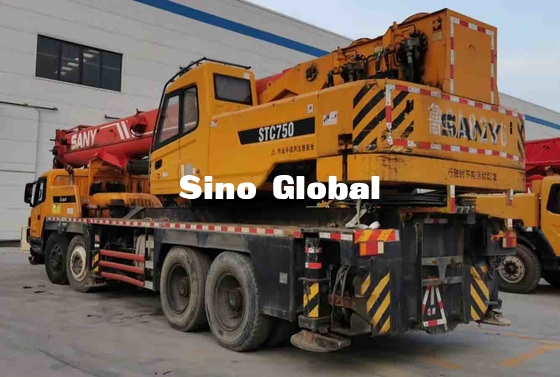

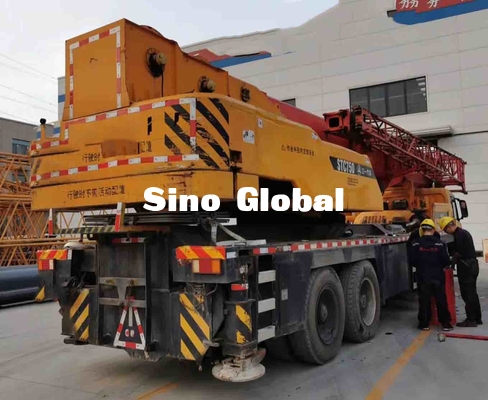

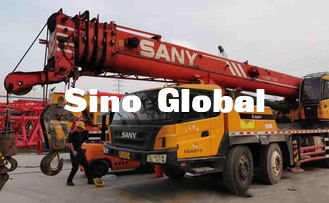

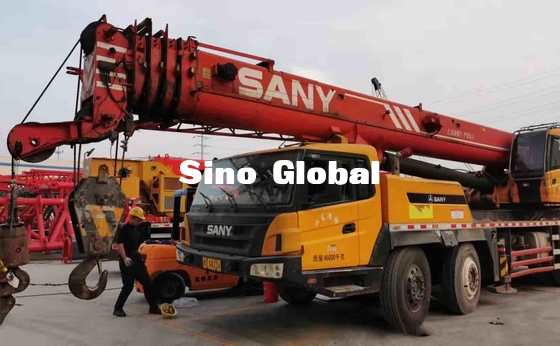

Used Sany 75 Tons Truck Crane-Model 2014
| Type | Item | Parameter | |
| Capacity | Max. lifting capacity | 75 t | |
|
Dimensions |
Overall length | 14100 mm | |
| Overall width | 2750 mm | ||
| Overall height | 3850 mm | ||
|
Axle distance |
Axle-1,2 | 1520 mm | |
| Axle-2,3 | 4400 mm | ||
| Axle-3,4 | 1350 mm | ||
|
Weight |
Overall weight | 46000 kg | |
|
Axle load |
Axle load-1,2 | 20000 kg | |
| Axle load-3,4 | 26000 kg | ||
| Rated power | 275 kW/2100 rpm | ||
| Rated torque | 1550 N.m/1200 rpm | ||
|
Traveling |
Max.traveling speed | 80 km/h | |
|
Turning radius |
Min.turning radius | 12 m | |
| Min.turning radius of boom head | 15.6 m | ||
| Wheel formula | 8 × 4 | ||
| Min.ground clearance | 230 mm | ||
| Approach angle | 20 ° | ||
| Departure angle | 12 ° | ||
| Max.gradeability | 37% | ||
| Fuel consumption per 100km | ≤ 55 L | ||
|
Main Performance Data |
Temperature range | – 20 ℃ ~ +45 ℃ | |
| Min.rated range | 3 m | ||
| Tail slewing radius of swingtable | 4.116 m | ||
| Boom section | 5 | ||
| Boom shape | U-shaped | ||
|
Max.lifting moment |
Base boom | 2560.2 kN·m | |
| Full-extend boom | 1254.4 kN·m | ||
| Full-extend boom+jib | 414.9 kN·m | ||
|
Boom length |
Base boom | 11.8 m | |
| Full-extend boom | 45.0 m | ||
| Full-extend boom+jib | 61 m | ||
| Outrigger span (Longitudinal×Transversal) | 6.1 × 7.6 m | ||
| Jib offset | 0 °, 15 °, 30 ° | ||
|
Working speed |
Max.single rope lifting speed of main winch (no load) | 130 m/min | |
| Max.single rope lifting speed of auxiliary winch (no load) | 130 m/min | ||
| Full extension/retraction time of boom | 120 / 130 s | ||
| Full lifting/descending time of boom | 80 / 80 s | ||
| Slewing speed | 2.0 r/min | ||
|
Aircondition |
Aircondition in up cab | Cooling and Heating | |
| Aircondition in low cab | Cooling and Heating | ||
