Product Details:
|
| Model: | XGC75, XCMG Model 2018 | Color: | Red |
|---|---|---|---|
| Max Lifting Capacity: | 75 T | Boom Length: | 13-58m |
| Hoist Speed: | 128 M/min | Engine Rated Power: | 199 Kw |
| Max Travel Speed: | 1.2 Km/h | Dimensions: | 12.7m×3.4m×3.4m |
| High Light: | Used Crawler Crane 75 Ton,Used Crawler Crane XGC75,XCMG Crane 75 Ton Used |
||

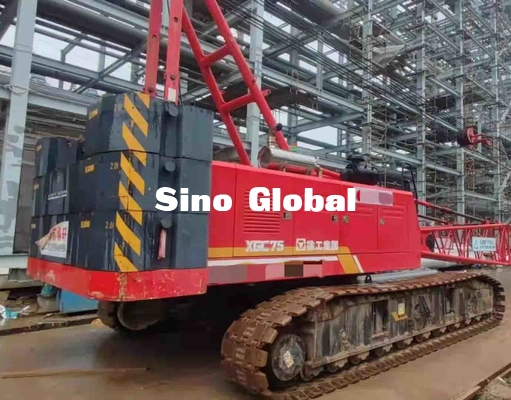

Used XCMG XGC75 Crawler Crane Model 2018
|
Product Discription
|
|||
| XCMG Model | XGC75 | ||
| Item | Unit | Parameter | |
| Max.rated lifting capacity | Basic boom | t | 75 |
| Fixed jib | t | 6.5 | |
| Max. load moment | kN-m | 286 | |
| Main boom length | m | 13-58 | |
| Main boom Luffing angle | ° | -83 | |
| Fixed jib length | m | 7月19日 | |
| Winch max. single line speed( no load,at 5th layer) | m/min | 128 | |
| Boom luffing gear max. single line speed( at 1th layer) | m/min | 70 | |
| Max. swing speed | r/min | 2.4 | |
| Max. travel speed | km/h | 1.2 | |
| Max. grade-ability | % | 30 | |
| Mean ground pressure | MPa | 0.08 | |
| Engine output power | kW | 155 | |
| Gross vehicle mass (including main hook block and 13m boom) | t | 61 t | |
| Max. weight of single unit in travel configuration | t | 37 t | |
| Max. dimension of single unit in travel configuration (L×W×H) | m | 12.7m×3.4m×3.4m | |
