Product Details:
|
| Model: | Zoomlion ZCC800 2013 | Color: | Grey |
|---|---|---|---|
| Main Boom Length: | 13-58m | Rated Power: | 199/1900 KW/r/min |
| Weight: | 72.8 T | Dimensions: | 13500×3400 ×3200mm |
| Exhaust Emission: | National StageⅡ | Engine: | WP10.270N |
| High Light: | 2nd Hand Crawler Crane Zoomlion,ZCC800 2nd Hand Crawler Crane Zoomlion,58m 2nd Hand Zoomlion Crawler Crane |
||

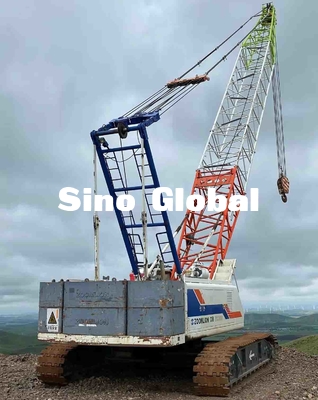

Used Zoomlion ZCC800 Crawler Crane Model 2013
| Product Discription | |||
| Zoomlion ZCC800 Crawler Crane | Unit | Value | |
| Max. lifting capacity × radius | t × m | 80×4 | |
| Max. lifting capacity on fixed jib | t | 7 | |
| Max. lifting capacity of luffing jib | t | 15 | |
| Main boom length | m | 13 - 58 | |
| Fixed jib length | m | 6月18日 | |
| Max. length of main boom with fixed jib | t | 49+18 | |
| Luffing jib length | m | 16m-34m | |
| Max. main boom +max. luffing jib | m | 43.5m+34m | |
| Derricking angle | . | 30 - 80 | |
| Fixed jib angle | . | 10, 30 | |
| Max. rope speed | Hoisting winch 1 | m/min | 125/110 |
| of winches | Hoisting winch 2 | 125 | |
| Derricking winch | 93 | ||
| Slewing speed | rpm | 0-2 | |
| Traveling speed | km/h | 0-1.57 | |
| Max. gradeability | % | 30 | |
| Ground pressure | Mpa | 0.083 | |
| Deadweight | t | 72.8 | |
| Crane counterweight | t | 27 | |
| dimensions(L × W × H) | mm | 13500×5000 (3400) ×3200 | |
| Engine | Model | WP10.270N | |
| Rated power / rotational speed | kW/r/min | 199/1900 | |
| Max. output torque /rotational speed | Nm/r/min | 1270/1200-1500 | |
| Exhaust emission | National StageⅡ | ||
| Distance between track center × crawler contact length × crawler width | mm | 2600 ×5440×800 | |
| 4200 ×5440×800 | |||
